Brother MFC-8480DN - LF2 Film

5-123
Confidential
9.8.64 LF2 Film
(1) Remove the two cup B M3x10 Taptite screws.
(2) Release the two Hooks, and pull up the Upper document sub chute from the ADF chute
ASSY.
(3) Release the two Stoppers of the LF2 film from the back side of the Upper document sub
chute, and remove the LF2 film from the Upper document sub chute. (two locations)

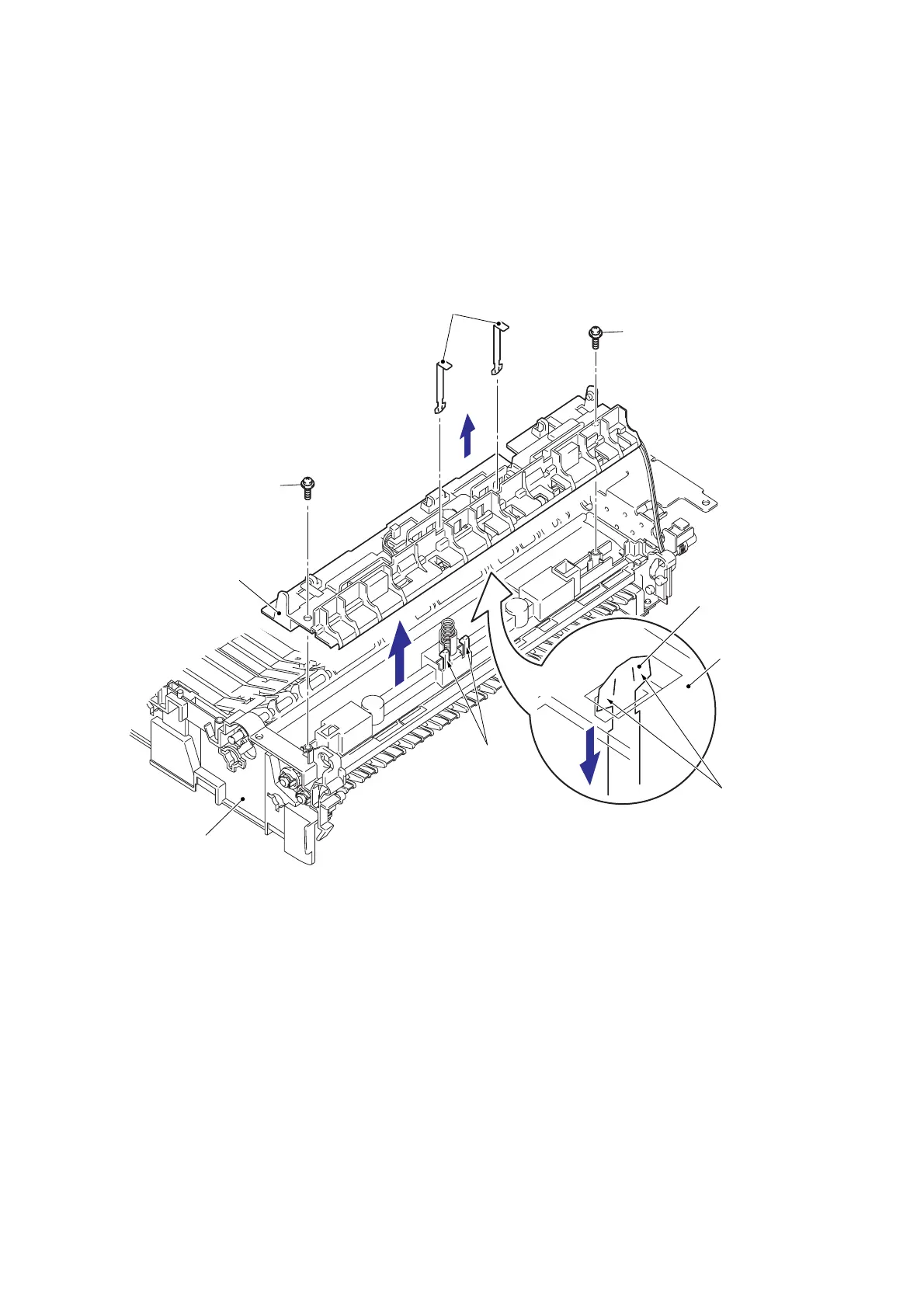

Fig. 5-134
2
3
3
Taptite cup B M3x10
LF2 films
LF2 film
Upper document
sub chute
Upper document
sub chute
Back side view
Taptite cup B M3x10
Hooks
ADF chute ASSY
Stopper
