Brother MFC-8480DN - Earth Spring

5-69
Confidential
9.8.11 Earth Spring

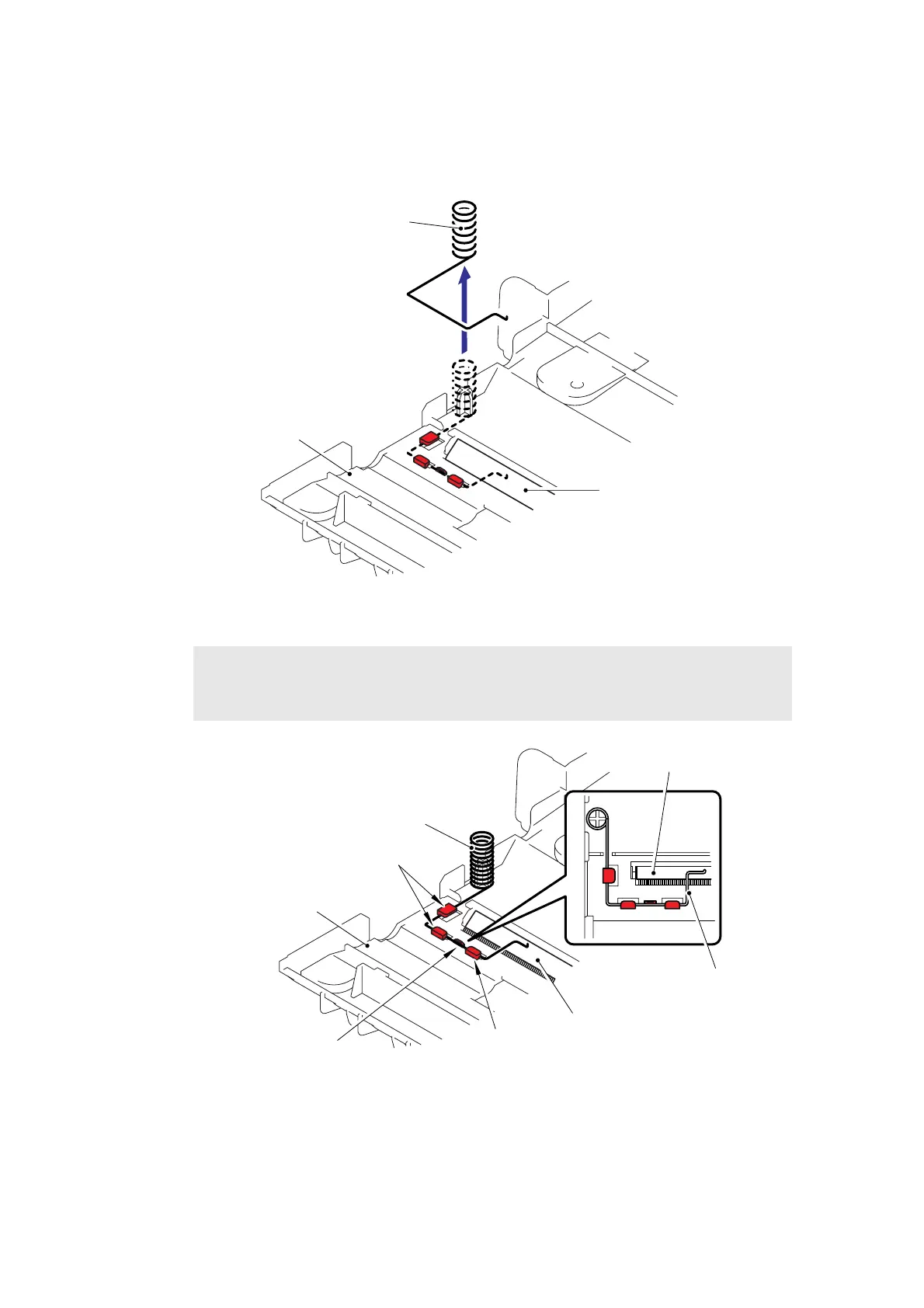

(1) Turn the Exit chute cover ASSY upside down. Remove the Earth spring from the Exit
chute cover ASSY.
Fig. 5-52
Fig. 5-53
Assembling Note:
• When assembling the Earth spring, ensure that the end of the Earth spring is
attached onto the Antistatic brush as shown in the figure below.
Earth spring
Antistatic brush
Exit chute cover ASSY
Antistatic brush
Antistatic brush
Earth spring
Earth spring
Hooks
Hook
Exit chute cover ASSY
Rib
