Brother MFC-8480DN - Document Exit Roller ASSY

5-125
Confidential

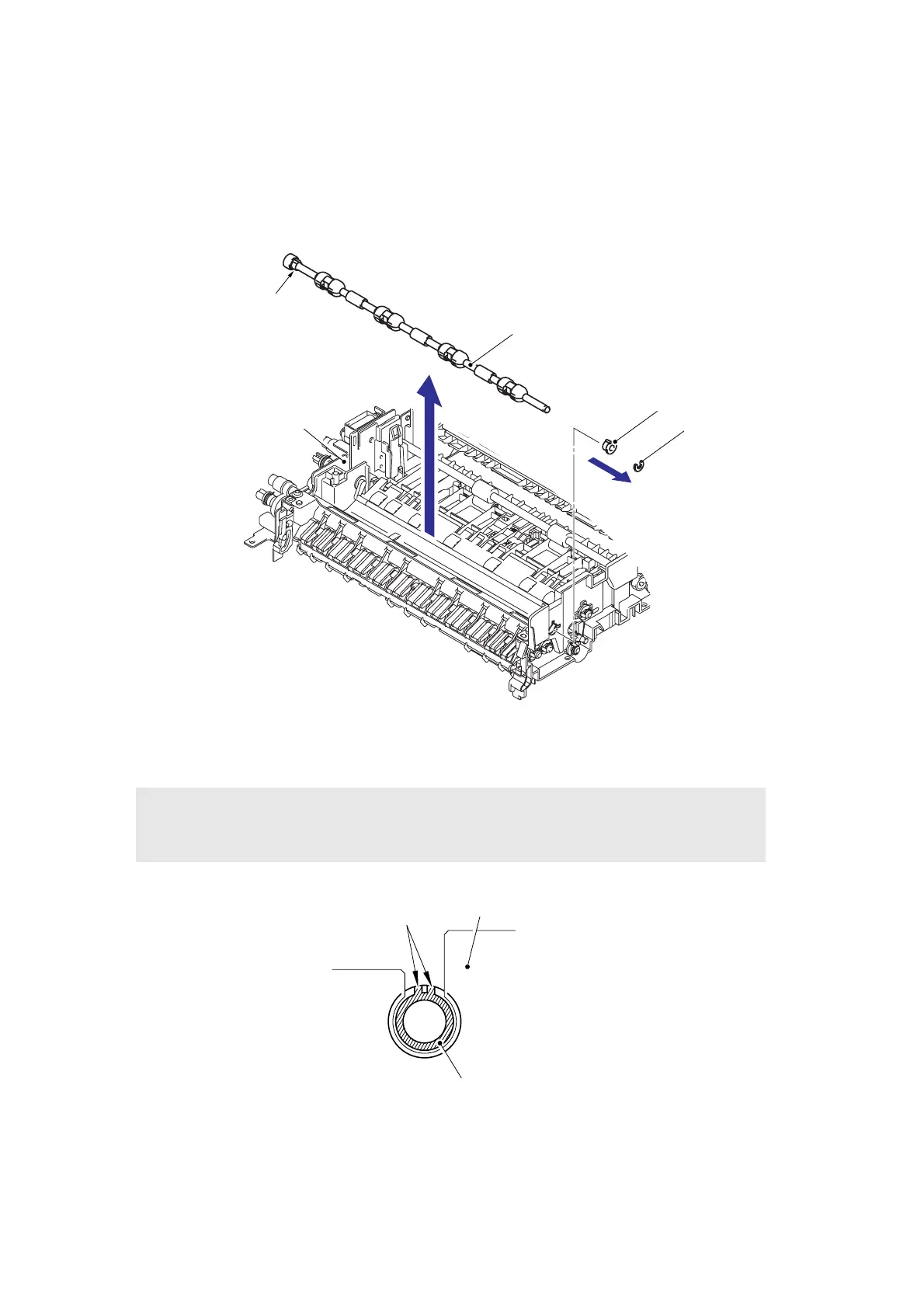

9.8.66 Document Exit Roller ASSY
(1) Remove the Collar 5 from the Document exit roller ASSY, and then remove the Bushing
5 from the Document exit roller ASSY.
(2) Remove the Conductive bushing N5 from the ADF chute ASSY, and then remove the
Document exit roller ASSY from the ADF chute ASSY.
Fig. 5-137
Fig. 5-138
Assembling Note:
• When assembling the Document exit roller ASSY, assemble the Conductive bushing N5
with aligning the Boss of the Conductive bushing N5 with the notch on the ADF chute ASSY.
1
2
Document exit roller ASSY
ADF chute ASSY
Collar 5
Bushing 5
Conductive bushing N5
Boss
ADF chute ASSY
Conductive bushing N5
