Brother MFC-8480DN - Document Front Actuator 2; Document Front Sensor 2

5-110
Confidential
9.8.53 Document Front Actuator 2 / Document Front Sensor 2
(1) Push down the Stopper, slide the Document front actuator 2 to the Stopper side and pull
up the Document front actuator 2.
(2) Release the Hook of the Document front sensor 2, and remove the Document front
sensor 2 from the Lower document chute ASSY.
(3) Disconnect the Connector from the Document front sensor 2.

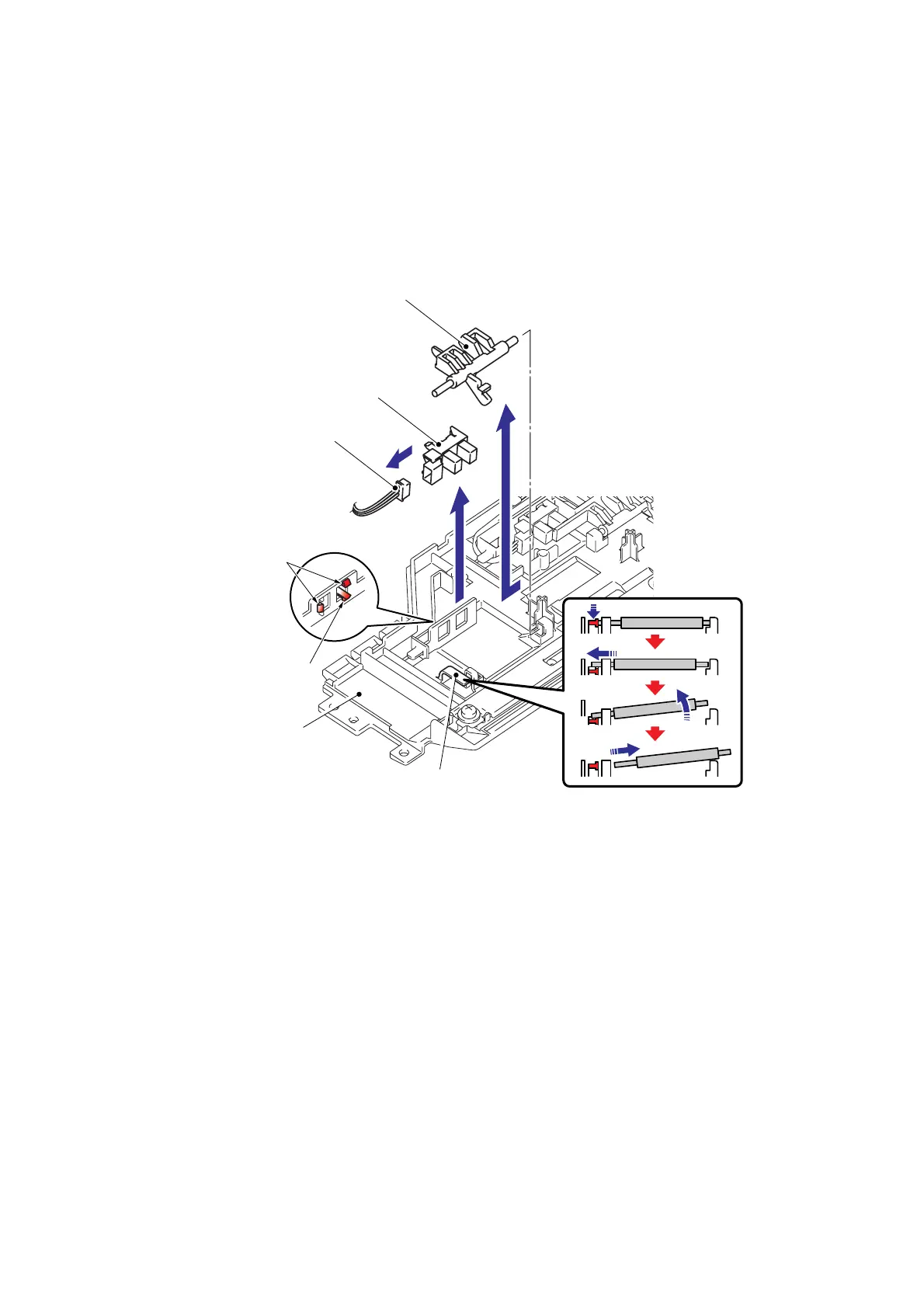

Fig. 5-119
2
3
1
Document front sensor 2
Document front actuator 2
Connector
Hook
Hook
Lower document chute ASSY
Stopper
