1.2 Procedures to Replace Periodical Maintenance Parts
1.2.1 Fuser unit and laser unit
■ CCD model
<Uninstalling Procedure>
Check that the following before entering the procedures.
• Make sure that the AC cord is disconnected from the machine.
• Make sure that the Drum/toner ASSY is removed.
• Make sure that the Paper is removed from the Paper tray.

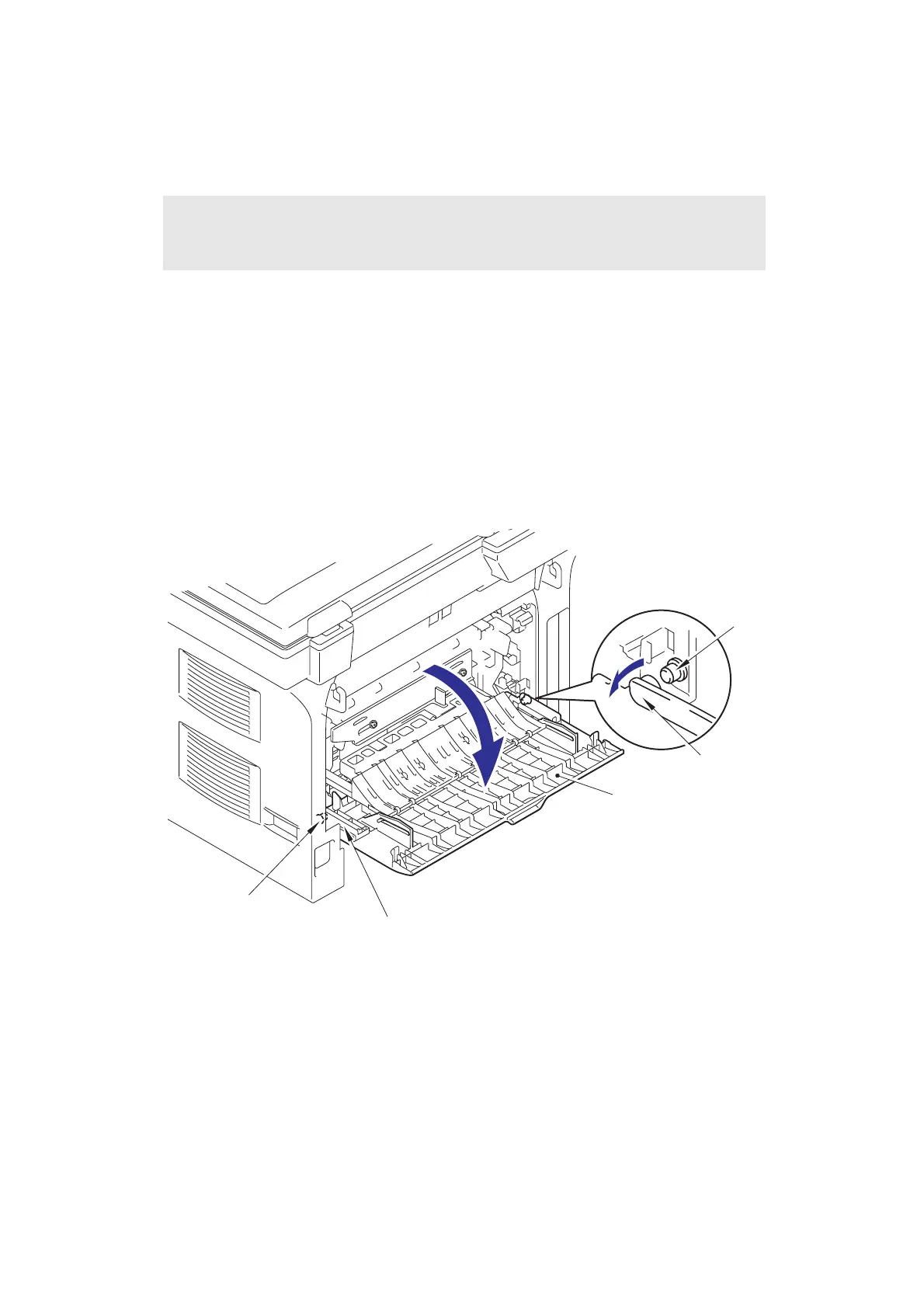

(1) Open the Back cover.
(2) Remove the Arms of the Back cover from the Pins.
Fig. 4-1
Note:
• In the case of the assembling and disassembling of the CIS model,
refer to 4-30 to 4-57.
Back cover
Pin
Arm
Arm
Pin
