■ CIS model
< Uninstalling Procedure >
Check that the following before entering the procedures.
• Make sure that the AC cord is disconnected from the machine.
• Make sure that the Drum/toner ASSY is removed.
• Make sure that the Paper is removed from the Paper tray.

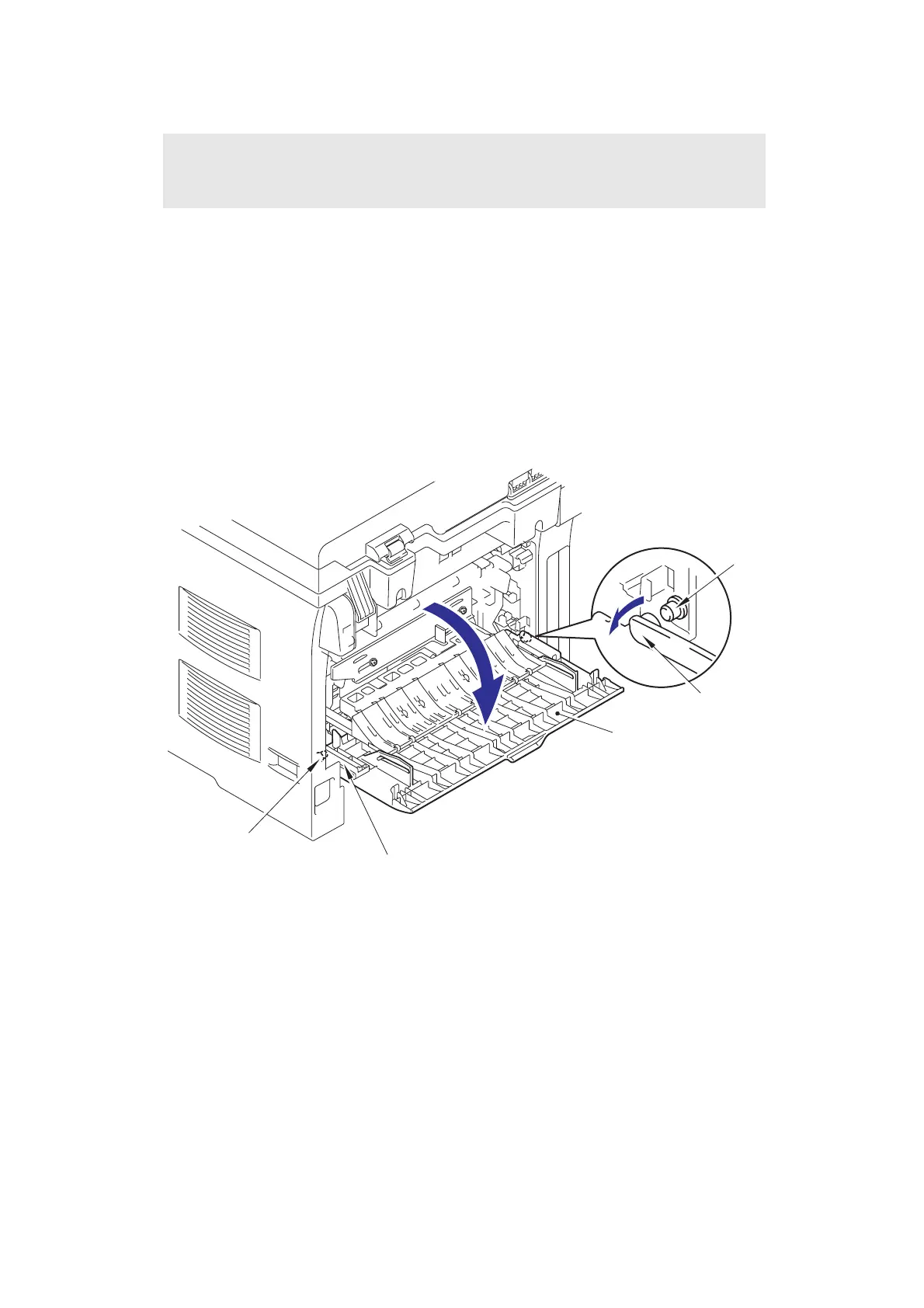

(1) Open the Back cover.
(2) Remove the Arms of the Back cover from the Pins.
Fig. 4-45
Note:
• In the case of the assembling and disassembling of the CCD model,
refer to 4-3 to 4-29.
Back cover
Pin
Arm
Arm
Pin
To Next Page
