Brother MFC-8480DN Service Manual

5-66
Confidential
9.8.8 ADF Chute ASSY
(1) Disconnect the 7 connectors (for the model supporting the DX tray only) or 3 connectors
(for the model supporting no DX tray only) from the ADF relay PCB.
(2) Disconnect the connector of the ADF motor harness from the ADF motor.
(3) Remove the cup S M3x8 Taptite screw and ADF FG harness.

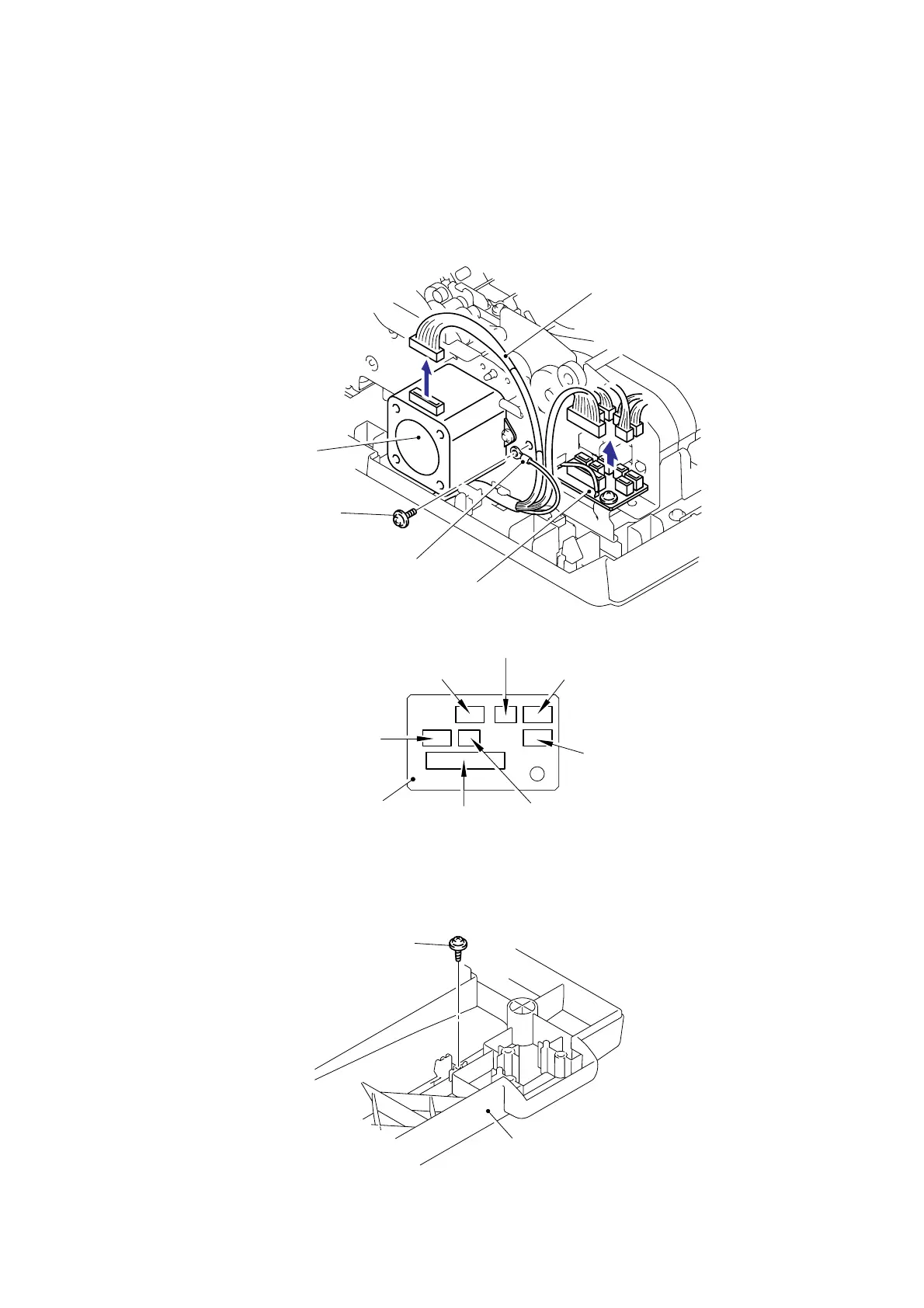

Fig. 5-46
(4) Turn the Document cover LGL upside down and remove the cup B M3x10 Taptite screw.
Fig. 5-47
ADF motor harness
ADF motor
<Back side>
1
2
ADF FG harness
ADF relay PCB
Taptite cup S M3x8
Switch back solenoid ASSY
(for the models with the DX only)
ADF relay harness
PF solenoid ASSY
(for the models with the DX only)
Document rear sensor
Document front sensor 1
Switch back sensor
(for the models with the DX only)
ADF relay PCB
Document front sensor 2
(for the models with the DX only)
Taptite, cup B M3x10
Document cover LGL
