4.4 ADF Performance Test (Function code 08)
<Function>
The machine counts the documents fed by the automatic document feeder (ADF) and
displays the count on the LCD for checking the ADF performance.
<Operating Procedure>
(1) Set documents. (Allowable up to the ADF capacity.)
The "DOC. READY" will appear on the LCD.
(2) Press the [0] and [8] keys in this order.
MFC-8380DN/8880DN/8890DW only
Press the [ ] or [ ] buttons so that the "[ ]: DX, [ ]: SX" is displayed on the LCD.
While counting the documents, the machine feeds them in and out, displaying the
current count on the LCD as shown below.
(3) Press the [Stop/Exit] button, then the operation of the above will finish and return the
machine to the initial stage of the maintenance mode.

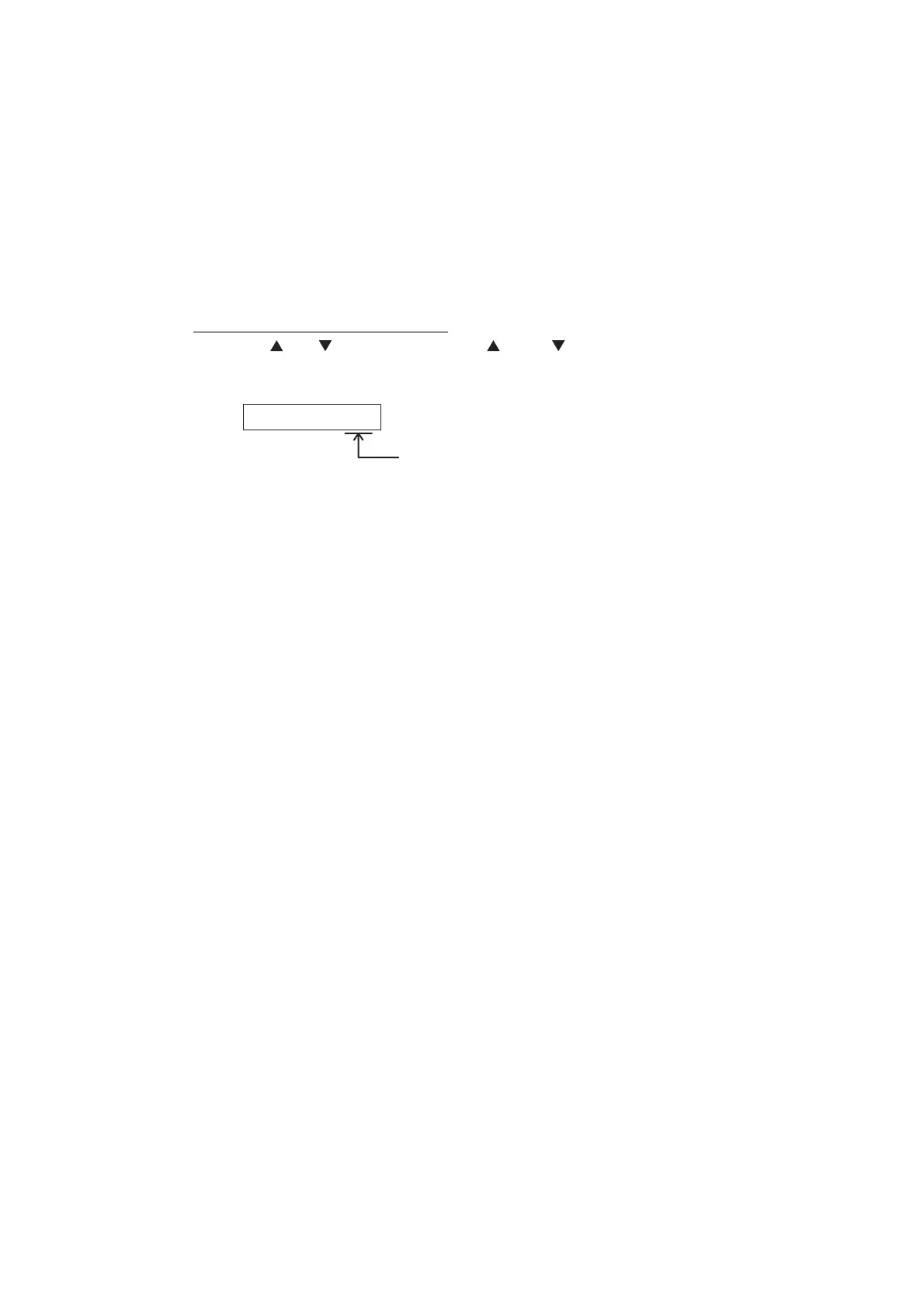

ADF CHECK P.01
Current count (1st page in this example)
