9.18.4 Joint Cover FL/FR
(1) Turn the Joint cover upside down.
(2) Remove the two bind B M4x12 Taptite screws, and remove the Joint cover FL/FR.

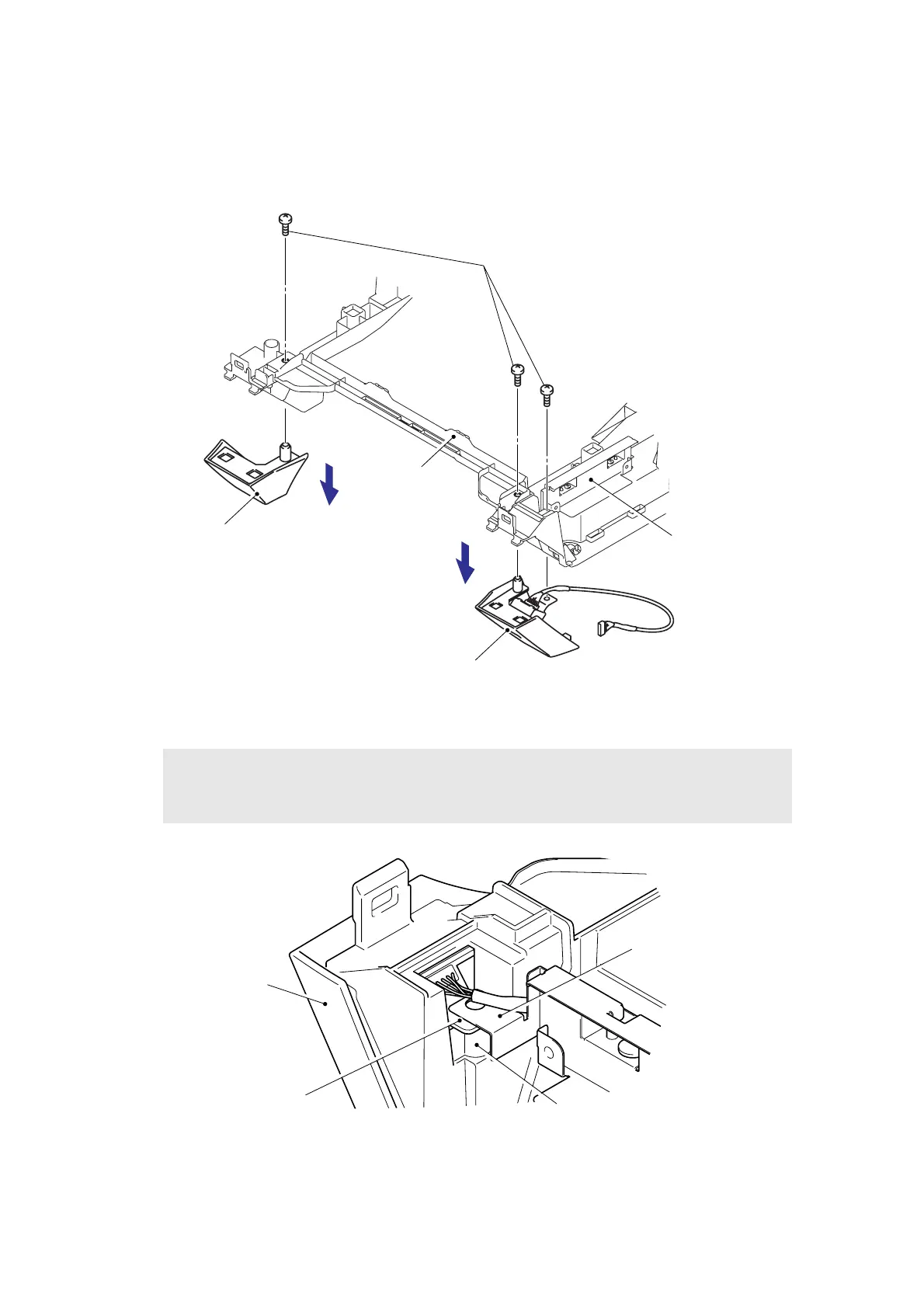

Fig. 5-206
Fig. 5-207
Assembling Note:
• When assembling the Joint cover FL, Check that there is the USB PCB holder at
between the Joint cover and the Driver PCB holder as shown in the figure below.
Driver PCB holder
Taptite bind B M4x12
Joint cover FR
Joint cover FL
Joint cover
Driver PCB holder
Joint cover
USB PCB holder
Joint cover FL
