Brother MFC-8480DN - Back Light PCB ASSY

5-151
Confidential
9.11.6 Back Light PCB ASSY
(1) Turn the Panel unit upside down.
(2) Disconnect the two FFCs from the Back light PCB ASSY and the Panel PCB ASSY.
(3) Release the Hooks of the LCD holder, and remove the Back light PCB ASSY from the
LCD holder.
(4) Unlock the Connector of the back side of the Back light PCB ASSY to disconnect the
LCD harness.

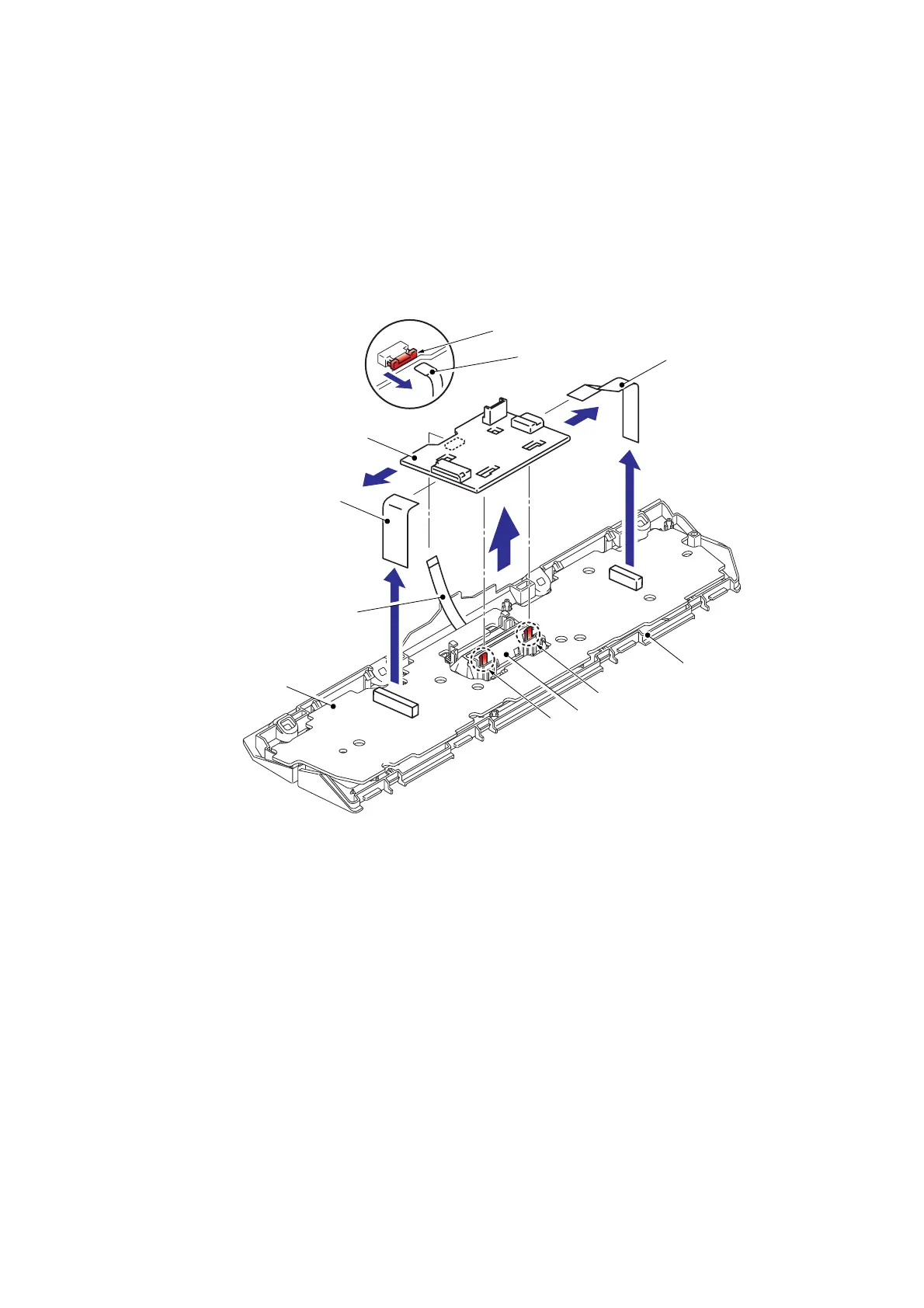

Fig. 5-175
Panel PCB ASSY
Back light PCB ASSY
FFC
LCD harness
LCD harness
FFC
Lock
22
22
22
22
33
44
Panel unit
LCD holder
Hook
Hook
