Brother MFC-8480DN - Actuator Switch Back; Switch Back Sensor

5-120
Confidential
9.8.62 Actuator Switch Back / Switch Back Sensor

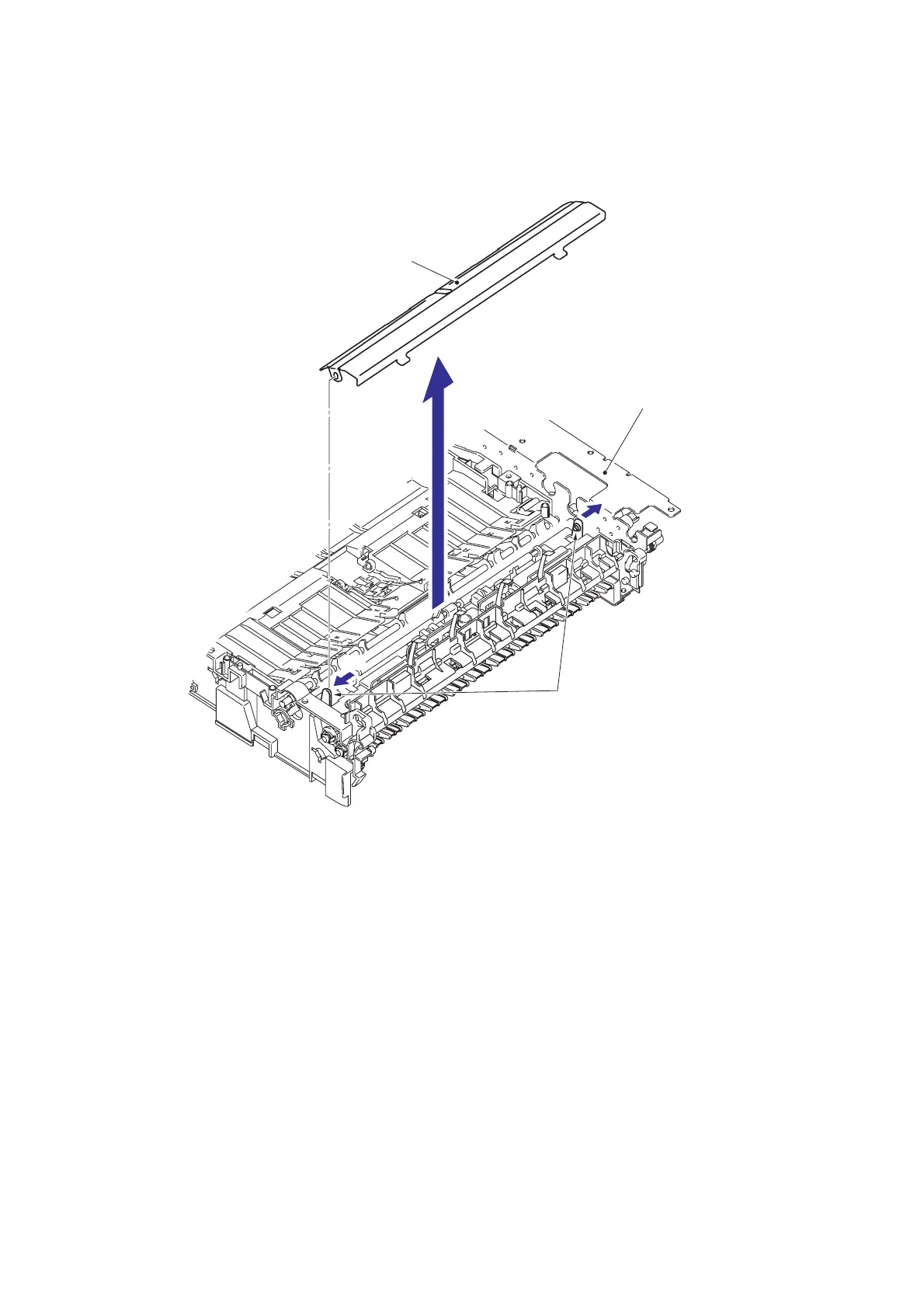

(1) Pull the Arms of the Upper Document sub chute ASSY outwards and remove the
Document hold from the Upper Document sub chute ASSY.
Fig. 5-131
1b
1a
1a
Arm
Document hold
Upper document sub chute ASSY
