Brother MFC-8480DN - PF Solenoid ASSY (for the Models with the DX Only); Switch Back Solenoid ASSY (for the Models with the DX Only)

5-75
Confidential

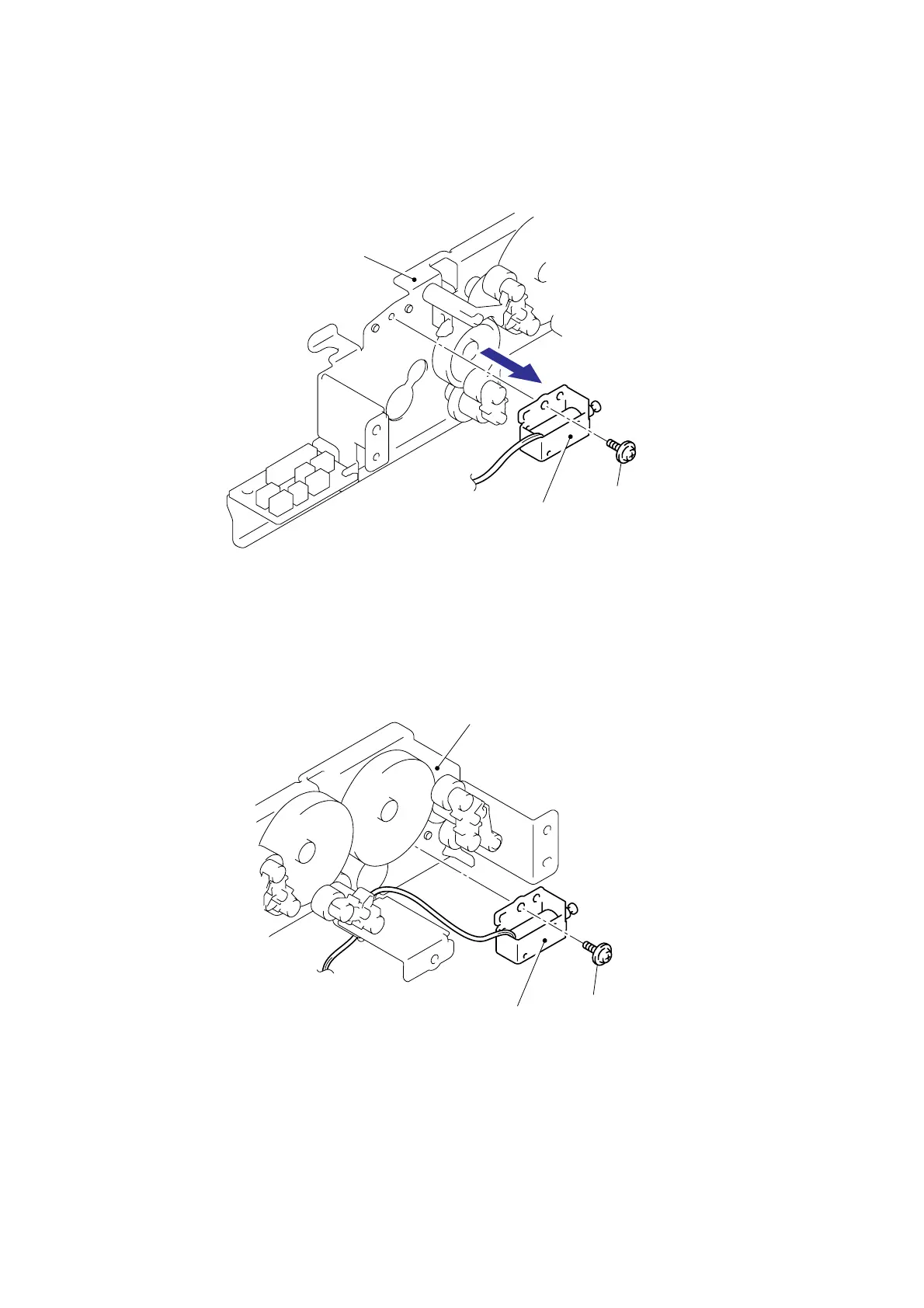

9.8.16 Switch Back Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the Switch back solenoid ASSY.
Fig. 5-63
9.8.17 PF Solenoid ASSY (For the models with the DX only)
(1) Remove the cup S M3x8 Taptite screw.
(2) Remove the PF solenoid ASSY.
Fig. 5-64
Motor frame ASSY
Switch back solenoid ASSY
Taptite cup S M3x8
Motor frame ASSY
PF Solenoid ASSY
Taptite cup S M3x8
