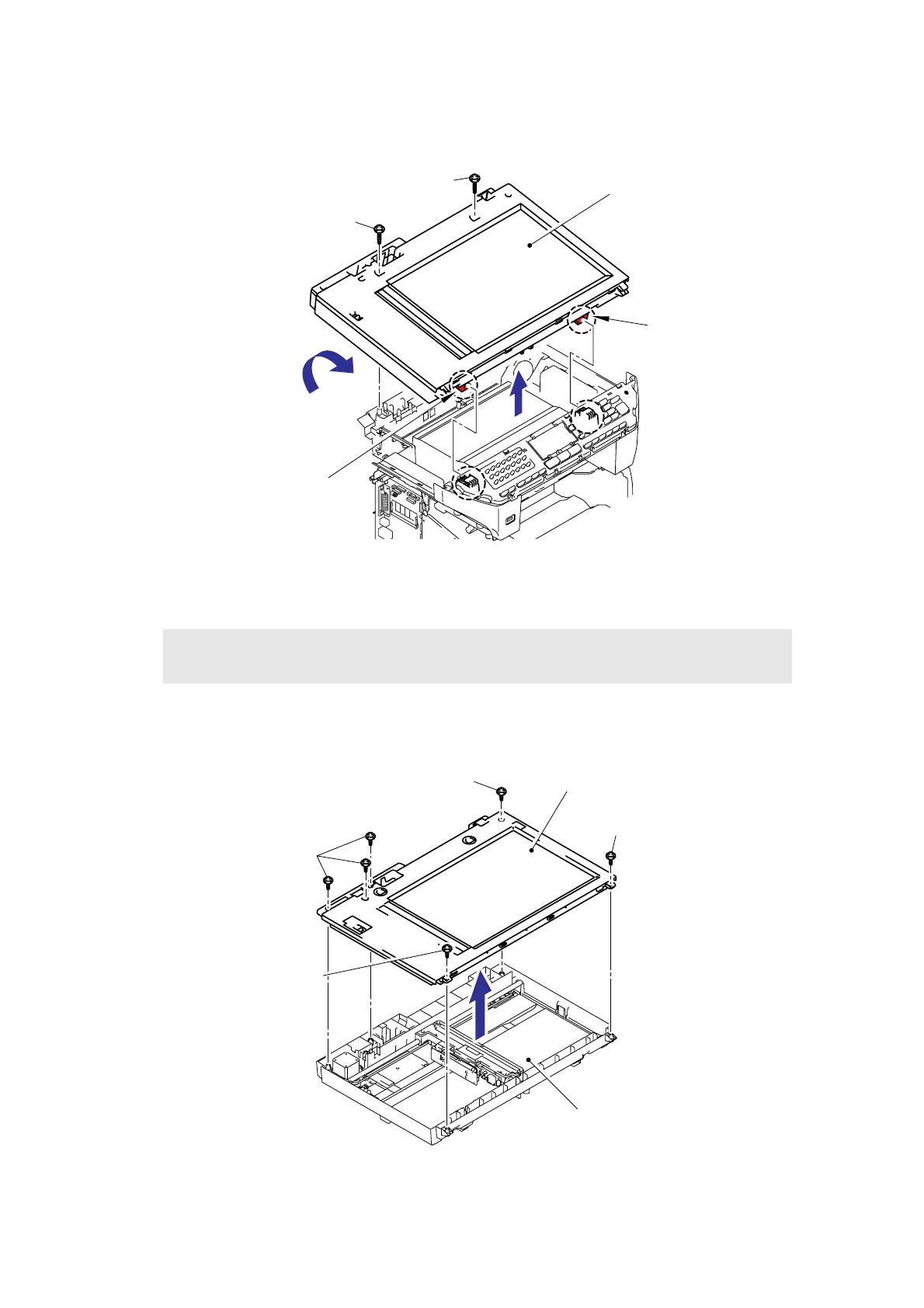

(3) Remove the two cup B M4x20 Taptite screws. Lift up the rear of the Scanner unit slightly
and remove the Scanner unit.
Fig. 5-149
9.10.2 Top Cover ASSY
(1) Remove the six cup B M4x12 Taptite screws.
(2) Remove the Top cover ASSY from the Scanner base ASSY.
Fig. 5-150
Note:
• Be sure not to open the Top cover ASSY in a dusty place.
3a
3b
Scanner unit
Taptite cup B M4x20
Taptite cup B M4x20
Hook
Hook
Taptite cup B M4x12
Taptite cup B M4x12
Top cover ASSY
Scanner base ASSY
Taptite cup B M4x12
Taptite cup B M4x12
