Brother MFC-8480DN - Document Rear Actuator; Document Rear Sensor

5-89
Confidential
9.8.31 Document Rear Actuator / Document Rear Sensor

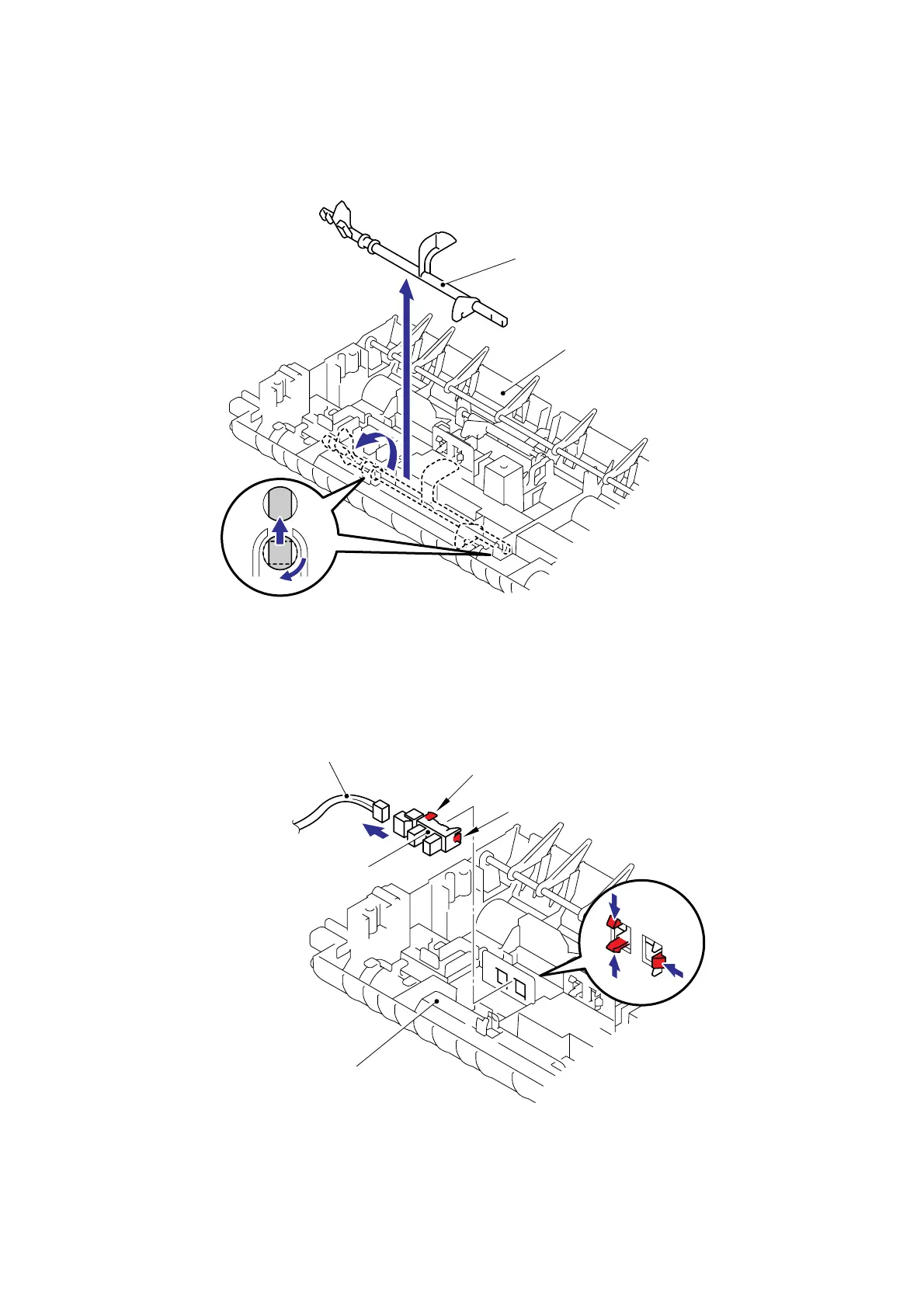

(1) Turn the Document rear actuator to the direction of the arrow 1a and pull it out to the
direction of the arrow 1b.
Fig. 5-88
(2) Release the Hooks of the Document rear sensor to remove the Document rear sensor
from the Lower main chute ASSY.
(3) Disconnect the Connector from the Document rear sensor.
Fig. 5-89
Document rear actuator
Lower main chute ASSY
1b
1a1a
Connector
Hook
Hook
Document rear sensor
Lower main chute ASSY
