Brother MFC-8480DN - Switch Back Roller ASSY (for the Models with the DX Only)

5-72
Confidential

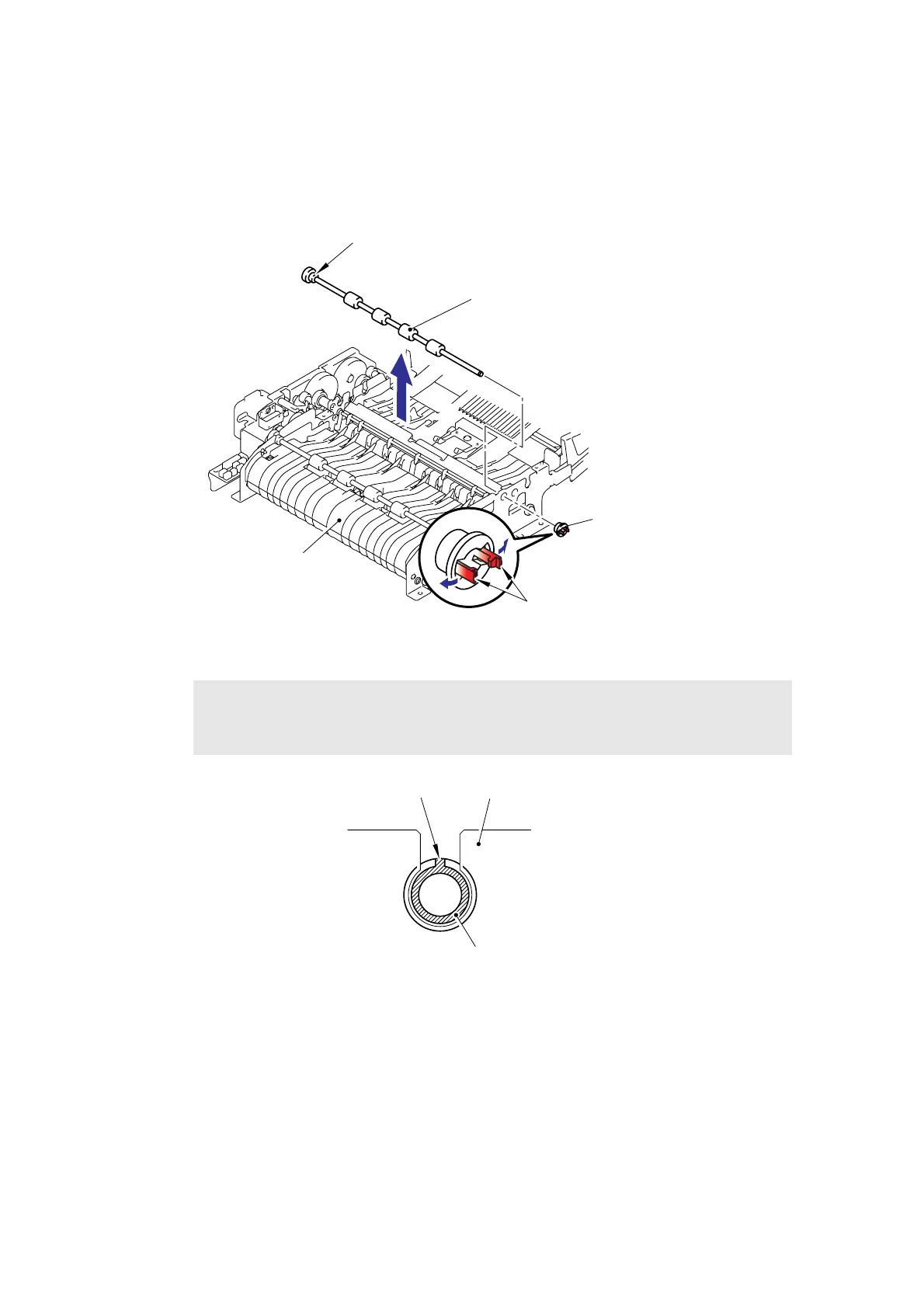

9.8.14 Switch Back Roller ASSY (For the models with the DX only)
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the Switch back roller
ASSY from the ADF chute ASSY.
Fig. 5-57
Fig. 5-58
Assembling Note:
• When assembling the Switch back roller ASSY, assemble the Bushing with aligning
the Boss of the Bushing with the notch on the ADF chute ASSY.
Bushing
Switch back roller ASSY
Conductive bushing A
<Front side>
Hooks
ADF chute ASSY
Boss ADF chute ASSY
Bushing
