(30) Catch the Arm of the Back cover onto the Pin of the machine body and install the Back
cover, and close the Back cover.

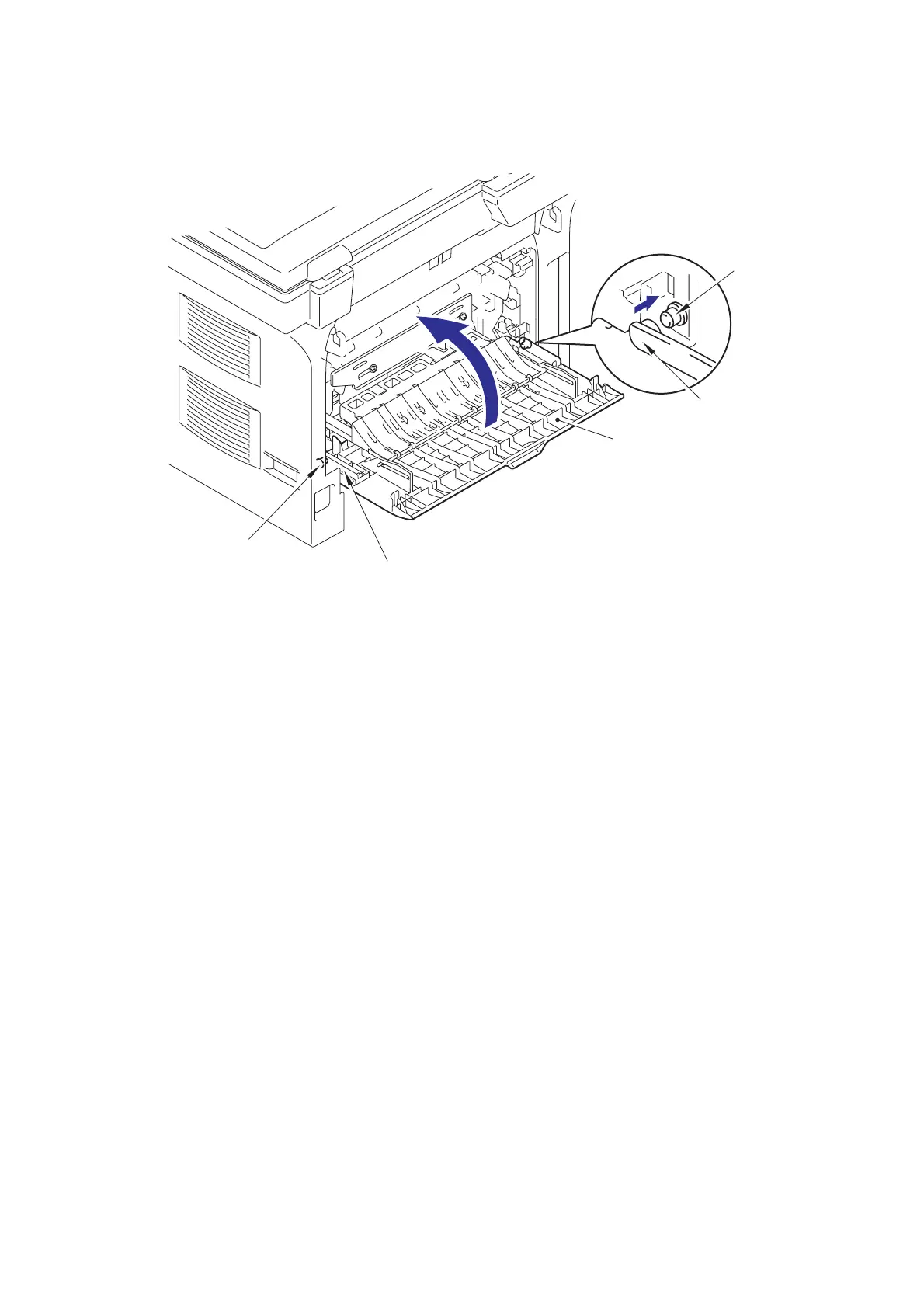

Fig. 4-44
Set the following parts after assembling.
• Set the Duplex feed ASSY.
• Install the Drum/toner ASSY into the machine.
• Put the Paper into the Paper tray.
• Reset the count of the Fuser unit and Laser unit after part replacement.
(Refer to "5.1 Resetting the Periodical Maintenance Parts Life" in Chapter7.)
30b
30a
Back cover
Pin
Arm
Arm
Pin
