(3) Remove the Pins of the Outer chute ASSY from the Back cover.
(4) Remove the Back cover.

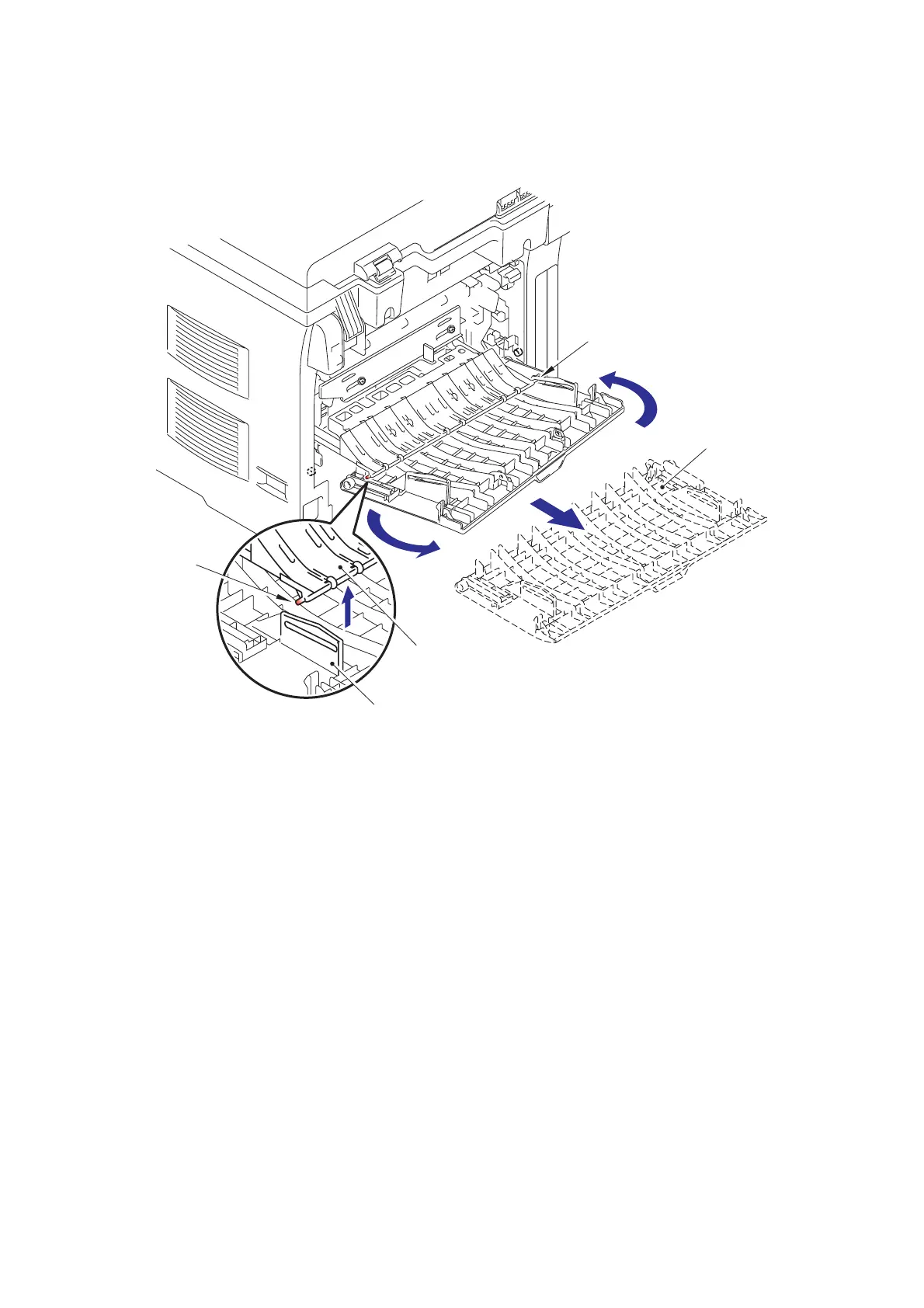

Fig. 4-46
3a
3a
3b
4
Pin
Pin
Back cover
Back cover
Outer chute ASSY
