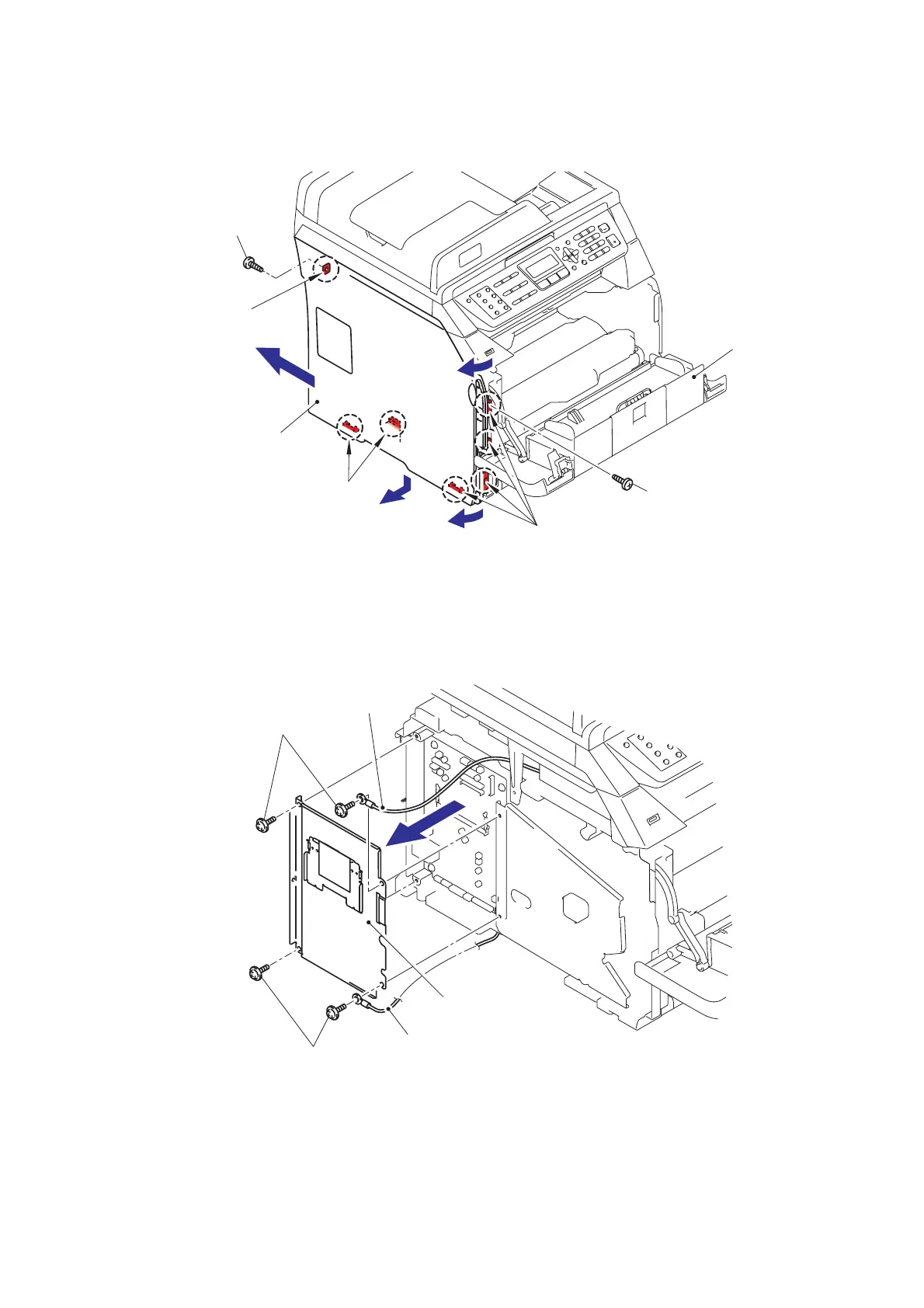

(13) Open the Front cover, remove the two bind B M4x12 Taptite screws, and then remove
the Side cover L by releasing the Hooks in the order of 13a to 13d.
Fig. 4-53
(14) Remove the four cup S M3x6SR Taptite screws to remove the Shield cover ASSY and
the two FG harnesses.
Fig. 4-54
13a
13b
13d
13c
Taptite bind B M4x12
Taptite bind B M4x12
Front cover
Hook
Hook
Hook
Side cover L
Taptite cup S M3x6SR
Taptite cup S M3x6SR
FG harness
FG harness
Shield cover ASSY
