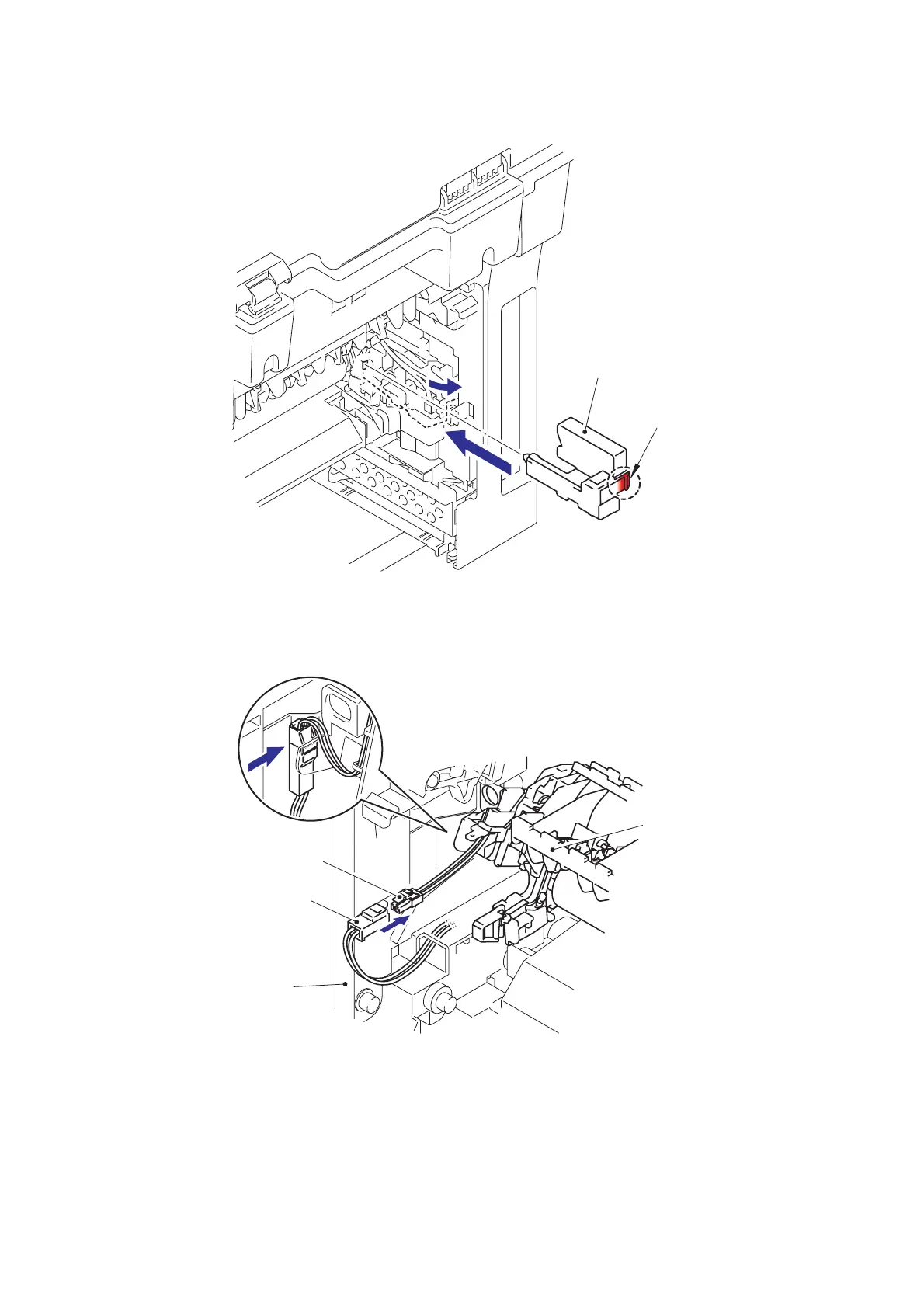

(27) Install the FU harness cover 2.
Fig. 4-84
(28) Install the connector of the Heater Terminal to the connector to the Fuser unit.
Fig. 4-85
28b
28a
27b
27a
Hook
FU harness cover 2
Frame R
Heater terminal
Connector
Fuser unit
