5-57
Confidential

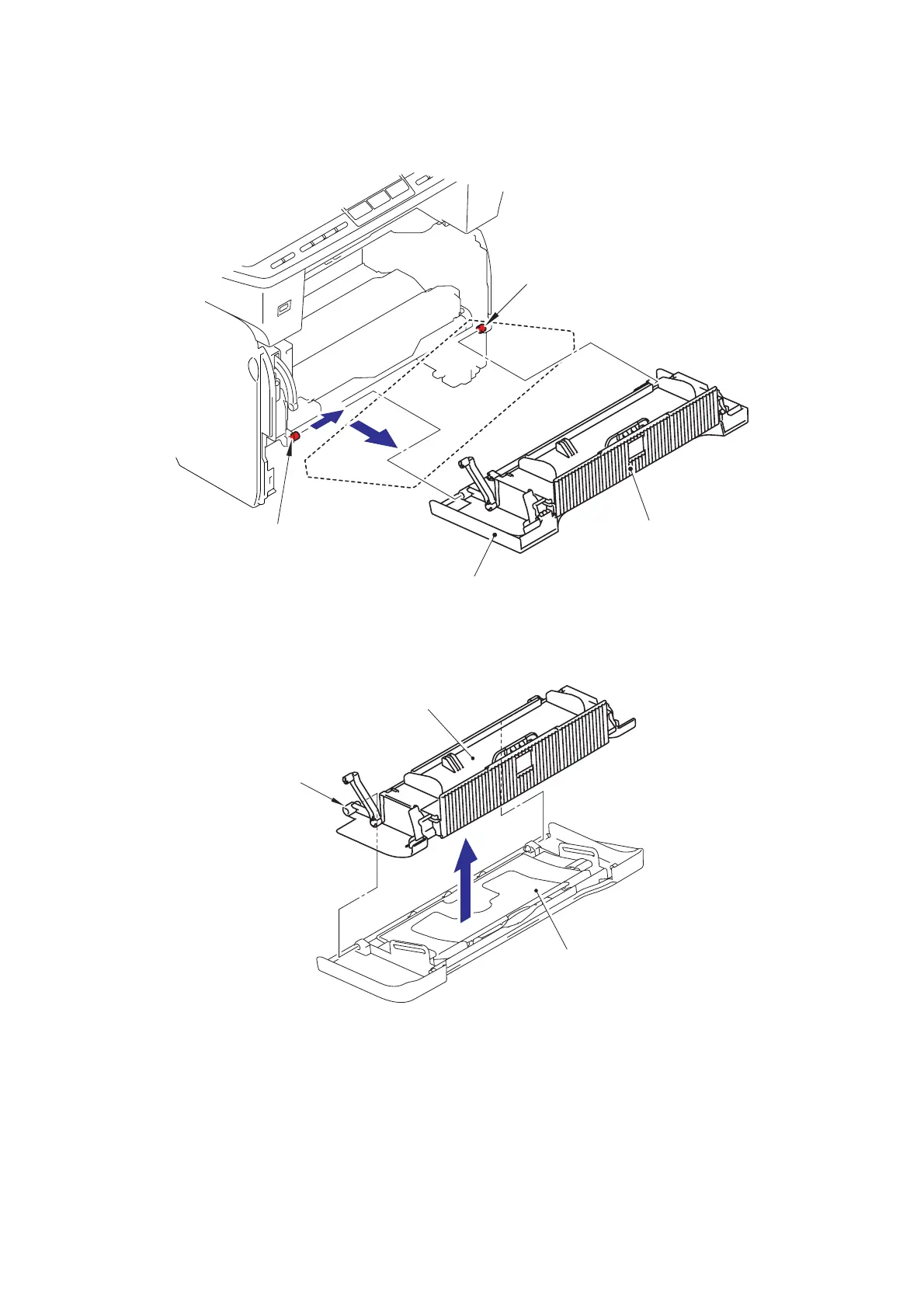

(4) Remove the MP tray cover ASSY and the Process cover ASSY to the direction of 4a and
4b to release the Pins, and remove them.
Fig. 5-29
(5) Pull the Arm outwards and remove the Process cover ASSY from the MP tray cover ASSY.
Fig. 5-30
4b
4a
Pin
Pin
Process cover ASSY
MP tray cover ASSY
Process cover ASSY
Arm
MP tray cover ASSY
