Brother MFC-8480DN - Page 315

5-62
Confidential

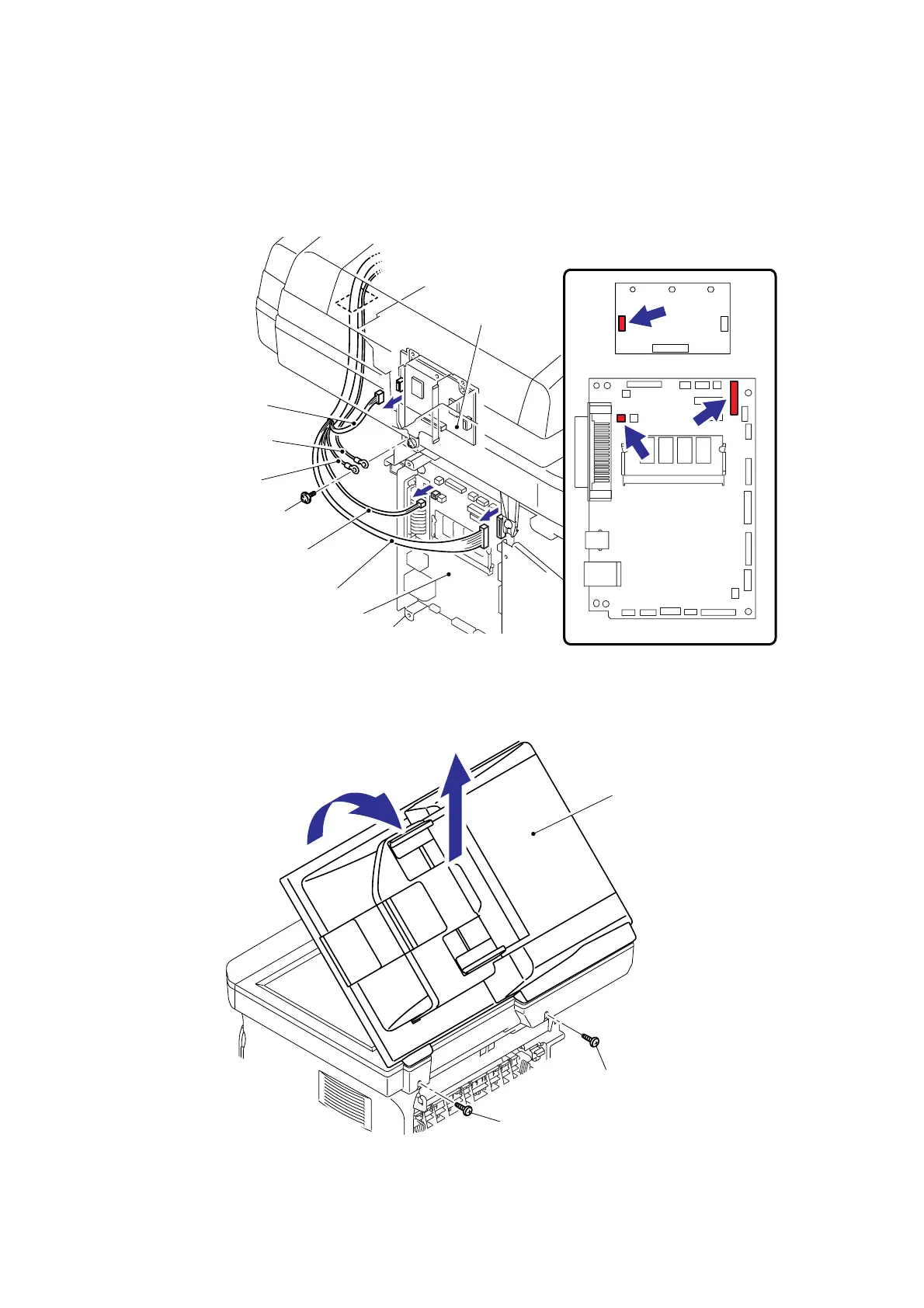

(2) Remove the cup S M3x6 Taptite screw, remove the ADF FG harness and FB FG
harness.
(3) Disconnect the Connector from the Driver PCB.
(4) Disconnect the two Connectors from the Main PCB.
Fig. 5-38
(5) Remove the two bind B M4x12 Taptite screws, and then remove the Document cover.
Fig. 5-39
Driver PCB
Driver PCB
Main PCB
Main PCB
<Left side>
Connector
(ADF motor harness)
Connectors
(ADF relay harness)
Connector
(Document cover sensor)
FB FG harness
Taptite cup S M3x6
ADF FG harness
Document cover
Taptite, bind B M4x12
<Back side>
Taptite, bind B M4x12
5a
5b
