(3) Remove the Pressure roller shaft from the Lower document chute ASSY.
(4) Remove the two Pressure rollers from the Pressure roller shaft.

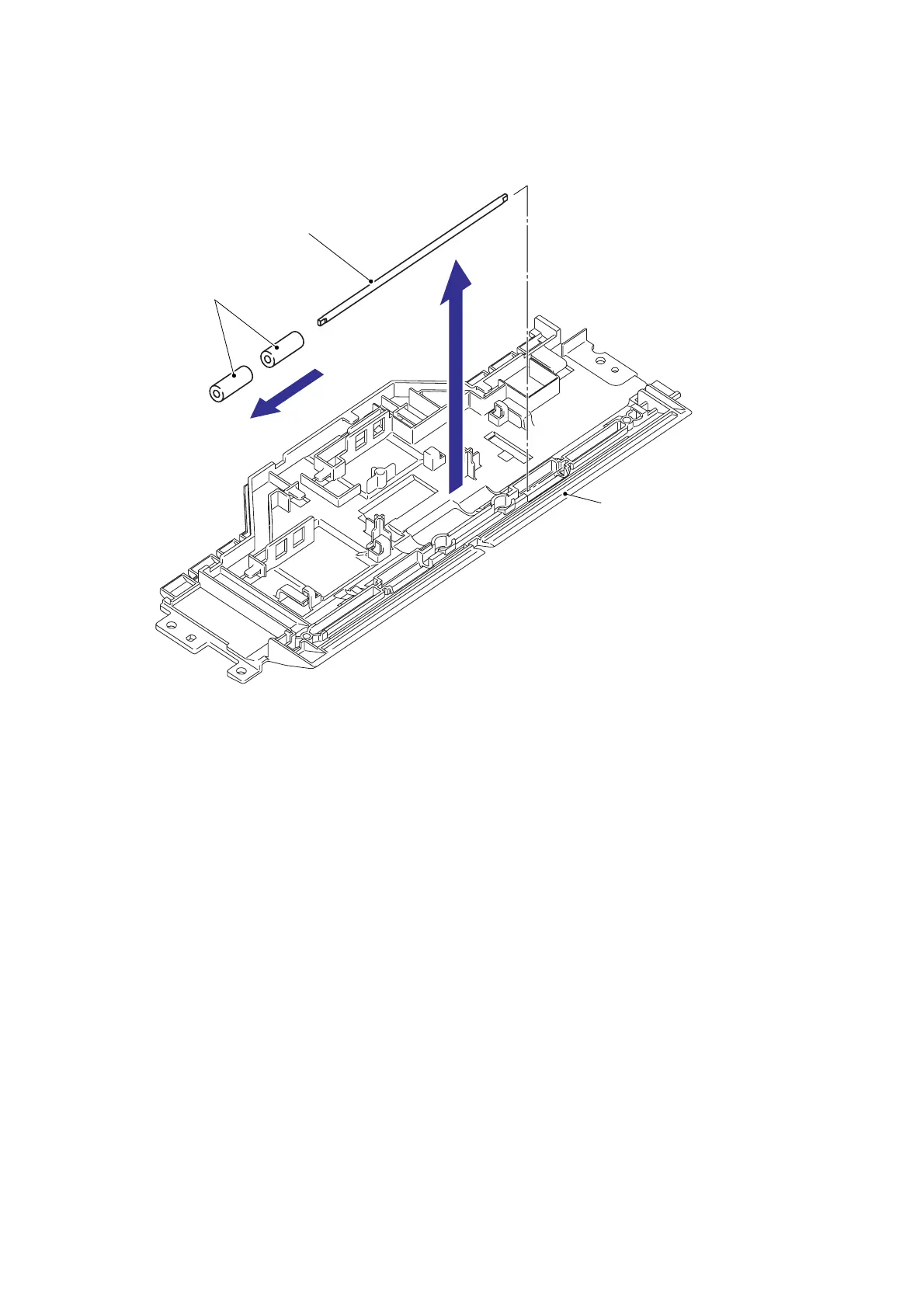

Fig. 5-122
33
44
Lower document chute ASSY
Pressure roller shaft
Pressure rollers
