5-128
Confidential

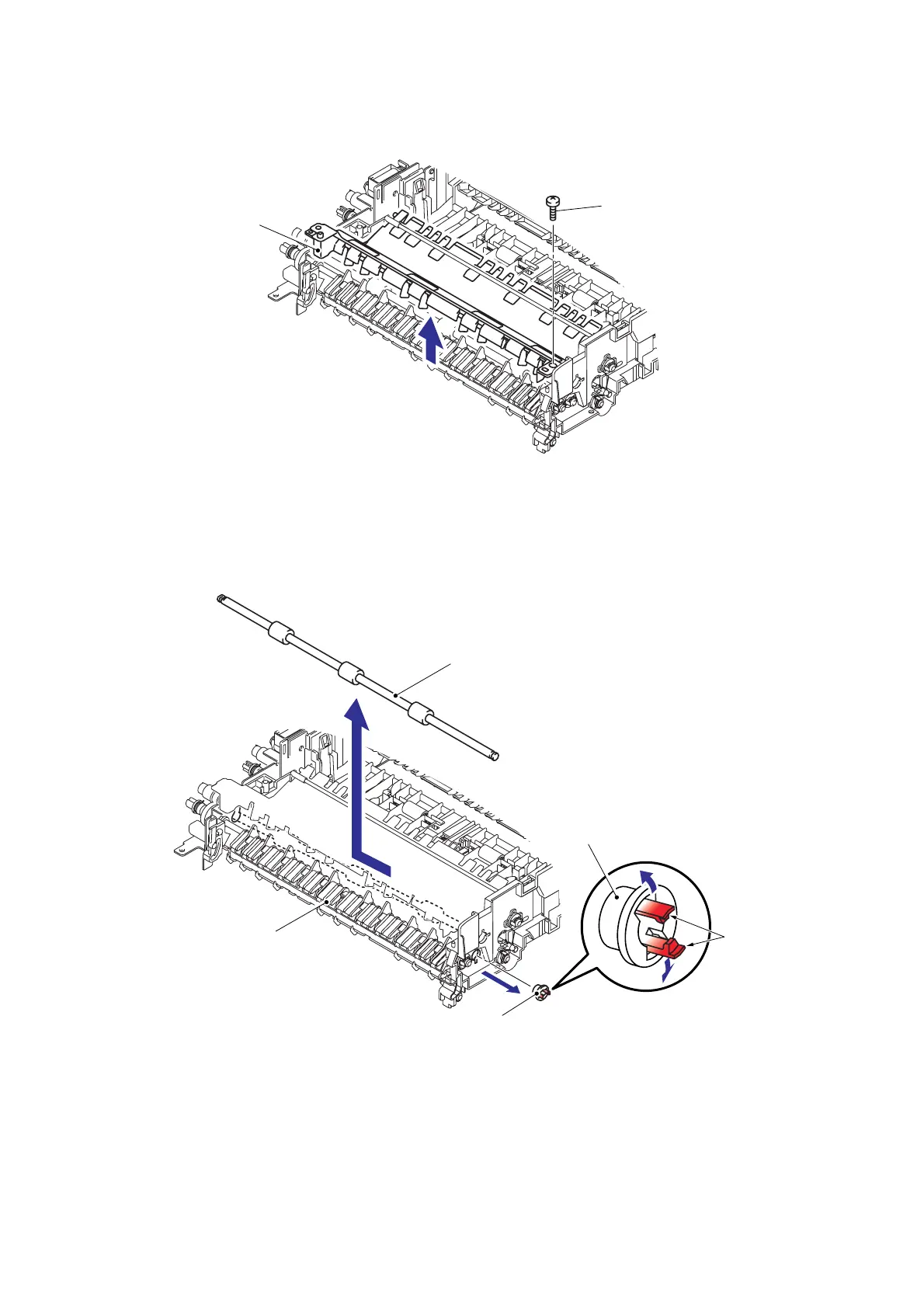

(3) Remove the bind B M4x10 Taptite screw, and pull up the Exit chute.
Fig. 5-143
(4) Release the Hooks of the Bushing F6 to remove the Bushing F6.
(5) Remove the LF roller 3 ASSY from the ADF chute ASSY.
Fig. 5-144
Exit chute
Taptite bind B M4x10
4
5
LF roller 3 ASSY
Bushing F6
Bushing F6
Hooks
ADF chute ASSY
