5-157
Confidential

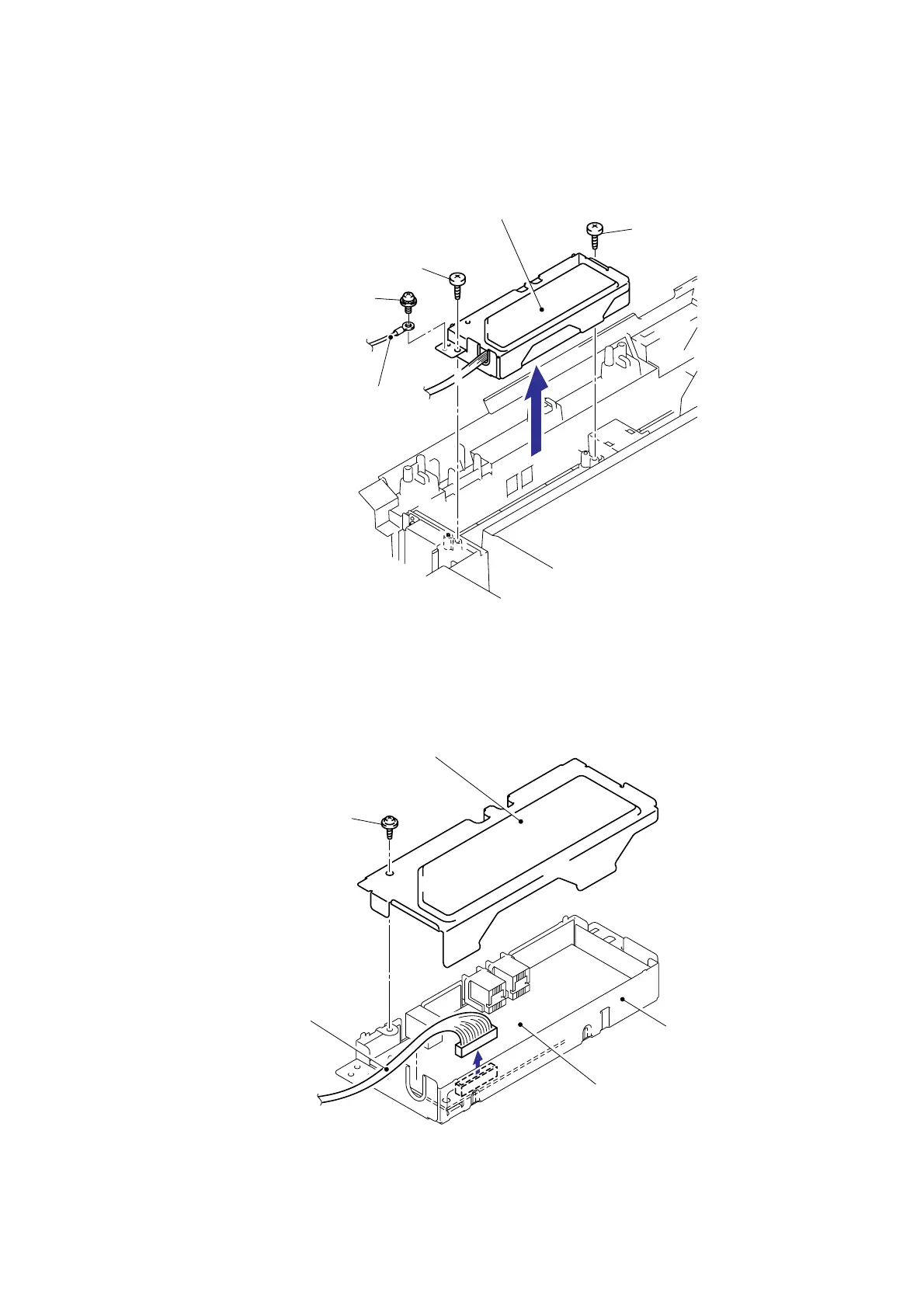

(2) Remove the Screw, pan (S/P washer) M3.5x6 SR, and remove the NCU FG harness
ASSY.
(3) Remove the two bind B M4x12 Taptite screws, and then remove the NCU unit.
Fig. 5-181
(4) Remove the Screw pan (S/P washer) M3.5x6 screw, and then remove the NCU shield
cover.
(5) Disconnect the connector of the NCU harness.
Fig. 5-182
NCU unit
Taptite, bind B M4x12
Taptite, bind B M4x12
Screw, pan (S/P washer) M3.5X6 SR
NCU FG harness ASSY
<Back side>
NCU shield cover
Screw, pan (S/P washer) M3.5X6
NCU harness
NCU PCB ASSY
NCU shield plate
