5-182
Confidential

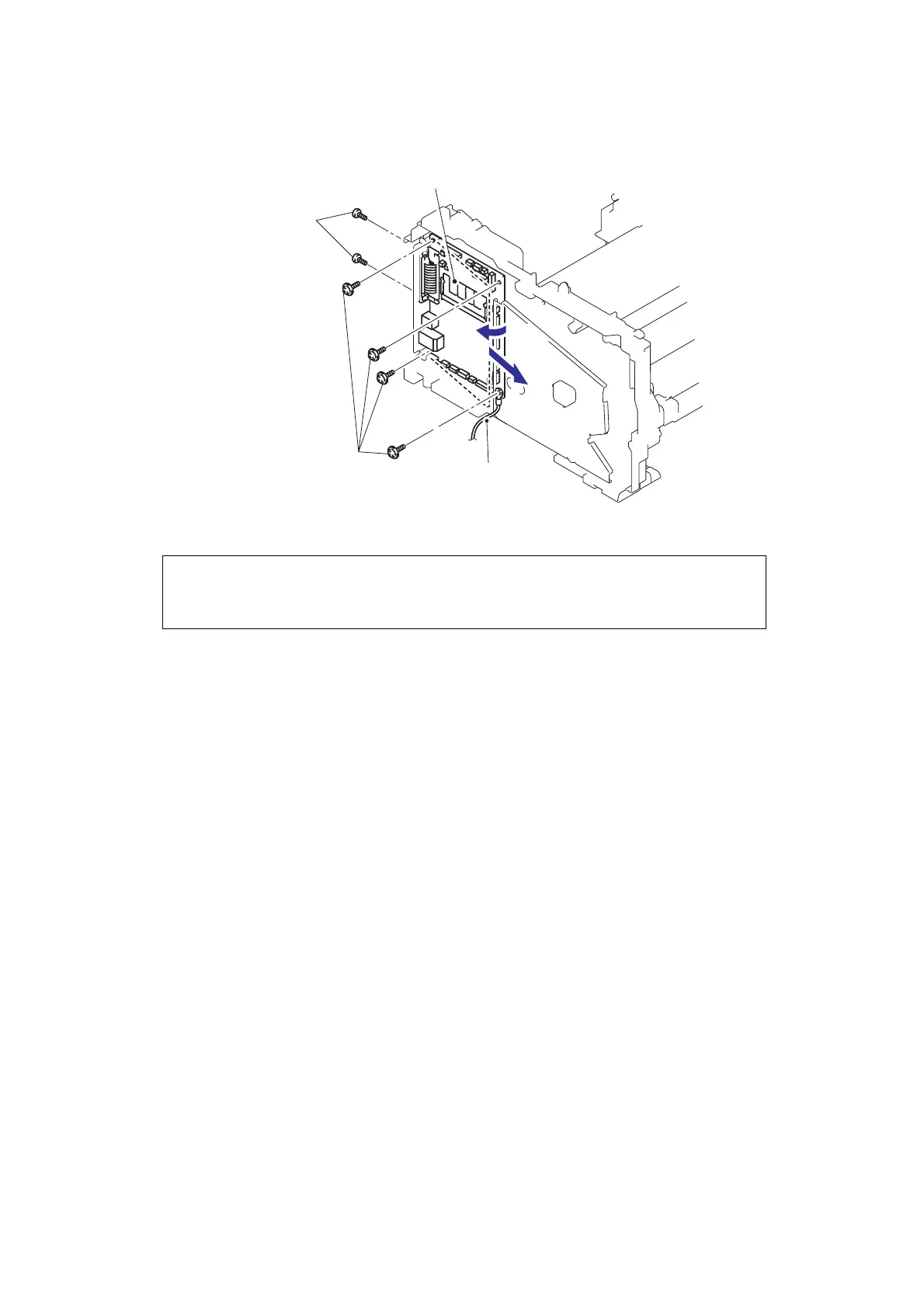

(2) Remove the four cup S M3x6 SR Taptite screws and two Screw pan M3x6 to remove the
Main PCB.
Fig. 5-213
Note:
There are procedures for disassembling Frame L after this procedure.
(9.42 FRAME L ASSY)
2a
2b
Main PCB
Taptite, cup S M3x6 SR
FG harness
Screw pan M3x6
