5-230
Confidential

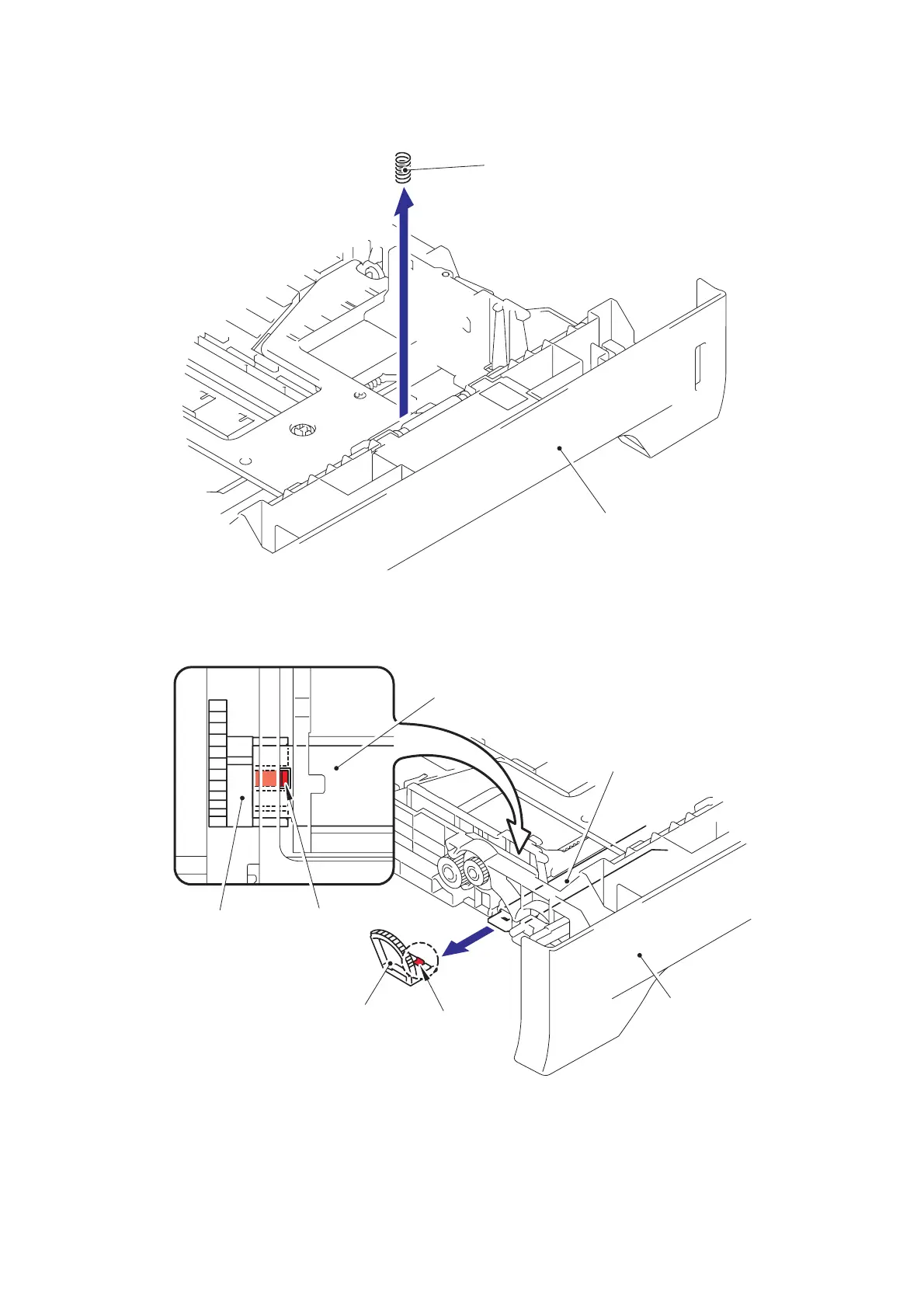

(5) Remove the Separation pad spring.
Fig. 5-292
(6) Remove the Lift gear 46.
Fig. 5-293
Paper tray
Separation pad spring
Paper tray
Plate up plate
Plate up plate
Hook
Hook
Lift gear 46
Lift gear 46
