Brother MFC-8480DN Service Manual

6-8
Confidential
■ EEPROM Customizing of Main PCB (Maintenance Mode: Code 74)
Refer to “4.18 EEPROM Customizing” in Chapter 7, and perform the EEPROM
Customizing.
For models in France and surrounding countries, Pan-Nordic, Oceania or Iberia,
implement the setting for Code 74 in Maintenance mode first. Then, implement more
detailed settings for Code 52.
■ EEPROM Parameter Initialization of Main PCB
(Maintenance Mode: Code 01)
Refer to “4.1 EEPROM Parameter Initialization” in Chapter 7, and perform the
EEPROM parameter Initialization of main PCB.
■ Operational Check of Control Panel Button (Maintenance Mode: Code 13)
Refer to “4.8 Operational Check of Control Panel PCB” in Chapter 7, and perform the
operational check of control panel PCB.
■ Operational Check of Sensors (Maintenance Mode: Code 32)
Refer to “4.10 Sensor Operational Check” in Chapter 7, and perform the operational
check of sensors.
■ Acquisition of White Level Data and Set the CCD Scanner Area
(Maintenance Mode: Code 55)
Refer to “4.16 Acquisition of White Level Data and CCD Scanner Area Setting” in
Chapter 7, and perform the acquisition of white level data and CCD scanner area
setting.
■ Setting the Serial Number
(1) Connect the computer to the machine with the USB cable.
(2) Double-click the brmainte.exe file (maintenance utility) which has been copied in

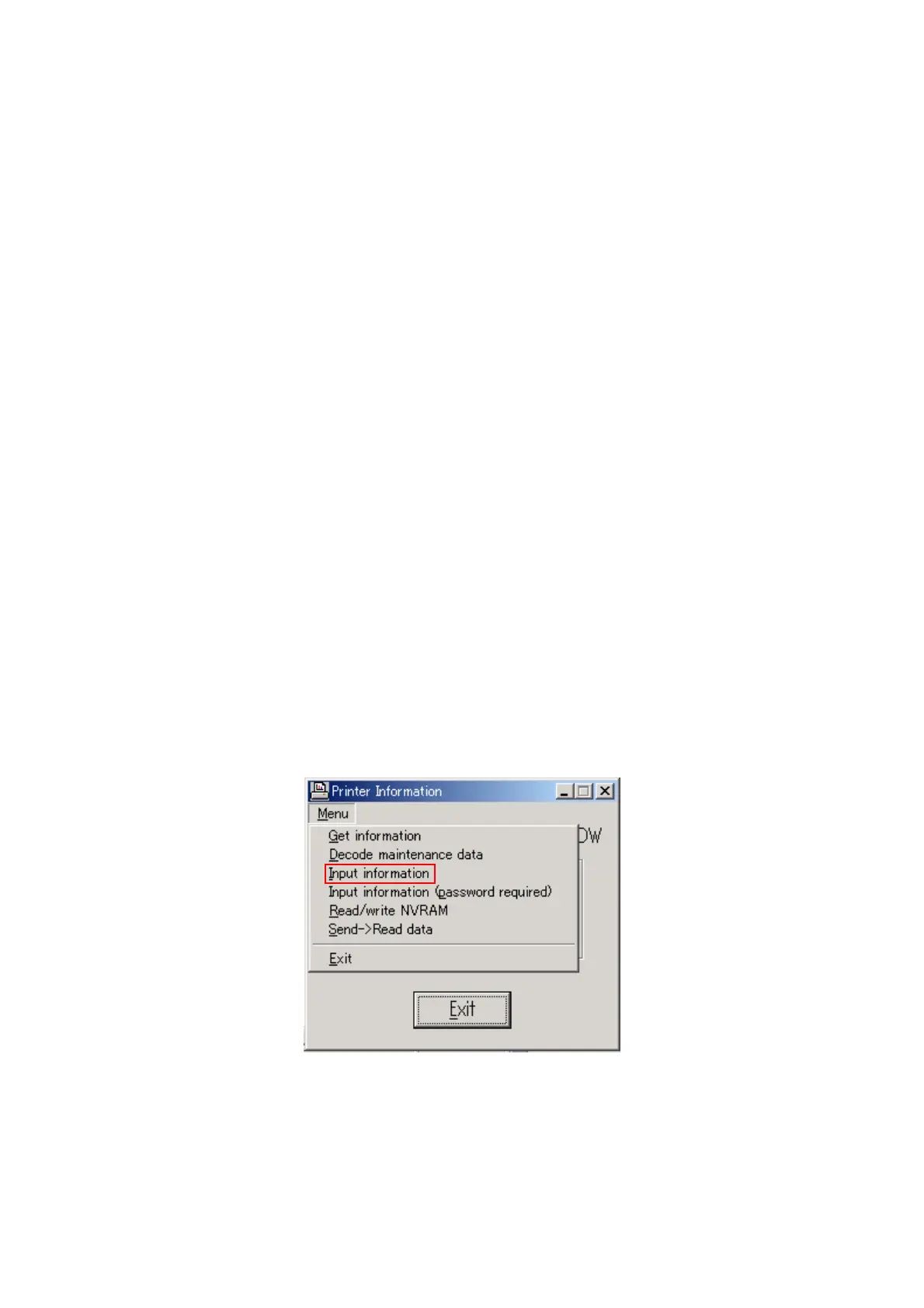

the folder to start. Select “Input Information” from Menu. Select the applicable
model name.

Brother MFC-8480DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	32 ppm
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Power supply type	AC
Weight (imperial)	40.3 lbs
Dimensions (WxDxH)	530.8 x 449.5 x 474.9 mm
Power requirements	110 - 240V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Standard media sizes	2.75'' - 8.5\
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows OS Mac OS
Package dimensions (W x D x H)	24.7 x 22.3 x 22.6 \
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Display	LCD
Market positioning	Business
Internal memory	64 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	30 dB
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, LLMNR, LPR/LPD, IPP/IPPS, FTP, HTTP/HTTPS, SSL/TLS, TFTP, SMTP, APOP, POP, SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD, CIFS, SNTP, NDP, RA, DNS, mDNS, ICMPv6
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18 W
Power consumption (average operating)	680 W
Package weight	21645 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	30000 pages per month
Recommended duty cycle	3500 pages per month
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	20 - 80 %
