Brother MFC-8480DN Service Manual

2-11
Confidential
 CIS model
The automatic document feeder (ADF) of the CIS model consists of the pick-up roller,
separation roller, paper feed rollers 1/2/3, eject roller, ADF motor, switch back sensor,
document rear sensor, document front sensors 1/2 and document eject sensor.
For further details on the sensors, see 3.6 Sensors position.

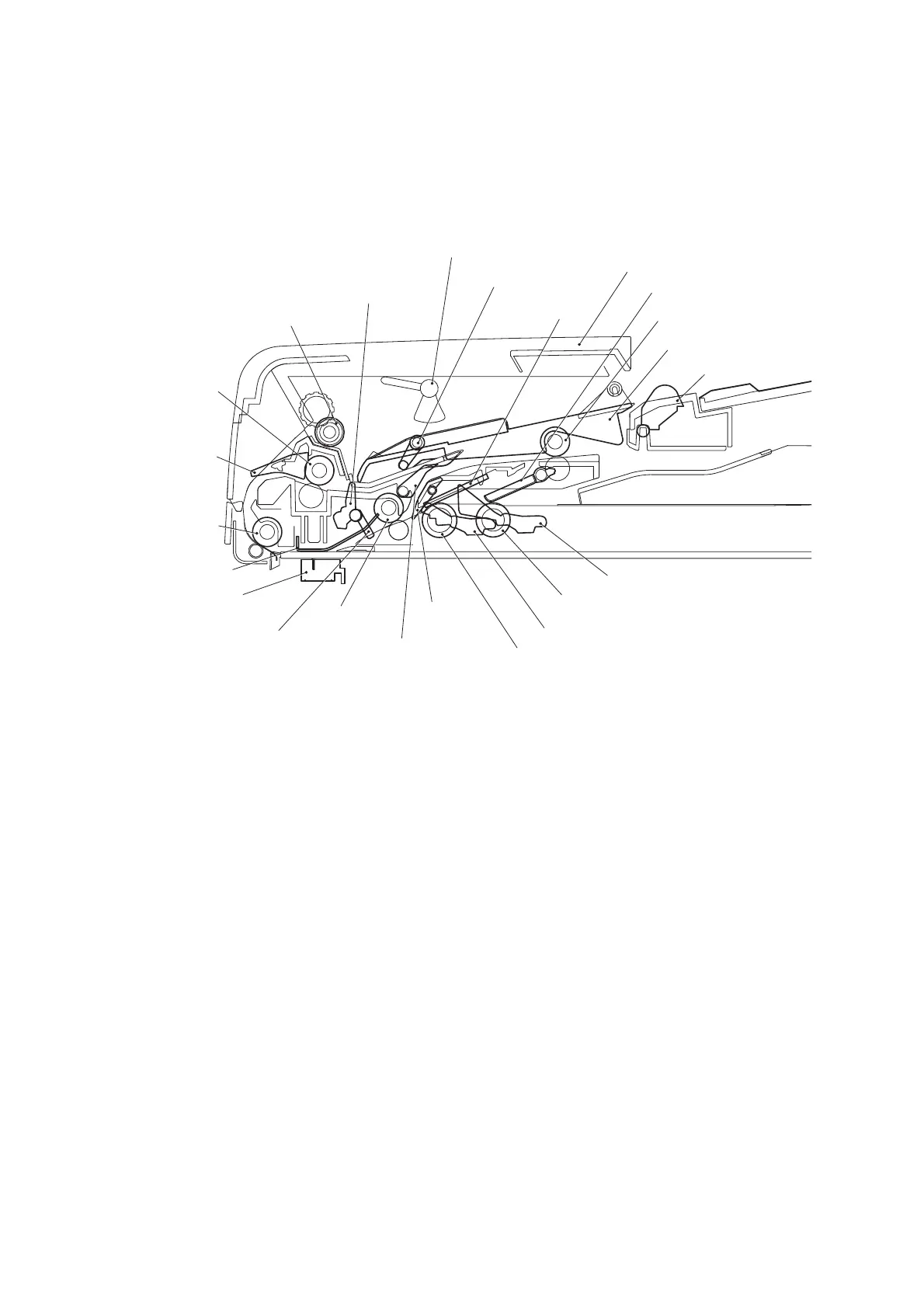

Fig. 2-10
The duplex scanning mechanism allows you to use the following two types of scanning,
“ADF scanning” and “document glass scanning”. These two scanning methods are
switched depending on whether the document front sensor 1 detects the document or not
when starting scanning.
However, in the case of the CCD model, there is the case that the “document glass
scanning” is given priority to over by a state of the document cover sensor (described
later).
Document front actuator 1
Document front actuator 2
Feed roller
Separation roller
Front flap
Document rear actuator
Feed roller 2
Switch back actuator
Switch back flap A
Feed roller 3
Switch back roller
Ejection flap
Document eject actuator
ADF cover
ADF cover open actuator
Separation flap cam
Exit roller
CIS unit
Document hold
Feed roller 1
Switch back flap B
Separation pad
Nip piece

Brother MFC-8480DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	32 ppm
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Power supply type	AC
Weight (imperial)	40.3 lbs
Dimensions (WxDxH)	530.8 x 449.5 x 474.9 mm
Power requirements	110 - 240V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Standard media sizes	2.75'' - 8.5\
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows OS Mac OS
Package dimensions (W x D x H)	24.7 x 22.3 x 22.6 \
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Display	LCD
Market positioning	Business
Internal memory	64 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	30 dB
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, LLMNR, LPR/LPD, IPP/IPPS, FTP, HTTP/HTTPS, SSL/TLS, TFTP, SMTP, APOP, POP, SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD, CIFS, SNTP, NDP, RA, DNS, mDNS, ICMPv6
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18 W
Power consumption (average operating)	680 W
Package weight	21645 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	30000 pages per month
Recommended duty cycle	3500 pages per month
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	20 - 80 %
