Brother MFC-8480DN Service Manual

2-15
Confidential
 CIS model
(1) Set the document face down into the document chute. When the machine starts
duplex scanning. The ADF motor is rotated clockwise, the pick-up roller draws the
document, and the separation roller and separation pad send a sheet of the
document to the ADF one by one from the top page of the stacked documents.
(2) The document is passed through the paper feed roller 1 and is passed over the CCD
module so that the document is scanned. In duplex scanning, the document is sent
to the paper feed roller 3 by the switch back flap A, because the switch back flap A
goes up. Then the document is sent for the specified distance by the switch back
roller, and the switch back roller is turned counter so that the document is drawn
again.

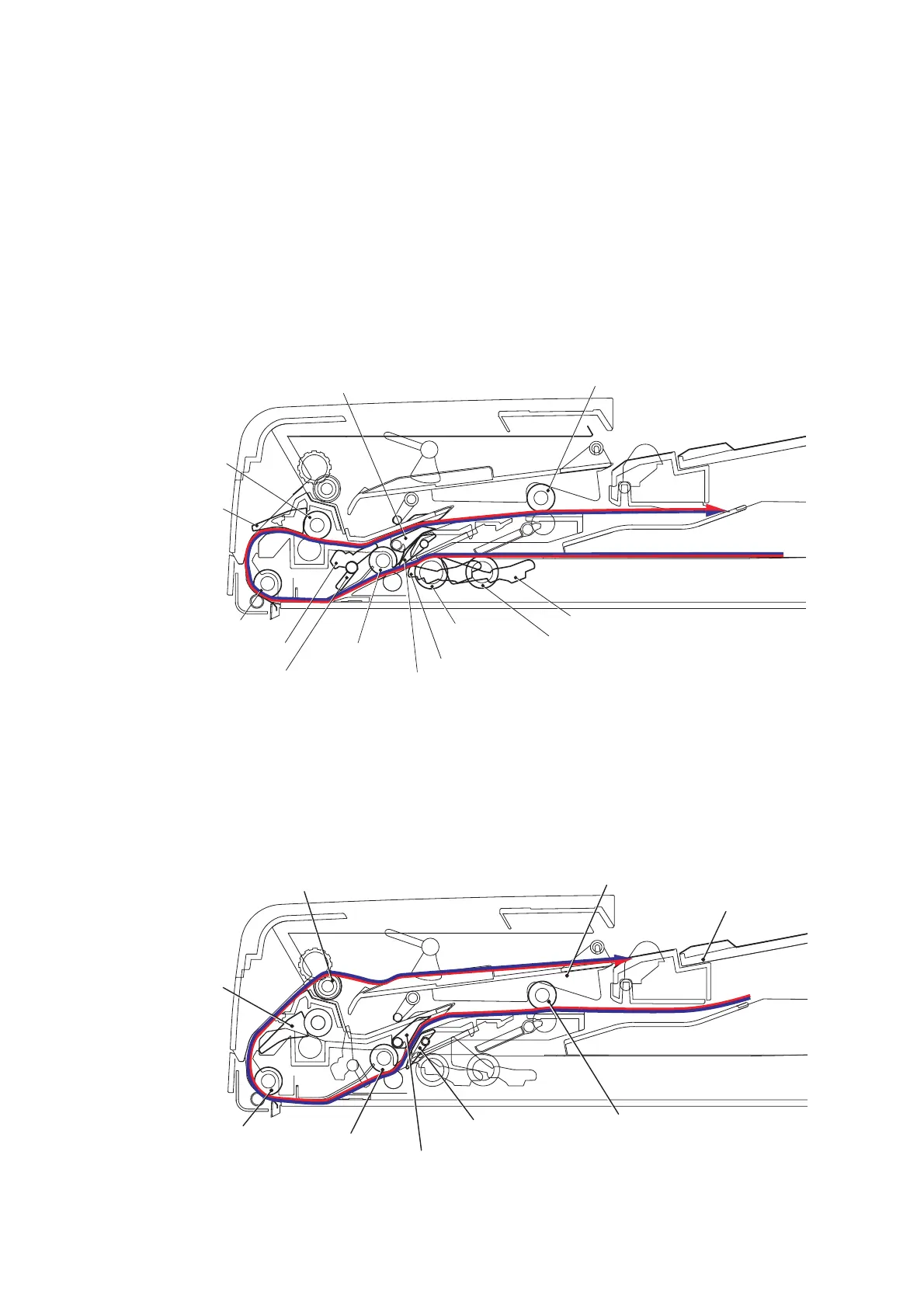

Fig. 2-16
(3) The drawn document is attached on the flap B and sent to the paper feed roller 1. At
this time, the opposite side of the document is faced-up so that the backside of the
document is scanned. The document is sent to the switch back roller again. The
document is sent to the eject roller , and then the document is sent to the document
eject tray, because the switch back flap A goes down.
Fig. 2-17
Document front actuator 1
Document front actuator 2
Feed roller
Separation roller
Front flap
Feed roller 1
Document rear actuator
Feed roller 2
Switch back actuator
Switch back flap A
Feed roller 3
Switch back flap B
Switch back roller
Ejection flap
Exit roller
Switch back flap B
Front flap
Switch back roller
Switch back flap A
Feed roller 1
Feed roller 2
Ejection tray

Brother MFC-8480DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	32 ppm
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Power supply type	AC
Weight (imperial)	40.3 lbs
Dimensions (WxDxH)	530.8 x 449.5 x 474.9 mm
Power requirements	110 - 240V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Standard media sizes	2.75'' - 8.5\
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows OS Mac OS
Package dimensions (W x D x H)	24.7 x 22.3 x 22.6 \
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Display	LCD
Market positioning	Business
Internal memory	64 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	30 dB
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, LLMNR, LPR/LPD, IPP/IPPS, FTP, HTTP/HTTPS, SSL/TLS, TFTP, SMTP, APOP, POP, SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD, CIFS, SNTP, NDP, RA, DNS, mDNS, ICMPv6
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18 W
Power consumption (average operating)	680 W
Package weight	21645 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	30000 pages per month
Recommended duty cycle	3500 pages per month
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	20 - 80 %
