Principal Parts

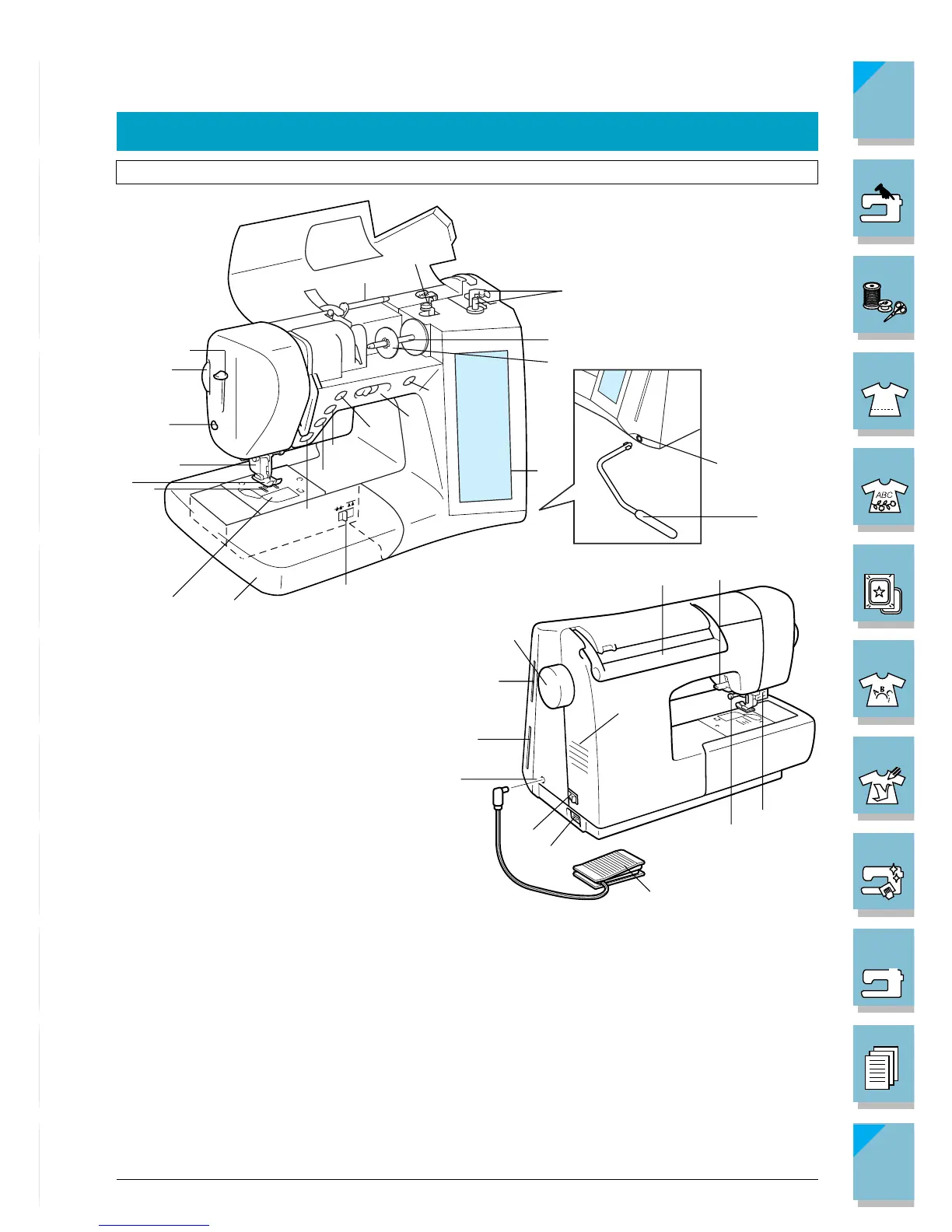

PRINCIPAL PARTS AND THEIR OPERATION
1 Needle threader lever ............. (P.1-35)
2 Presser foot dial ........................ (P.1-6)
3 Thread cutter ............................ (P.1-3)
4 Presser foot holder ........ (P.1-39, 1-42)
5 Presser foot ............................... (P.1-8)
6 Feed dogs ................................. (P.1-6)
7 Bobbin cover .......................... (P.1-31)
8 Flat bed attachment with accessory com-
partment ............................(P.1-5, 1-8)
9 “Start/Stop” button .................... (P.1-3)
= “Reverse/Reinforcement Stitch” button
................................................. (P.1-3)
A “Needle Position” button .......... (P.1-3)
B “Thread Cutter” button .............. (P.1-3)
C Sewing speed controller ............ (P.1-4)
D “Bobbin Winder” button ........... (P.1-4)
E Feed dog position switch .......... (P.1-6)
F L.C.D. (liquid crystal display) .. (P.1-13)
G Spool cap ...................... (P.1-25, 1-33)
H Spool pin ...................... (P.1-25, 1-33)
I Bobbin winder ........................ (P.1-27)
J Thread guide for bobbin winding
............................................... (P.1-27)
K Supplemental spool pin ............ (P.1-5)
L Knee lifter mounting slot ........... (P.1-6)
M Knee lifter ................................. (P.1-6)
N Handle
O Balance wheel .......................... (P.1-4)
P Embroidery card slot ............... (P.5-17)
Q Floppy disk drive slot .............. (P.5-18)
R Foot controller jack ................... (P.1-7)
S Main power switch ................. (P.1-12)
T Cord jack ................................ (P.1-12)
U Foot controller .......................... (P.1-7)
V Needle clamp screw ............... (P.1-44)
W Buttonhole lever .. (P.3-55, 3-58, 3-60)
X Presser foot lever ....................... (P.1-4)
Y Air vent
