Section 03 ENGINES
Subsection 05 (TOP END)
A32B0AA

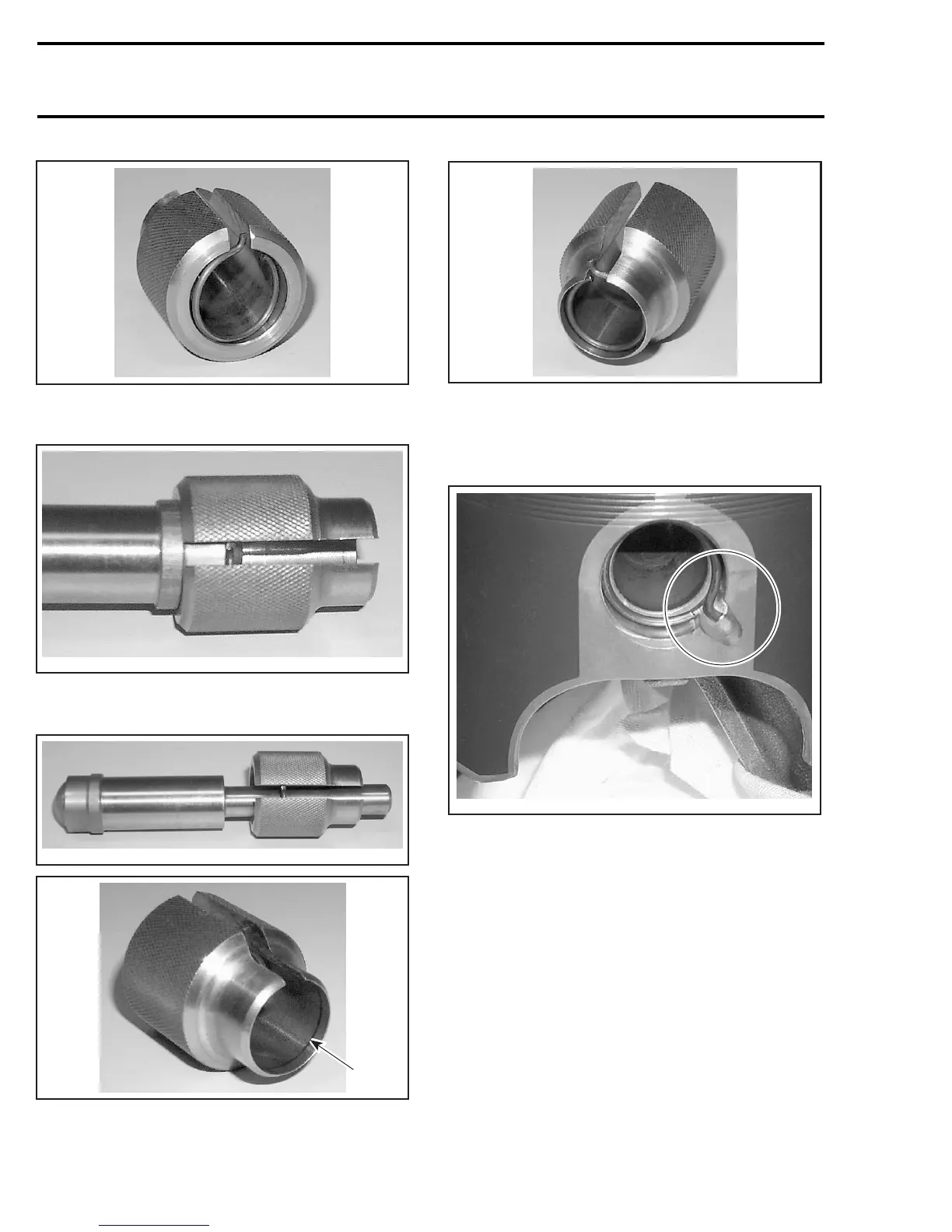

With round end of pusher, position circlip perpen-
dicular to the support axis.
A32B0BA
With the other end of the pusher, push circlip into
the support groove.
A32B0CA
A32B0DA
1
1. Groove
A32B0EA
CIRCLIP READY TO BE INSTALLED ON PISTON
Using a plastic hammer, tap pusher to insert circlip
in place. Take care to install new circlips with tab
toward top as per following photo.
A32C4BA
TAB TOWARD TOP
CAUTION: Always install new mono-hook cir-
clips. If circlip installation fails at the first at-
tempt, always retry with a new one as on a sec-
ond attempt circlip will lose its normal retain-
ing capabilities.
CAUTION: Circlips must not move freely after
installation; if so, replace them.
377 and 552 Engines
Apply a thin layer of Loctite 518 (P/N 293 800
038) to crankcase mating surface of base gas-
ket. Choose the right gasket thickness accord-
ing to combustion chamber volume. Install it on
crankcase. Apply a thin layer of Loctite 518 to gas-
ket surface area.
90 mmr2005-072
