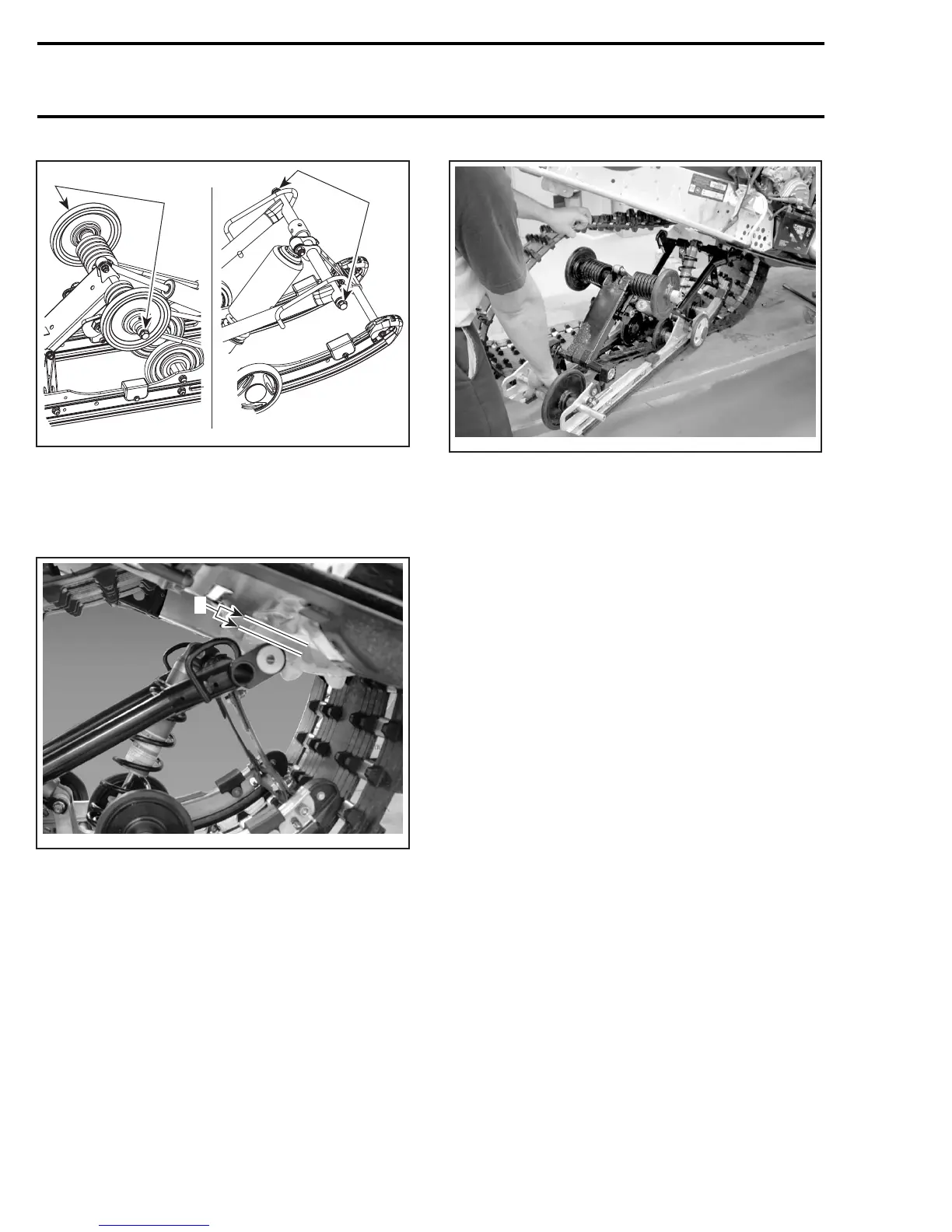

Section 09 REAR SUSPENSION
Subsection 02 (SC 3 SUSPENSION)
A33F5FA
1
2
TYPICAL
1. Rear arm bolts
2. Front arm bolts
Lift rear of vehicle until front arm as enough clear-
ance to pass underneath tunnel.
A33F5VA
1
TYPICAL
1. Enough clearance
A33F5WA
TYPICAL — REMOVE SUSPENSION
SUSPENSION INSTALLATION
Installation is reverse of removal procedure. Pay
attention to the following details.
Inspect track thoroughly before reinstalling sus-
pension. Refer to TRACK.
Install assembled suspension into track with front
portion first.
Adjust track tension.
FRONT ARM REMOVAL
NOTE: Front arm can be removed with suspen-
sion assembly in place.
Lift rear of vehicle and support it off the ground.
Remove the following:
– shock upper bolt and nut
– front arm lower bolts and washers
– unfasten one end of stopper strap(s)
– remove front arm upper bolts, nuts and wash-
ers.
Remove front arm.
404 mmr2005-095
