Section 10 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
1
2
A33G0HB
A

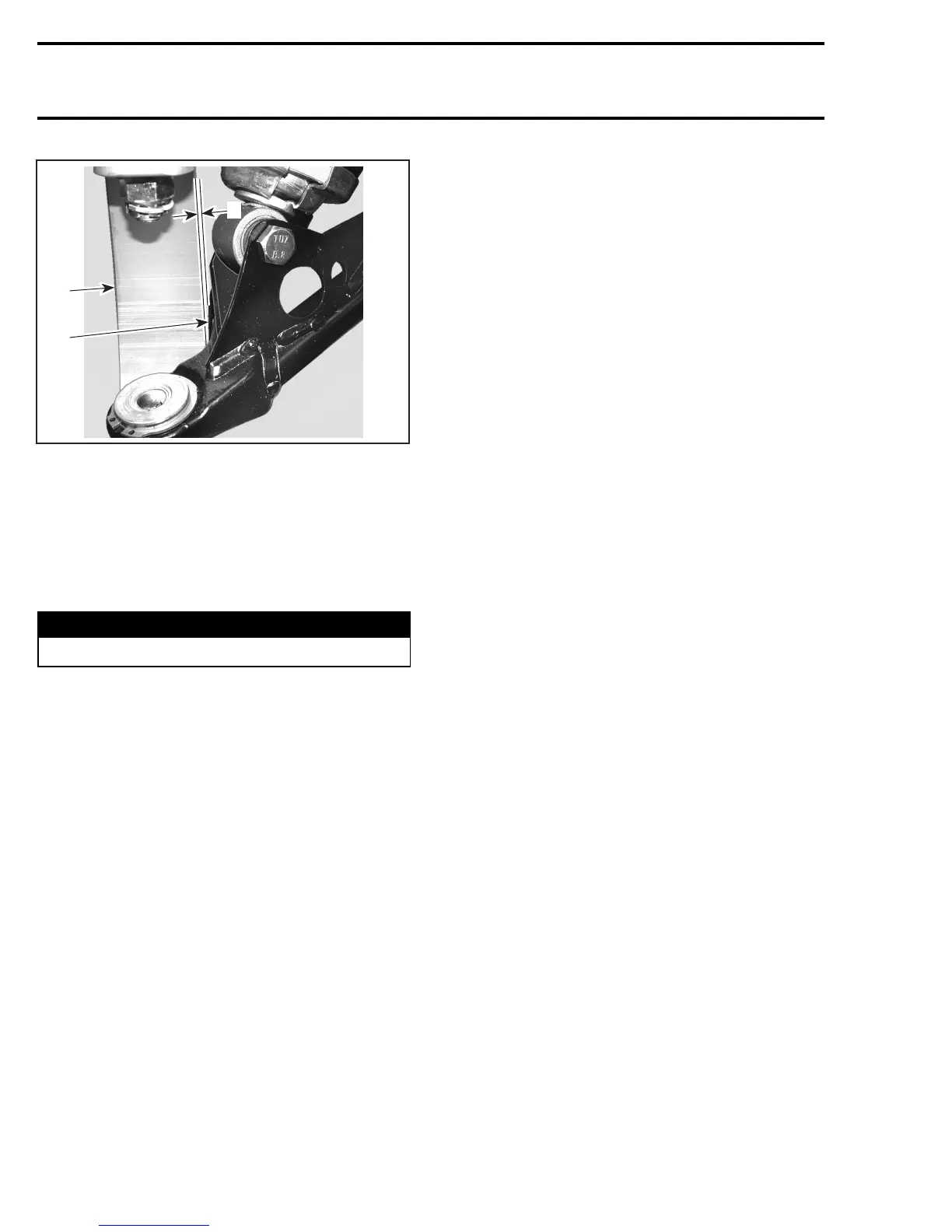

RIGHT HAND SIDE SHOWN
1. Ski leg
2. Lower arm
A. 2 mm (5/64 in)
Ifthedistanceismorethanthespecifieddistance
on one side then check for bent parts.
LUBRICATION
WARNING
Do not lubricate throttle cable or housing.
Use suspension synthetic grease (P/N 293 550
033) on:
– Grease fitting no. 16 of LH and RH swivel arms.
– Lower steering column bushing.
Use BOMBARDIER LUBE (P/N 293 600 016) on:
– Tie rod ball joints.
446 mmr2005-097
