Section04FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMP)
FUEL TANK
Removal
Remove seat, refer to BODY.
Remove fuel tank cap.

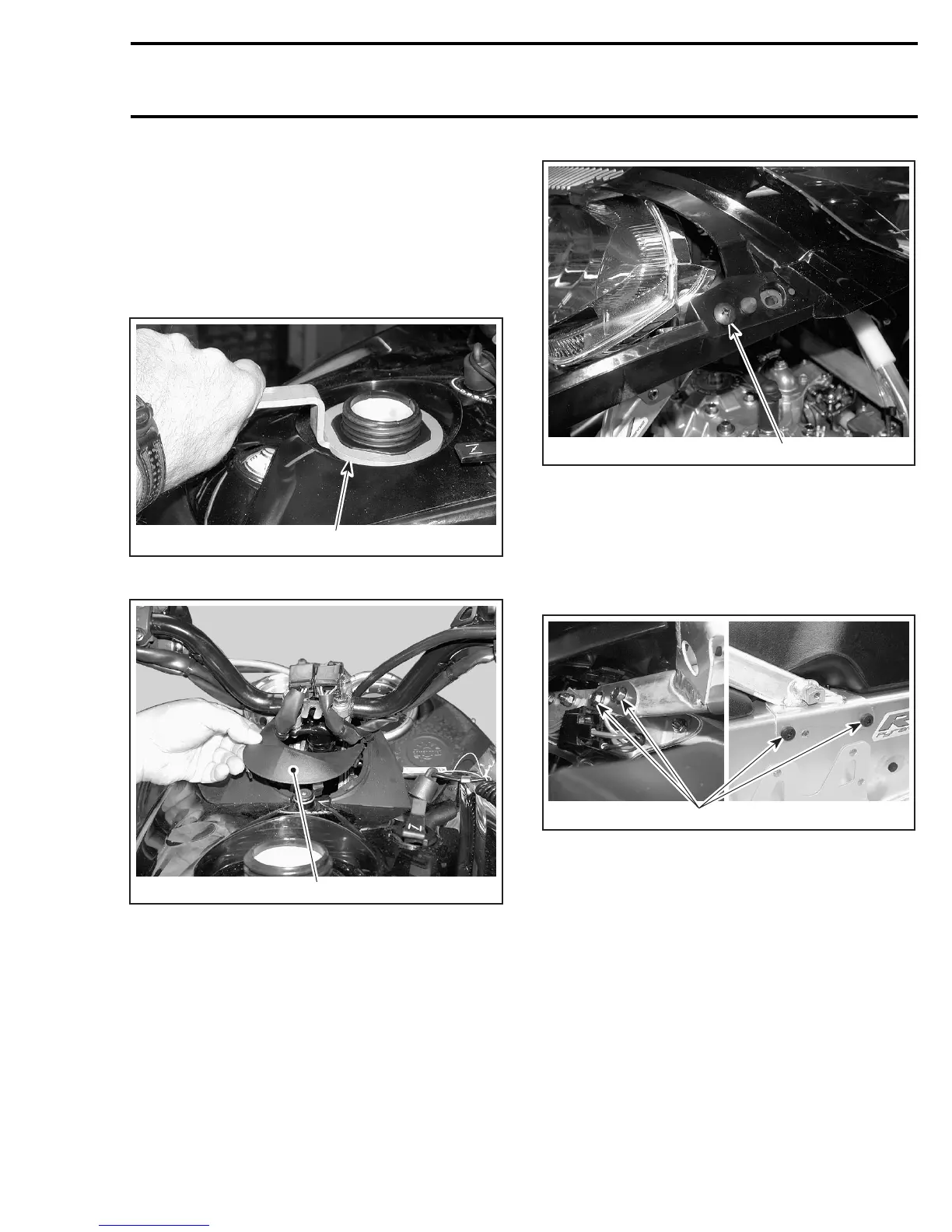

Remove filler neck plastic nut using wrench
(P/N 529 035 891).
529 035 891
A33C1TA
Unclip and remove console center trim cap.
1
A33F0XA
1. Remove this cap
Remove retaining screw on both sides of cen-
ter console; this will allow lifting of console just
enough to ease tank removal.
1
A33F0YA
1. Remove this screw on both sides
Remove both sides fuel tank aluminum braces:
– by removing and discarding lower M8 x 20 Torx
screws (2 on each side);
– and by removing upper M8 flanged hexagonal
bolts (2 on each side) and discarding their nuts.
1
A33F0ZA
1. Remove and discard lower Torx screws on both sides — remove
upper flanged hexagonal bolts and discard their nuts on both sides
Empty fuel tank and install a hose pincher on fuel
line no. 1 as shown in following photo.
mmr2005-078 169
