Section 10 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
A33F27A

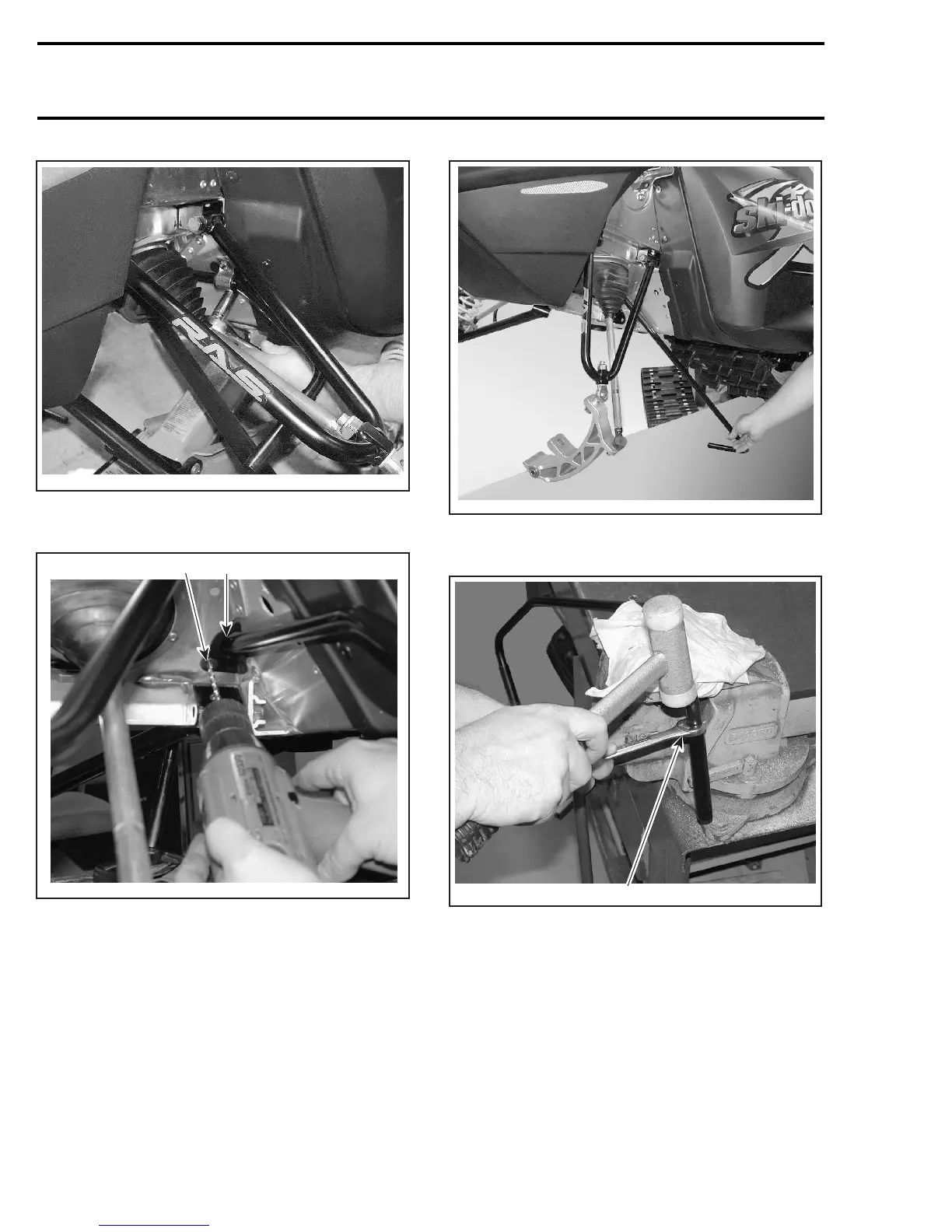

Using a 4.8 mm (3/16 in) drill bit, drill rivet no. 24
out. Remove cap.
1
A33F23A
2
1. Drill rivet out with a 4.8 mm (3/16 in) drill bit
2. Cap
Lift front of vehicle enough so that stabilizer bar
no. 7 can be rotated downward to allow to slide it
out.
A33F24A
To remove bushing no. 25,usea13mm(1/2in)
open wrench and tap bushing out as shown.
1
A33F25A
1. Use a 13 mm (1/2 in) open wrench to push bushing out
INSPECTION
Check all plastic bushings for wear. Replace as
required.
Check condition of ski leg no. 12. Replace as re-
quired.
Check for straightness of lower and upper arms.
Replace as required.
