Section 07 ELECTRICAL SYSTEM
Subsection 02 (CHARGING SYSTEM)
If the charger ammeter shows no change in cur-
rent after 5 minutes, you need a new battery. Cur-
rent flowing into the battery at high voltage can
become excessive. Monitor amperage and adjust
voltage as necessary to keep current at the bat-
tery’s standard amp rating. Charge for approxi-
mately 20 hours.
Installation
Reinstall battery and secure bracket properly.
Connect RED (+) cable it to positive battery termi-
nal. Connect RED wire (coming from 30 A fuse).
Connect BLACK (–) cable LAST.

WARNING
Battery BLACK (–) cable must always be dis-
connected first and connected last.

WARNING
Never charge or boost battery while installed
on vehicle.
Cover the RED (+) terminal with rubber boot.
Apply silicone dielectric grease (P/N 293 550 004)
on battery posts and connectors.

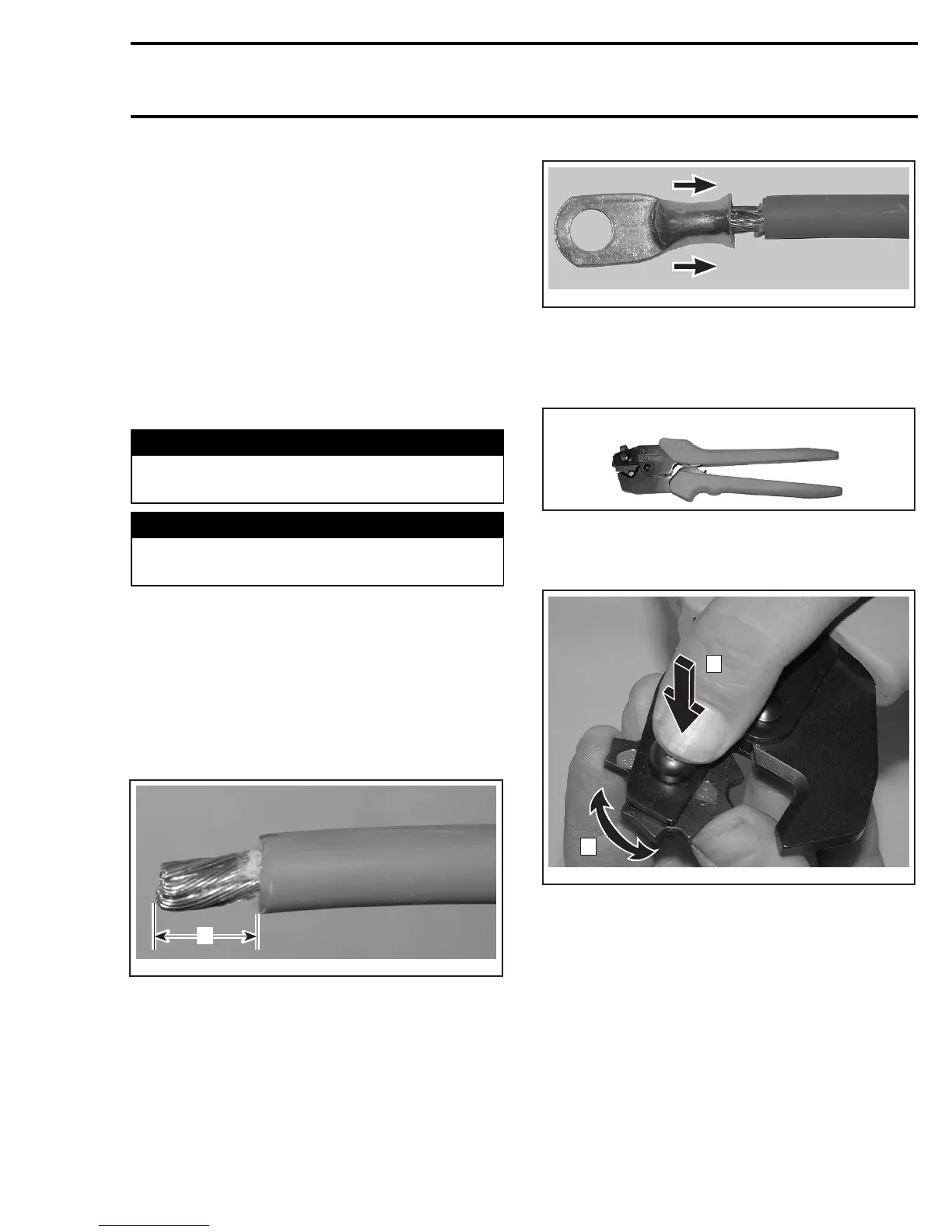

CABLE TERMINAL INSTALLATION
Carefully strip the wire approximately to 10 mm
(1/2 in) in length, using a wire stripping tool or
sharp blade/knife.
A32E2QA
A
A. 10 mm (1/2 in)
NOTE: Make sure not to cut wire strands while
stripping the wire.
Install the appropriate terminal on the wire accord-
ing to the requirement. Refer to appropriate parts
catalog.
A32E2RA
INSTALLATION OF TERMINAL
Follow the instructions provided with the crimp pli-
ers (P/N 529 035 730) to select the proper position
of the tool.
529 035 730
NOTE: Different wires require different crimp pli-
ers settings, so make sure to follow the instruction
supplied with the tool.
2
A32E2SA
1
POSITIONING THE CRIMP PLIERS
1. Press
2. Rotate
After positioning the crimp pliers, crimp the termi-
nal already installed on wire.
