Section 10 STEERING/FRONT SUSPENSION
Subsection 02 (FRONT SUSPENSION)
A32F3XA
TYPICAL

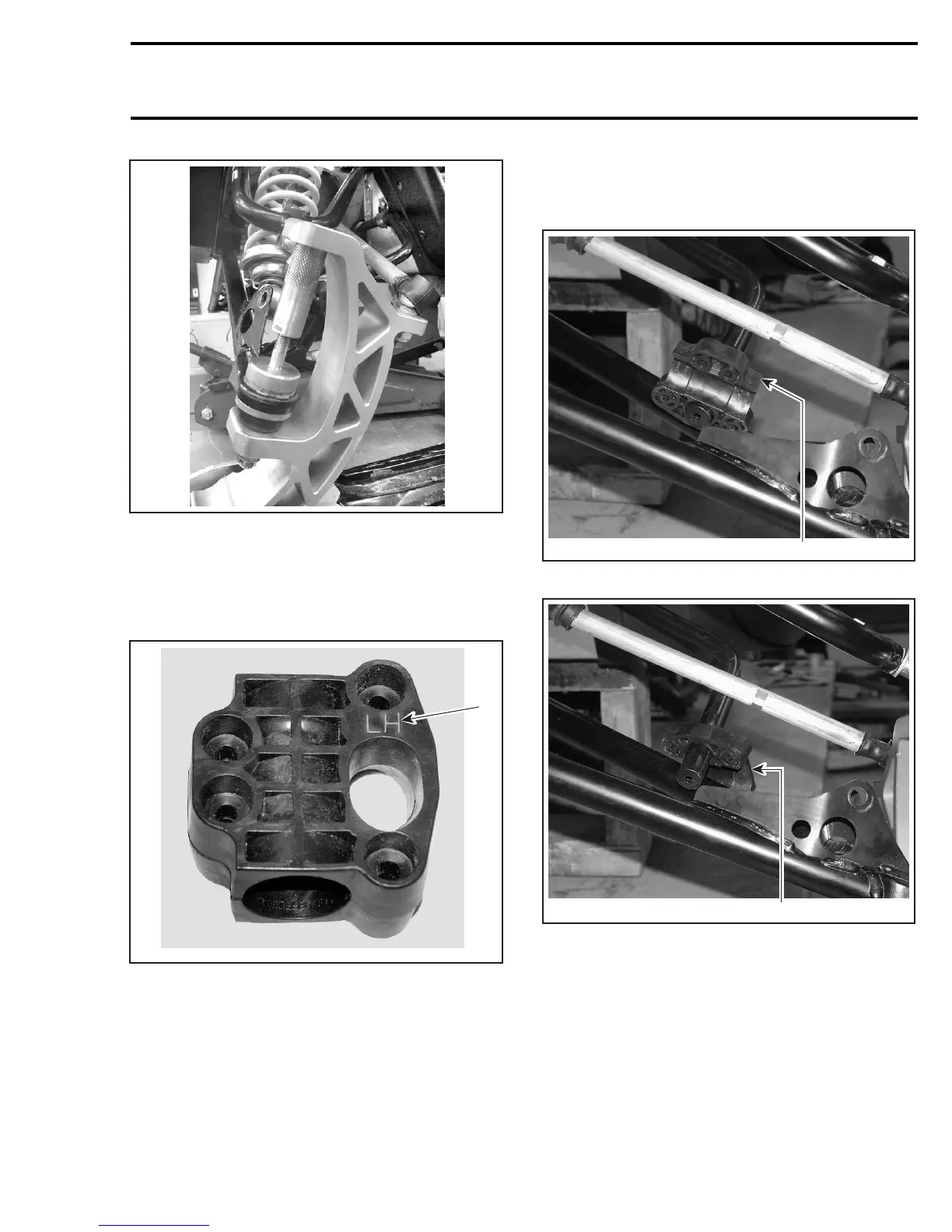

Stabilizer Bar
Notice that LH and RH sliding blocks are different.
Look for their molded identification with LH or RH
letters.
1
A33F2DA
1. Molded identification for proper side installation
To install sliding blocks:
– Temporarily rotate the rear block by 180°.
– Insert on stabilizer bar end and push beyond the
lower arm.
– Rotateblockbackby180° to its normal position.
– Install the other block half.
– Install screws and nuts.
– Ensure blocks slide easily when compressing
and releasing suspension.
1
A33F2EA
1. Temporarily rotate block by 180° for its insertion
1
A33F2FA
1. Push block on bar end beyong lower arm then rotate
back to its normal position
Shock Absorber
Ensure to reinstall shock absorber in the proper
position according to model.
mmr2005-098 457
