Section 03 ENGINES
Subsection 08 (COOLING SYSTEM)

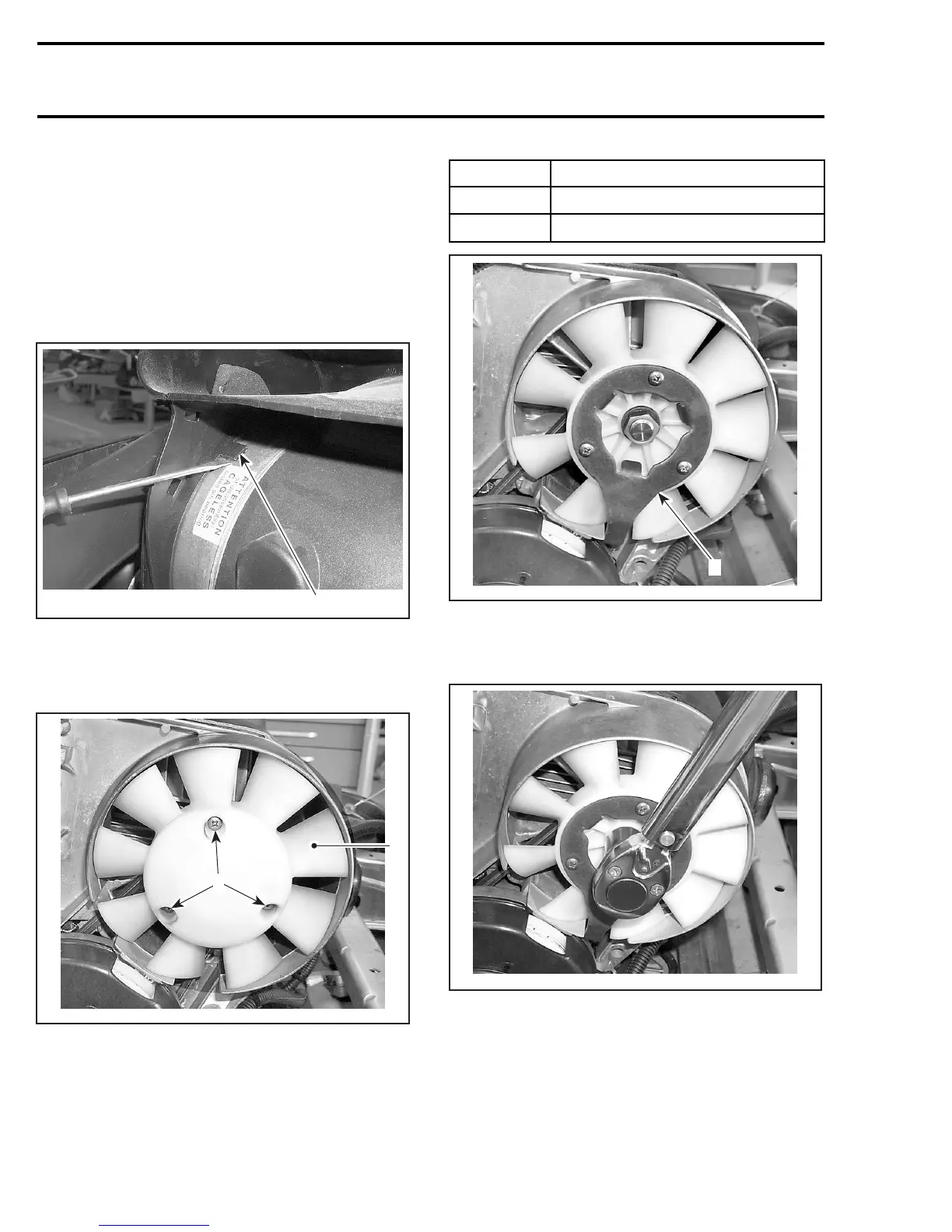

COOLING FAN REMOVAL AND
INSTALLATION
Remove the tuned pipe to gain access. Refer to
EXHAUST SYSTEM.
Unscrew the 2 screws no. 1 and no. 2 of inlet duct
no. 3. Remove the inlet duct by unclipping the
tabs using a flat screwdriver from the engine fan
housing.
A32C6LA
1
TYPICAL
1. Tab
Unscrew the screws no. 4 to remove the fan cov-
er no. 5.
2
A32CC8A
1
1. Screws
2. Cover
To remove or install fan pulley retaining nut no. 6,
lock fan pulley with special holder wrench and 3
screws as per following table:
ENGINE TOOL
377
Holder wrench (P/N 420 876 357)
552
Holder wrench (P/N 529 036 006)
A32CC9B
1
1. Holder wrench
At assembly, torque nut no. 6 to 48 N•m
(35 lbf•ft).
A32CCAA
TYPICAL
COOLING FAN BEARING
REPLACEMENT
Remove cooling fan as explained in this section.
138 mmr2005-074
