Section 08 DRIVE SYSTEM
Subsection 02 (DRIVE PULLEY)
A32D2WA

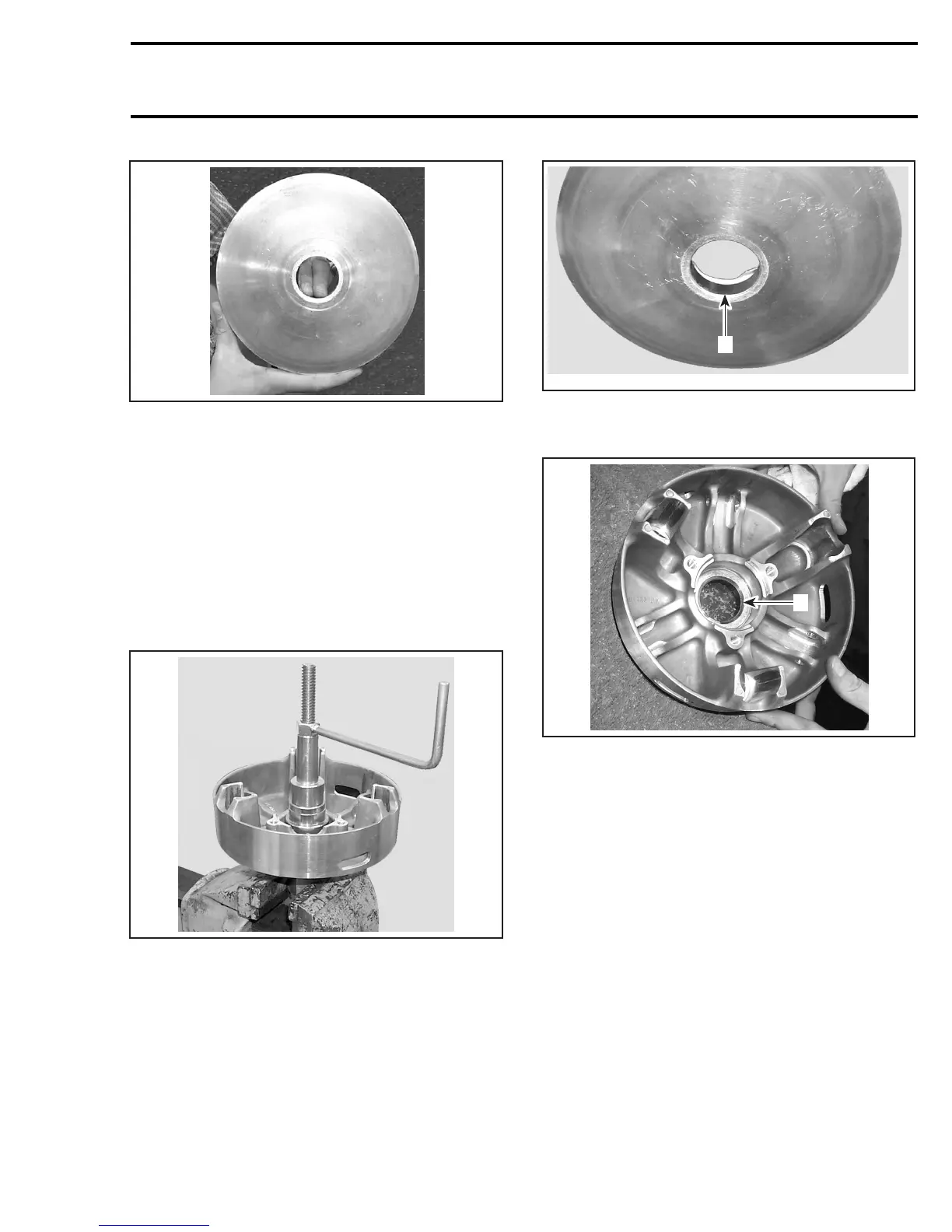

Clean sliding half bushing mounting surface with
pulley flange cleaner (P/N 413 711 809).
To install a new bushing, secure the spring com-
pressor (P/N 529 035 524) in a vice and mount the
sliding half.
Apply Loctite 609 (P/N 413 703 100) on the outside
of bushing face then insert the bushing from inner
side of sliding half.
Mount the sliding half bushing remover/installer
(P/N 529 035 931) with side marked “IN” to press
in a new bushing.
A32D2XA
NOTE: Make sure that the bushing is well seated
on the sliding half.
A32D2YA
1
1. Bushing
Install the circlip.
1
A32D2ZA
1. Circlip
Spring Cover Bushing Replacement
Under normal use there is no need to replace this
bushing no. 15.
In case of replacement, it’s recommended to re-
place spring cover ass’y.
ASSEMBLY
NOTE: This drive pulley is lubrication free. Do not
lubricate any component.
Ring Gear
Cleanringgearno. 5 and the inner threads of fixed
half no. 4.
Apply Loctite 271 (P/N 293 800 005) on ring gear
screw threads and then torque.
mmr2005-087 333
