Section 03 ENGINES
Subsection 02 (EXHAUST SYSTEM)
TUNED PIPE
Identification
Each tuned pipe is identified by a number. To
use the proper tuned pipe with the proper vehi-
cle, check the number on the welded clamp at the
end of tuned pipe. This number depicts the 6 last
numbers of BRP part number.

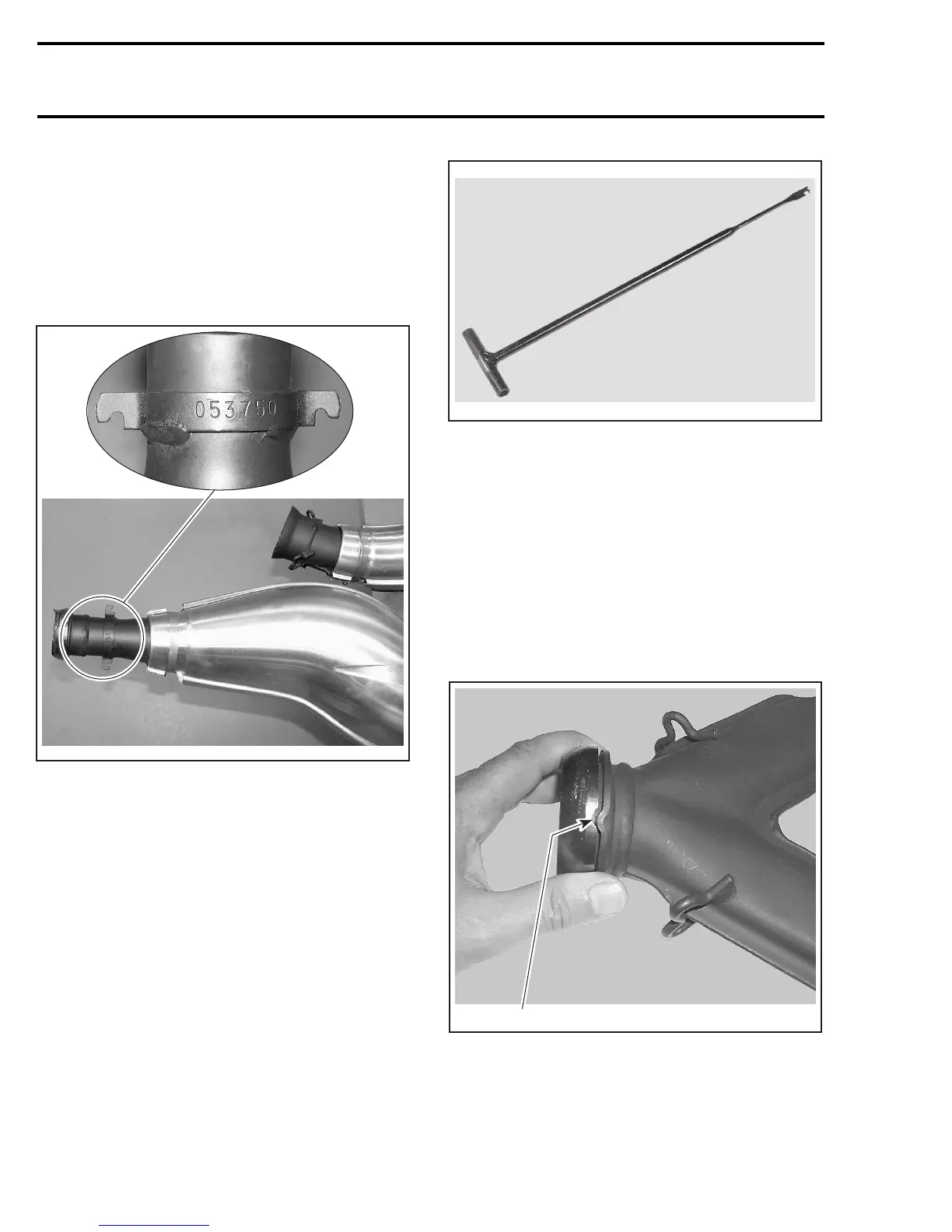

A33C2LA
TYPICAL
Removal
Open hood and right side panel.
Remove:
– all exhaust springs no. 1 using exhaust spring
installer/remover (P/N 529 035 401)
A01B58A
– tuned pipe no. 2
– exhaust gasket no. 3 and no. 4 if applicable.
Inspection
Check:
– tuned pipe shield for damages
– tuned pipe ends for cracks or damages.
Installation
Install doughnut shaped exhaust gasket no. 3 with
both of its notches aligned with Y-manifold protru-
sions.
1
A32C66A
1. Align notches
If the gaskets are damaged, replace them.
