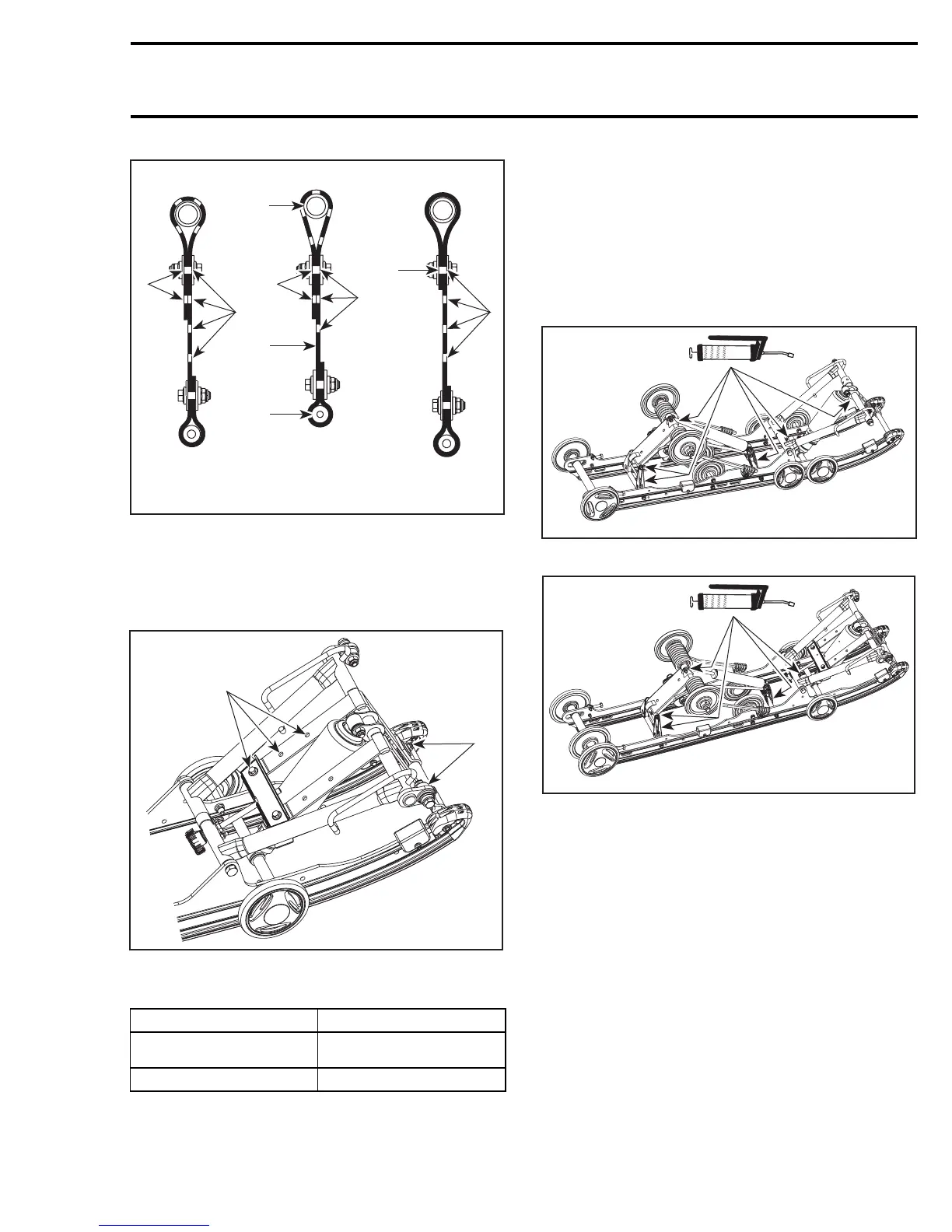

Section 09 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)
A33F5GA
Position
4-2
Position
3-2
Position
4-1
BAC
1
3
2
FAN COOLED MODELS
1. Front arm (top)
2. Front axle
3. Rear of vehicle
A. GTX/Expedition
B. Summit
C. GTX (EUR)/Summit (EUR)
A33F58B
2
1
TYPICAL — SUMMIT LIQUID COOLED MODELS
1. No adjustment possible
2. 3 adjustments possible
DESCRIPTION TIGHTENING TORQUE
Stopper strap nuts
(on Summit strap adjuster)
21 N•m(15lbf•ft)
Stopper strap nuts 11 N•m(97lbf•in)
RIDE ADJUSTMENT
Refer to the appropriate Operator’s Guide.
LUBRICATION
Lubricate front and rear arms at grease fittings
using suspension synthetic grease (P/N 293 550
033).
A33F5CA
EXPEDITION/GTX/SUMMIT FAN COOLED MODELS
A33F5DA
SUMMIT LIQUID COOLED MODELS
mmr2005-094 393
