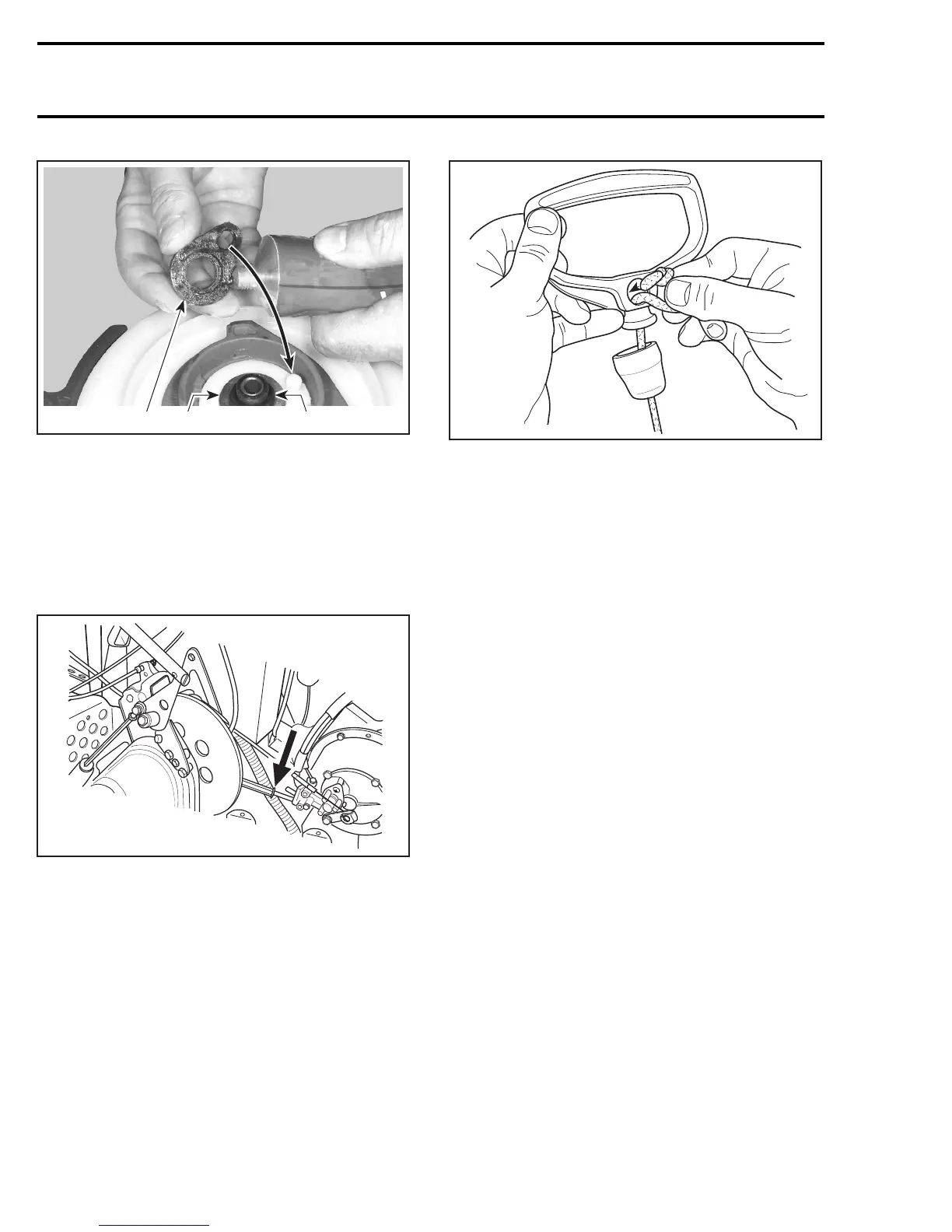

Section 03 ENGINES
Subsection 09 (REWIND STARTER)
A32C6EA
31 2
1. Step collar
2. O-ring
3. Locking element
Position a new push nut no. 13.
INSTALLATION
Thread starter rope no. 6 through rope guide when
applicable.
A03C0VA
TYPICAL
Reinstall rewind starter assembly on engine.
Prior to installing starter grip no. 15 on new rope,
it is first necessary to fuse the rope end with a
lit match. Pass rope through starter grip and tie
a knot in the rope end. Fuse the knot with a lit
match then insert rope end down and pull the
starter grip over the knot.
A01C18A
TYPICAL
Fan Cooled Models Only
Reinstall oil pump with gear case (552 engine).
Refer to LUBRICATION SYSTEM.
154 mmr2005-075
