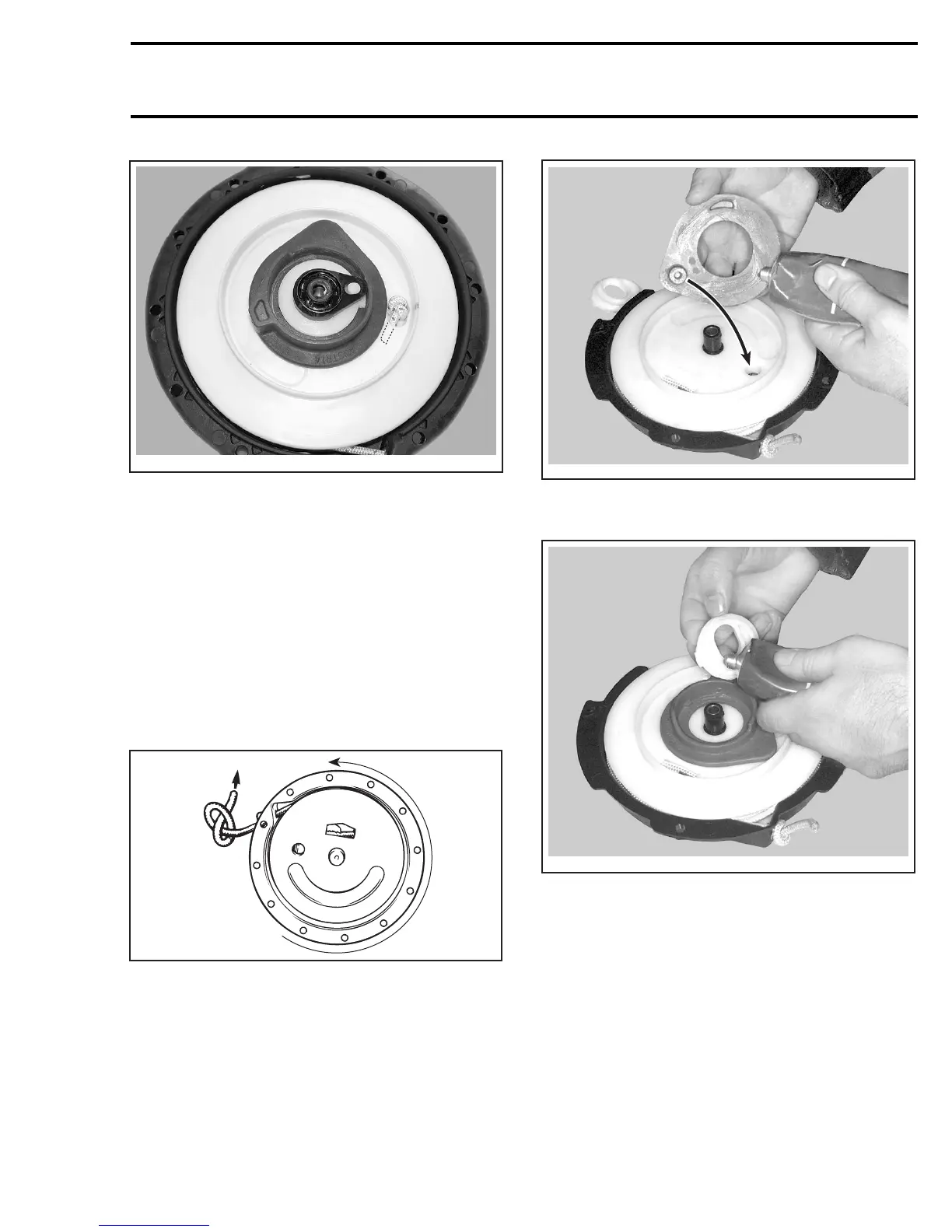

Section 03 ENGINES
Subsection 09 (REWIND STARTER)
Callout
A32C6IA
FREE PORTION INSERTED INTO SHEAVE
Lubricate housing post with silicone compound
grease. Install sheave.
To adjust rope tension:
Wind rope on sheave and place rope sheave into
starter housing making sure that the sheave hub
notch engages in the rewind spring hook.
Rotate the sheave counterclockwise until rope
end is accessible through rope exit hole. This will
give 1/2 turn of preload.
Pull the rope out of the starter housing and tem-
porarily make a knot to hold it.
A01C0CA
TYPICAL
Lubricate pawl no. 8 with Molykote PG 54
(P/N 420 899 763) then install over rope sheave.
A32C6CA
Lubricate pawl lock no. 9 with Molykote PG 54
(P/N 420 899 763). Install over pawl.
A32C6DA
Install step collar no. 10 with its sleeve first. Lu-
bricate a new O-ring no. 11 and locking element
no. 9 with Molykote PG 54 (P/N 420 899 763). In-
stall over pawl lock.
mmr2005-075 153
