Section 03 ENGINES
Subsection 09 (REWIND STARTER)

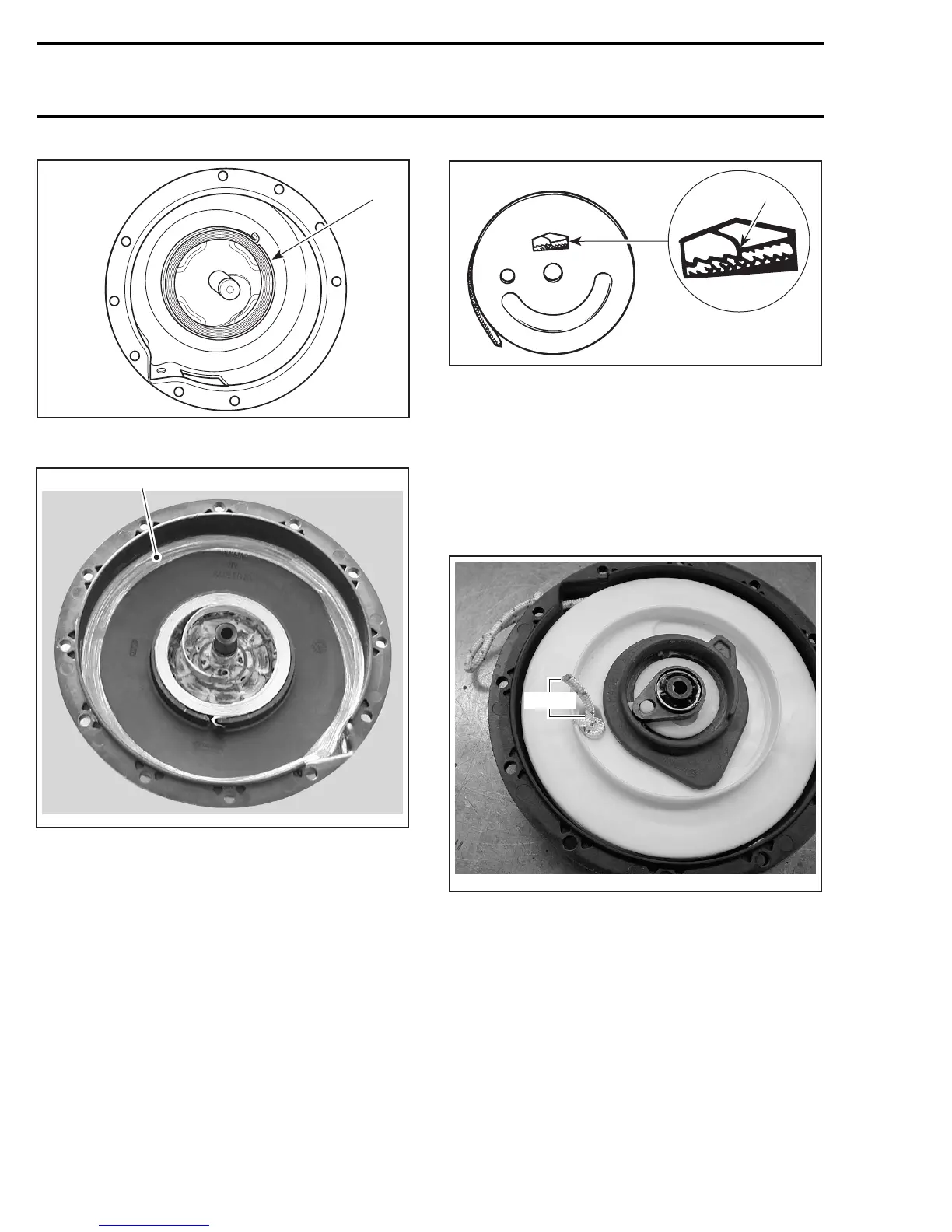

A01C14A
1
TYPICAL
1. Molykote PG 54 inside spring guide
1
A32C2AA
1. Molykote PG 54 applied 1 cm (1/2 in) wide on bottom of housing
CAUTION: The use of standard multipurpose
grease could result in rewind starter malfunc-
tion.
Fan Cooled Models Only
To install rope no. 6, insert rope into sheave no. 5
orifice and lock it with the key no. 7 as illustrated.
A01C15A
1
1. Push to lock
Lubricate housing post with silicone compound
grease. Install sheave.
Liquid Cooled Models Only
To install rope no. 6, insert rope into sheave no. 5
orifice and lock it by making a knot, leaving behind
a free portion of about 25 mm in length. Fuse rope
end with a lit match and insert it into sheave.
A32C6HA
25 mm
FREE PORTION
152
mmr2005-075
