Section 09 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)
DESCRIPTION TIGHTENING TORQUE
Stopper strap nuts
(on Summit strap adjuster)
21 N•m(15lbf•ft)
Stopper strap nuts 11 N•m(97lbf•in)

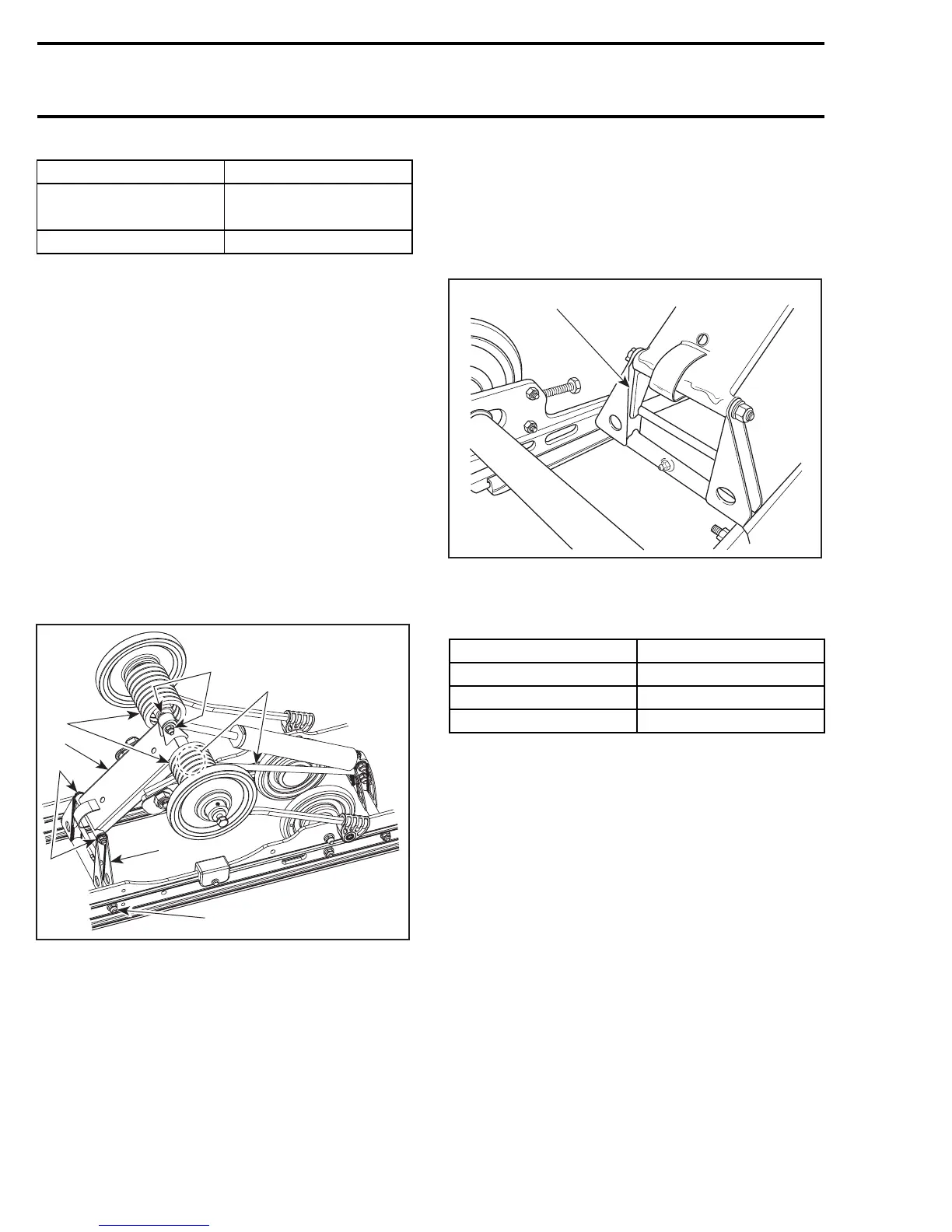

REAR ARM/PIVOT ARM REMOVAL
NOTE: Rear arm can be removed with suspension
in place.
For rear arm removal, remove the following:
– shock upper bolt and nut
– throttle rod upper bolt and nut
– rear springs (refer to procedure above in this
section)
– screws and washers holding rear arm to pivot
arm
Remove rear arm.
For pivot arm removal, remove the following:
– bolt, nut and washers holding pivot arm to run-
ners
Remove pivot arm.
A33F59A
2
1
3
5
4
7
6
TYPICAL
1. Shock upper bolt and nut
2. Throttle rod upper bolt and nut
3. Rear springs
4. Rear arm/pivot arm screws and washers
5. Rear arm
6. Pivot arm/runners bolts, nuts and washers
7. Pivot arm
REAR ARM INSTALLATION
Installation is reverse of removal procedure. Pay
attention to the following details.
At installation, rear arm stroke limiter must be on
rear side.
A03F13A
1
1. Stroke limiter on rear side
Respect the following tightening torque specifica-
tions:
DESCRIPTION TIGHTENING TORQUE
Locking ring set screw 2.5 N•m(22lbf•in)
Rear arm shock upper nut 19.5 N•m (173 lbf•in)
Throttle rod upper nut 19.5 N•m (173 lbf•in)
STOPPER STRAP
Inspect strap for wear or cracks, bolt and nut for
tightness. If loose, inspect hole for deformation.
Replace as required.
Make sure it is attached through proper hole from
the end.
392 mmr2005-094
