Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

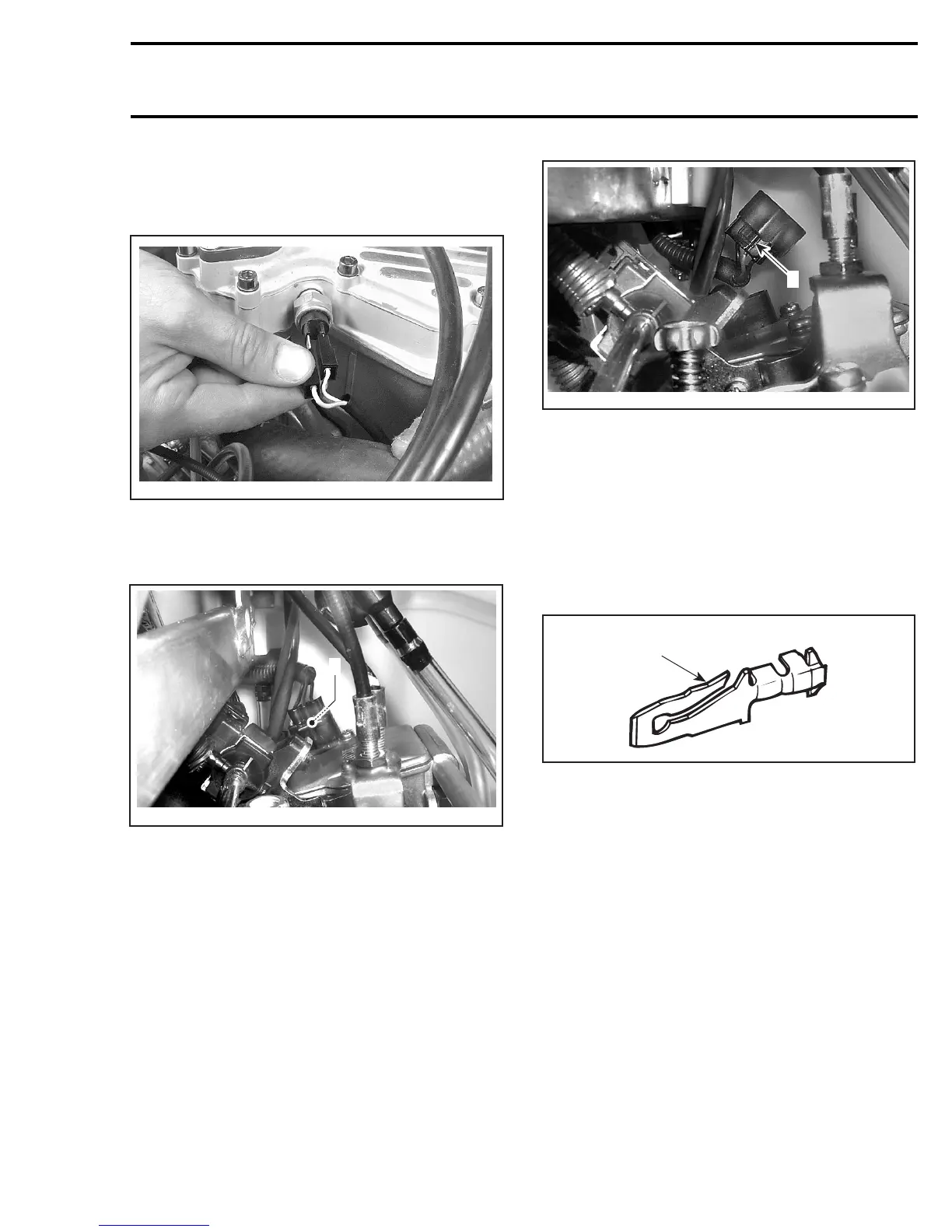

UNPLUGING CONNECTORS
Always unplug connectors by pulling on housing
not on wire.
A06E1PA
TYPICAL
Throttle Position Sensor (TPS)
Connector
A33I0QA
1
TPS CONNECTOR
1. Release button
To disconnect the Sumitomo TPS connector from
carburetor, press the release button on the other
side of the connector.
A33I0RA
1
TPS CONNECTOR UNPLUGGED
1. Release button
TAB AND RECEPTACLE
CONNECTORS REMOVAL
Tab Connector
It is locked in its housing by a spring tab on its side.
Removal is done by squeezing this tab.
A00E1DA
1
TAB CONNECTOR
1. Locking tab
To remove:
– Insert a screwdriver or Snap-on TT 600-5 from
opposite side of wire and pry locking tab.
– While holding locking tab pried, pull connector
toward wire side.
