Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
A00E1EA
2
1

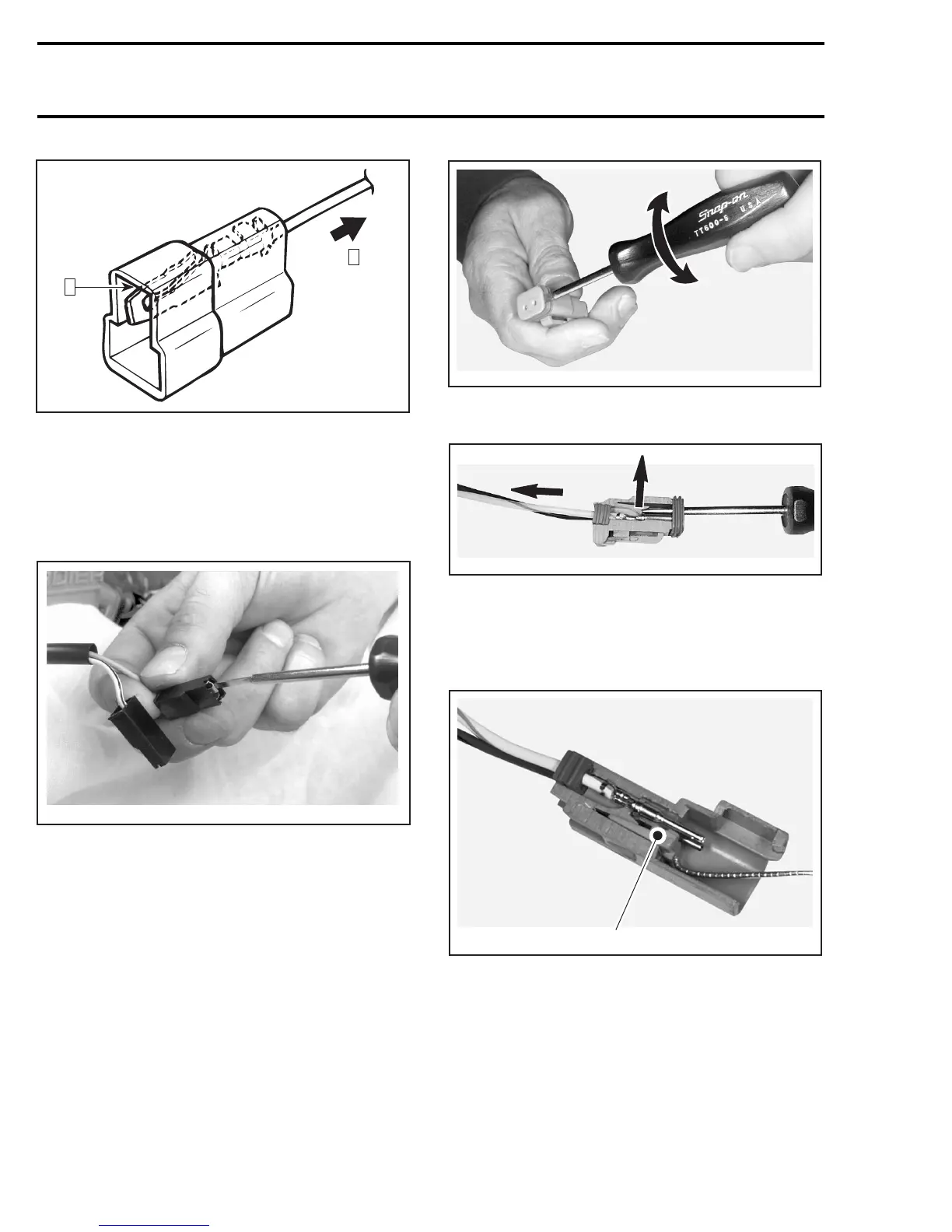

1. Insert screwdriver here
2. Pull this side
Locking Receptacle Connector
To remove:
– Insert tool Snap-on TT 600-5 in access opening
then pull housing toward wire side.
A06E1QA
Waterproof Connector Housing
Female Connector Housing
To remove:
– Insert tool Snap-on TT 600-5 under lock and
twist to lift it.
A01E31A
– Pry tab to free connector then pull wire out of
housing.
A01E32A
FEMALE CONNECTOR HOUSING — CUT-AWAY
Male Connector Housing
To remove:
– Using a small hook, pull out the lock.
A01E33A
1
1. Lock
490 mmr2005-102
