Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
A01E34A
1

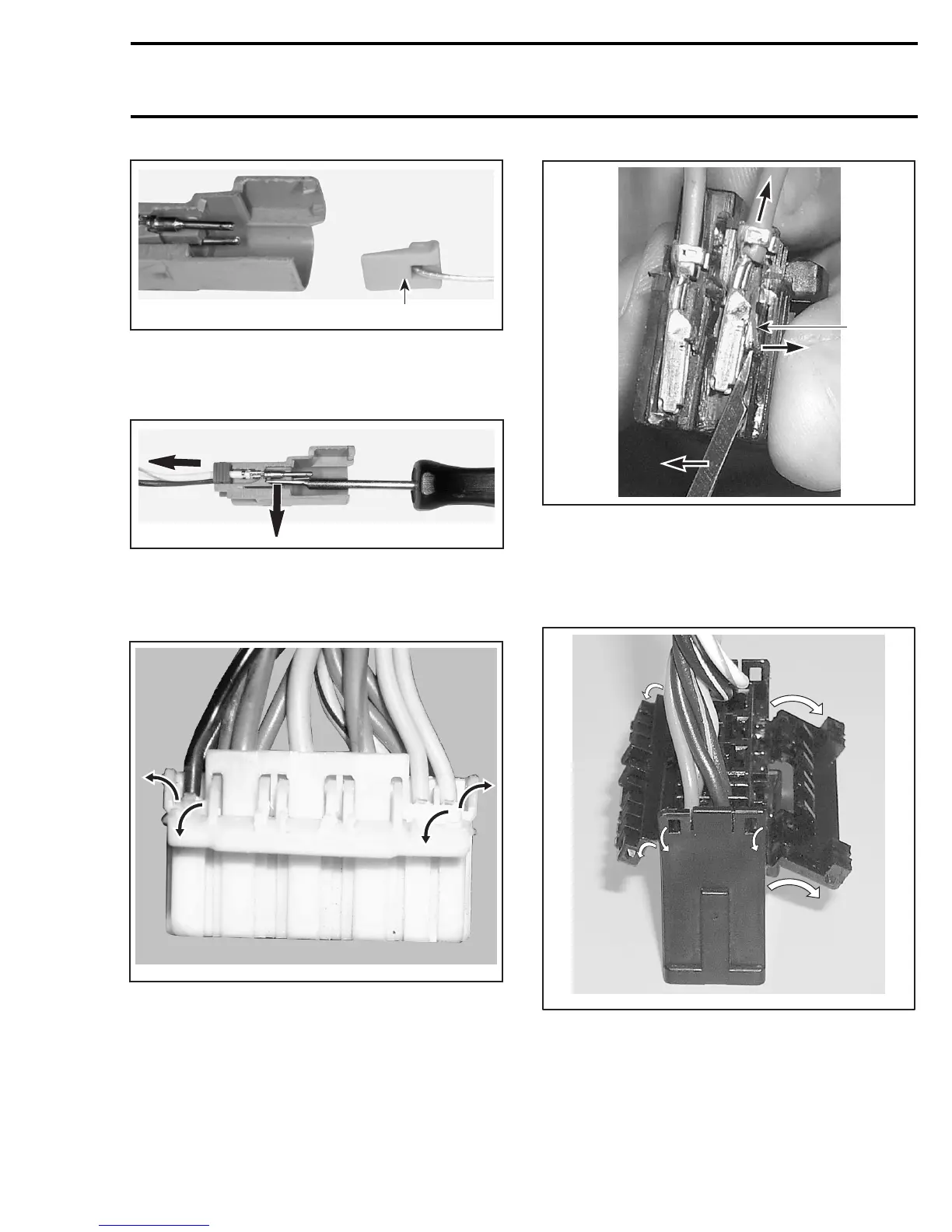

1. Lock
– Pry tab to free connector then pull wire out of
housing.
A01E35A
MALE CONNECTOR HOUSING — CUT-AWAY
Multilock Connector Housing
Female Connector Housing
A32Z01A
To remove:
– Insert tool AMP- 755430-2 under lock and twist
to lift it.
1
A32Z02A
FEMALE CONNECTOR HOUSING — CUT-AWAY
1. Lock
Receptacle connectors can be removed from fe-
male housing with sharp head pin.
Male Connector Housing
A32Z04A
To remove:
– Insert tool AMP-755430-2 under lock and twist
to lift it.
mmr2005-102 491
