Section 08 DRIVE SYSTEM
Subsection 07 (DRIVE AXLE)
ASSEMBLY
DriveAxleandSprocket

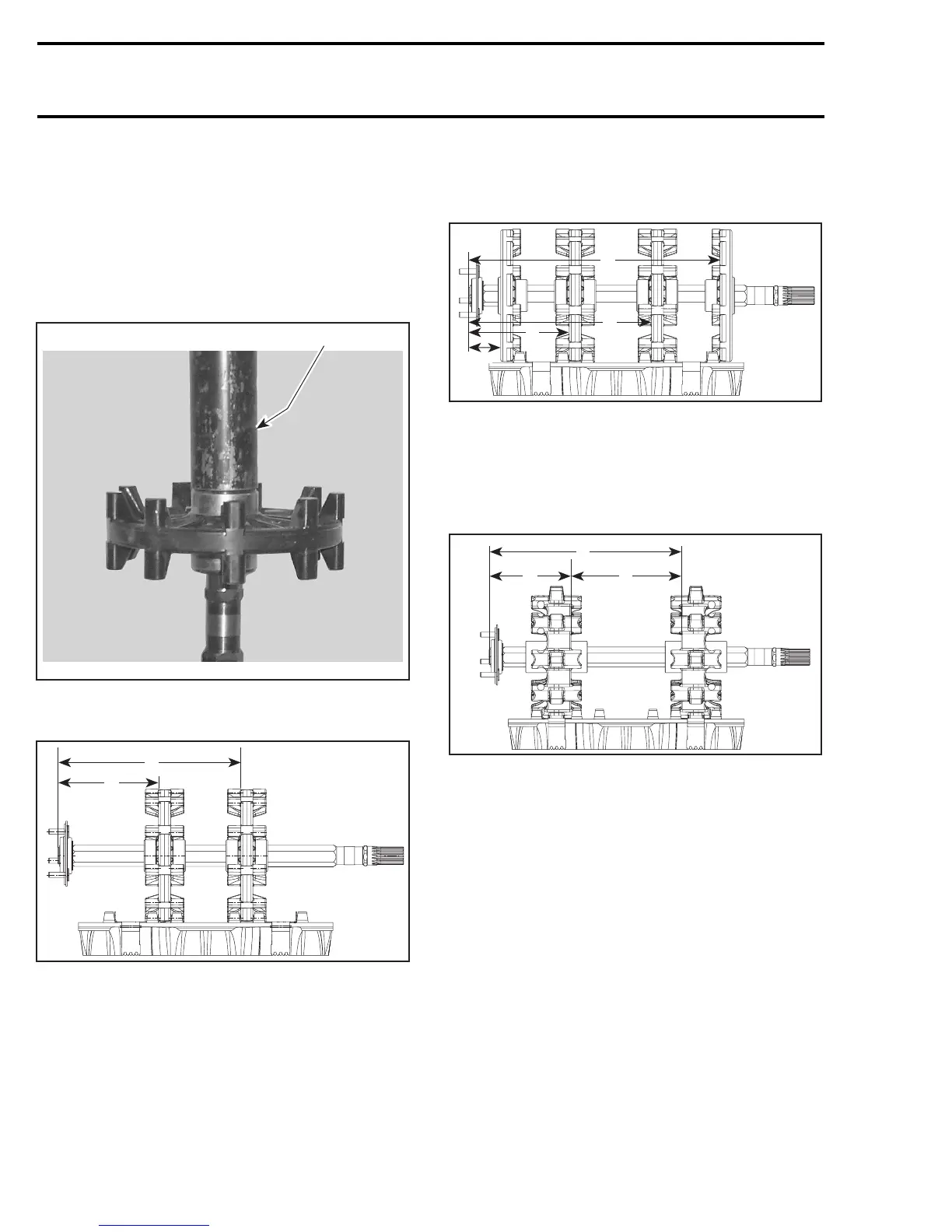

To assemble press fit sprockets no. 6 and no. 7,
use a press and a suitable pipe as illustrated.
Sprockets must be assembled according to the
following dimensions measured from drive axle
end.
1
A33D0MA
1. Pipe
All Fan-cooled Models
A33D1TA
A
B
MEASURE FROM END OF DRIVE SHAFT
A. 150.8 mm (5.937 in)
B. 273.8 mm (10.790 in)
GSX Limited and Sport, GTX Limited
and Sport, MX-Z Adrenaline, Renegade,
Renegade X and Trail Models
A33D1UA
A
B
C
D
MEASURE FROM END OF DRIVE SHAFT
A. 48.3 mm (1.902 in)
B. 150.8 mm (5.937 in)
C. 273.8 mm (10.780 in)
D. 376.3 mm (14.815 in)
MX-Z X, Summit Adrenaline and
Summit X Models
A33D1VA
A
C
B
MEASURE FROM END OF DRIVE SHAFT
A. 132.2 mm (5.205 in)
B. 178.1 mm (7.0118 in)
C. 310.4 mm (12.220 in)
Ensure to align indexing marks of each sprocket
when assembling.
372 mmr2005-092
