Section 03 ENGINES
Subsection 05 (TOP END)

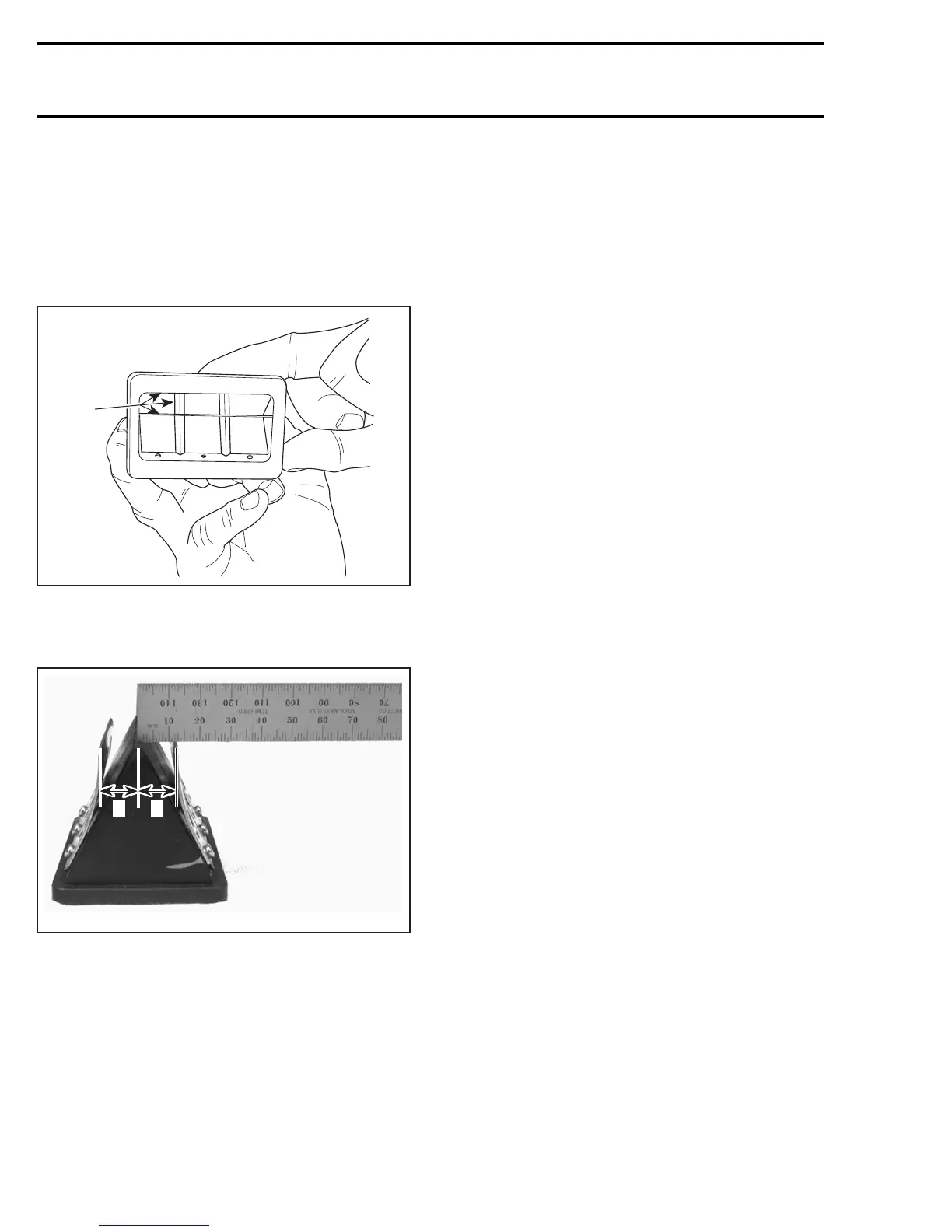

With blade stopper no. 13 removed, check reed
valve for proper tightness. There must be no play
between blade and valve body when exerting a
finger pressure on blade at blade stopper location.
In case of a play, turn blade upside down and
recheck. If there is still a play, replace blade and/or
valve body.
A06C0FA
1
1. No play
Check distance from blade stopper inner edge and
distance from center of reed valve block.
A06C36A
A A
TYPICAL
A. 14.75 - 0, + 0.75 mm (.580 - 0, + .030 in)
Bent blade stopper as required to obtain the prop-
er distance.
Blade stoppers may slightly interfere with cylinder
during installation. Adjusted distance will be re-
duced automatically upon installation.
92 mmr2005-072
